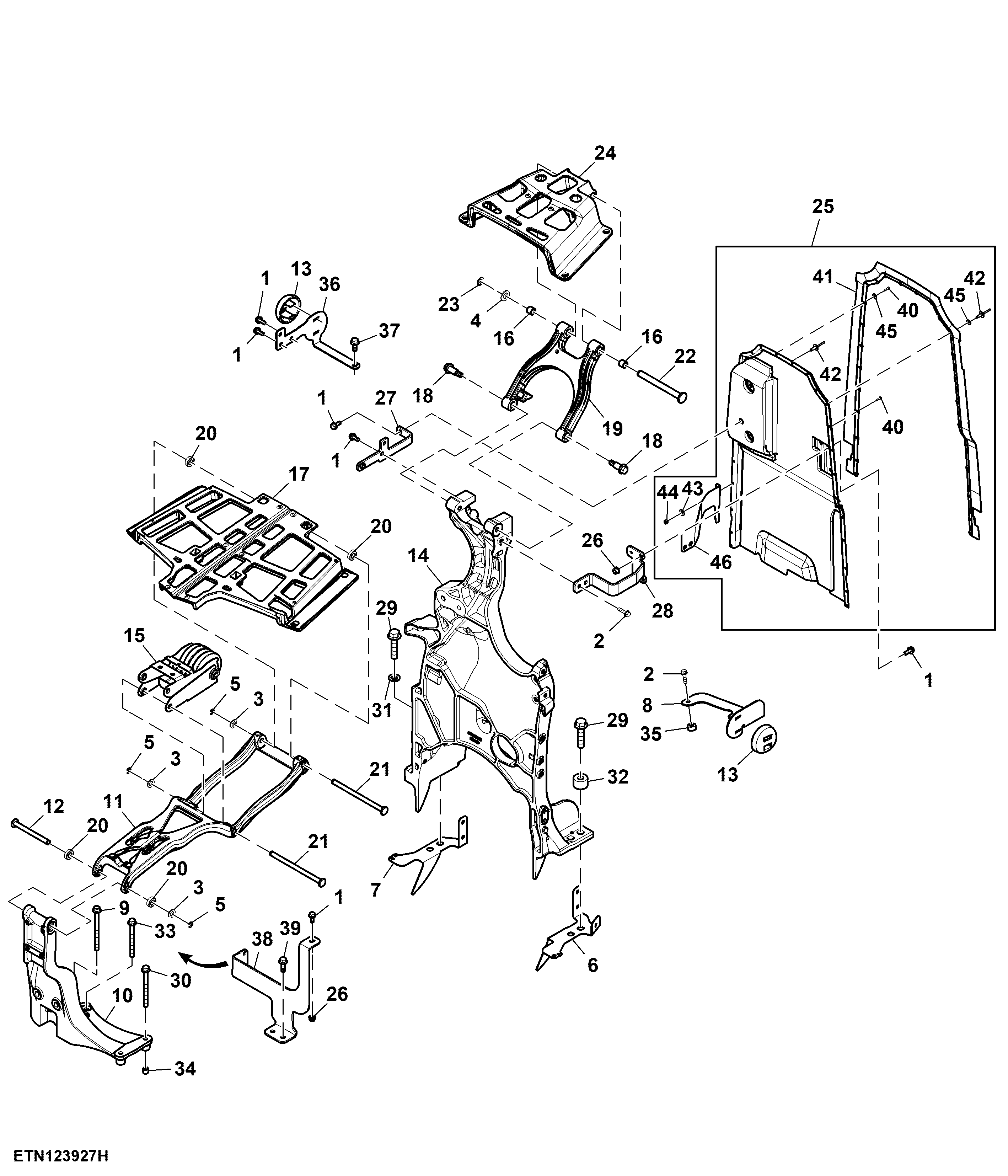

Brackets and Supports, Rear Hood, FT4, 6.8 L

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	KK53905	11	Screw	M8 X 20
1	19M9836	11	Screw	M8 X 20
2	KK53935	3	Screw	M8 X 30
2	19M9838	3	Screw	M8 X 30
3	24M7345	4	Washer	13.500 X 24 X 2.500 mm
4	24M7617	1	Washer	17 X 30 X 3 mm
4	KK54928	1	Washer	17 X 30 X 3 mm (0.669" X 1.181" X 0.118")
5	40M7059	4	Snap Ring	-
6	KK20332	1	Shield	Flywheel LH
7	KK17418	1	Shield	Flywheel RH
8	KK16867	1	Bracket	-
9	19M7898	1	Screw	M10 X 130
10	KK20690	1	Support	SUB FOR N407735
11	R288350	1	Linkage	-
12	R289234	1	Pin Fastener	-
13	R311453	2	Guide	ORDER R555082
13	R555082	2	Guide	-
14	KK21922	1	Support	Rear Hood
15	RE572574	1	Spring	Front Arm SUB FOR RE556542
16	R183008	2	Bushing	-
17	R549721	1	Linkage	Front Top Hood
18	R259541	2	Bolt	-
19	R329837	1	Linkage	Rear Arm
20	RE191783	4	Ball Bearing	-
21	R289232	3	Pin Fastener	-
22	R297389	1	Pin Fastener	-
23	F2863R	1	Snap Ring	-
24	R294777	1	Hinge	Rear Hood
25	AKK29539	1	Barrier	SUB FOR RE572454 AND RE564059
26	KK54762	3	Lock Nut	M8
26	14M7722	3	Lock Nut	M8
27	RE583888	1	Bracket	RH
28	R547113	1	Bracket	LH
29	19M9858	4	Screw	M16 X 70
29	KK54374	4	Screw	M16 X 70
30	19M9874	2	Screw	M10 X 120
30	KK54260	2	Screw	M10 X 120
31	24M7338	2	Washer	17 X 30 X 3 mm
32	N406364	2	Bushing	-
33	19M9852	1	Screw	M10 X 110
33	KK54250	1	Screw	M10 X 110
34	34M7190	2	Spring Pin	14 X 14 mm
35	CQ54821	1	Spacer	-
36	KK21047	1	Bracket	-
37	19M9845	1	Screw	M10 X 25
37	KK54203	1	Screw	M10 X 25
38	KK25423	1	Bracket	-
39	19M9370	2	Screw	M10 X 30
39	KK54209	2	Screw	M10 X 30
40	19M9224	5	Cap Screw	M4 X 14
41	R292644	1	Seal	-
42	R538298	25	Rivet	3.960 mm (5/32")
43	24H1721	2	Washer	13/64" X 15/32" X 0.049"
44	14M7100	2	Nut	M4
45	24M7138	26	Washer	5.300 X 15 X 1 mm
46	R542174	1	Bracket	-

Brackets and Supports, Rear Hood, FT4, 6.8 L
