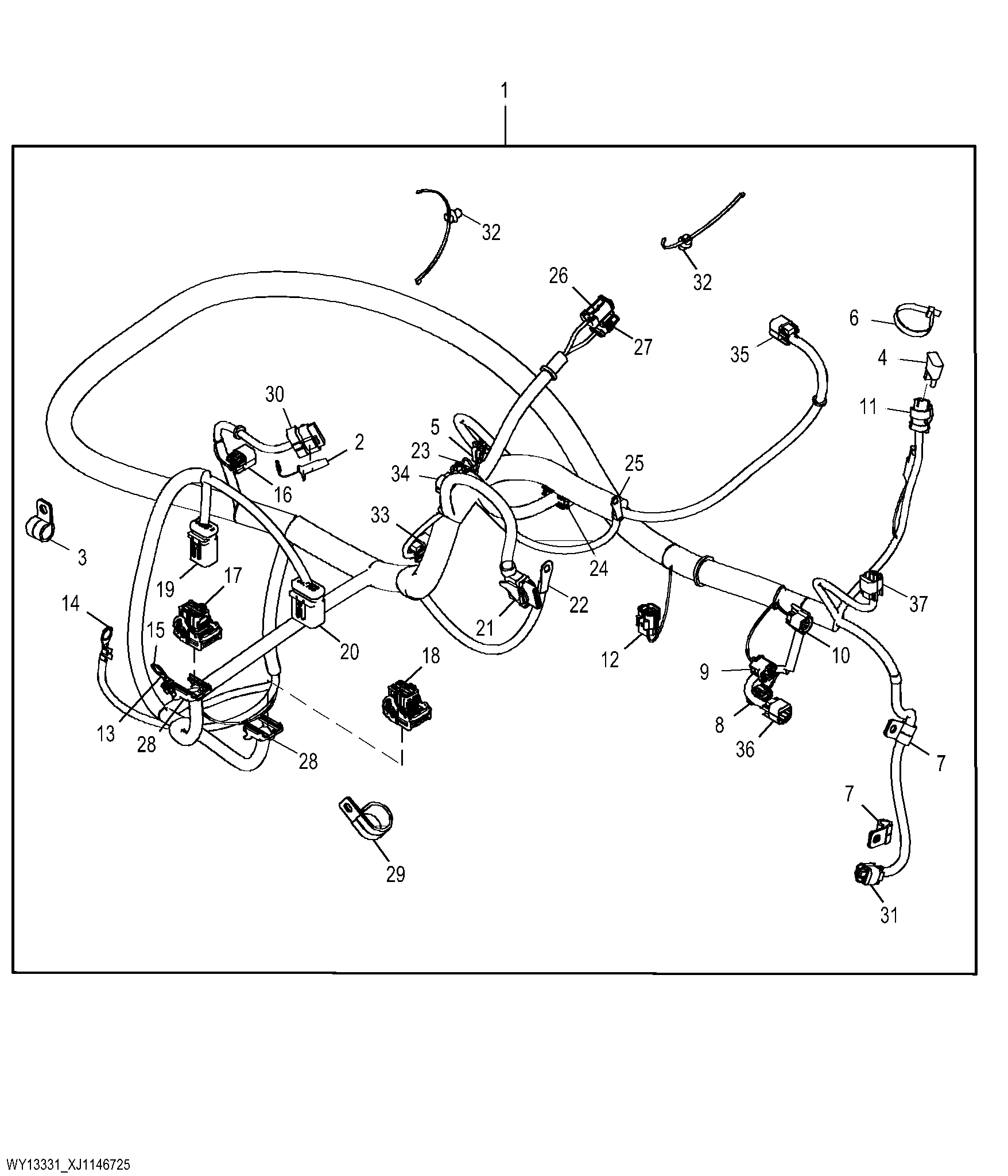

Engine Wiring Harness (Engine 6068HT087-RE551769)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WY17203	1	Wiring Harness	Engine Power WRG Harness
2	T209627	12	Clamp	SUB FOR WY19448
3	57M8633	7	Elec. Connector Accessory	SUB FOR WY19453
4	57M8016	1	Elec.Connect Locking Device	SUB FOR WY19491
5	57M8624	2	Elec.Connect Locking Device	SUB FOR WY19452
6	57M9597	1	Elec.Connect Locking Device	SUB FOR WY17472
7	57M8417	1	Elec.Connect Locking Device	SUB FOR WY19493
8	T349156	1	Clamp	SUB FOR T316931
9	AT103399	1	Diode	SUB FOR WY22148
10	57M9787	1	Elec. Connector Housing	-
11	57M9726	1	Elec. Connector Housing	-
12	T348062	1	Clamp	SUB FOR T316928
13	57M8601	1	Elec. Connector Housing	Manifold Air Temperature, SUB FOR WY17463
14	57M8625	1	Elec. Connector Housing	Manifold Air Pressure Sensor, SUB FOR WY17465
15	57M8400	1	Electrical Connector Assy	Fuel Temperature, SUB FOR WY17474
16	57M8403	1	Elec. Connector Housing	High Pressure Pump, SUB FOR WY17475
17	57M9726	1	Elec. Connector Housing	AC Compressor Solenoid, SUB FOR WY10959
18	57M8407	1	Elec. Connector Housing	Rail Pressure Sensor, SUB FOR WY17473
19	57M9952	1	Elec. Connector Terminal	Starter(+), SUB FOR WY19512
20	57M10244	1	Elec. Connector Terminal	SUB FOR WY19565
21	57M8612	1	Elec. Connector Housing	Exhaust Temperature, SUB FOR WY17468
22	57M10606	1	Elec. Connector Housing	ECU Connector J3, SUB FOR WY21701
23	57M10609	1	Elec. Connector Housing	ECU Connector J1, SUB FOR WY21700
24	57M9760	1	Elec. Connector Housing	SUB FOR 57M9188 AND WY10933
25	57M9768	1	Elec. Connector Housing	Main Frame Connection, SUB FOR 57M9193 AND WY10942
26	57M8960	1	Elec. Connector Housing	Alternator, SUB FOR WY18022
27	57M9945	1	Elec. Connector Terminal	Alternator(+), SUB FOR WY21699
28	57M8636	1	Elec. Connector Housing	Fuel Injector Connector, SUB FOR WY17466
29	57M9944	1	Elec. Connector Terminal	Alternator(-), SUB FOR WY11950
30	57M8635	1	Elec. Connector Housing	Variable Geometry Turbocharger, SUB FOR WY18024
31	57M8542	1	Elec. Connector Housing	Turbo Speed Sensor, SUB FOR WY18023
33	57M8552	1	Elec. Connector Housing	EGR Valve, SUB FOR WY17471
37	T209627	1	Clamp	SUB FOR WY19448
48	57M8601	1	Elec. Connector Housing	Compressor Inlet Temperature
49	57M8601	1	Elec. Connector Housing	Coolant Temperature
50	57M8601	1	Elec. Connector Housing	Engine Cam Sensor
51	57M8601	1	Elec. Connector Housing	Engine Crank Sensor
52	57M8601	1	Elec. Connector Housing	Manifold Air Temperature
53	57M8625	1	Elec. Connector Housing	Engine Oil Pressure
54	57M9952	1	Elec. Connector Terminal	Starter(-)

Engine Wiring Harness (Engine 6068HT087-RE551769)

Нет текстового описания
