Открытый узел

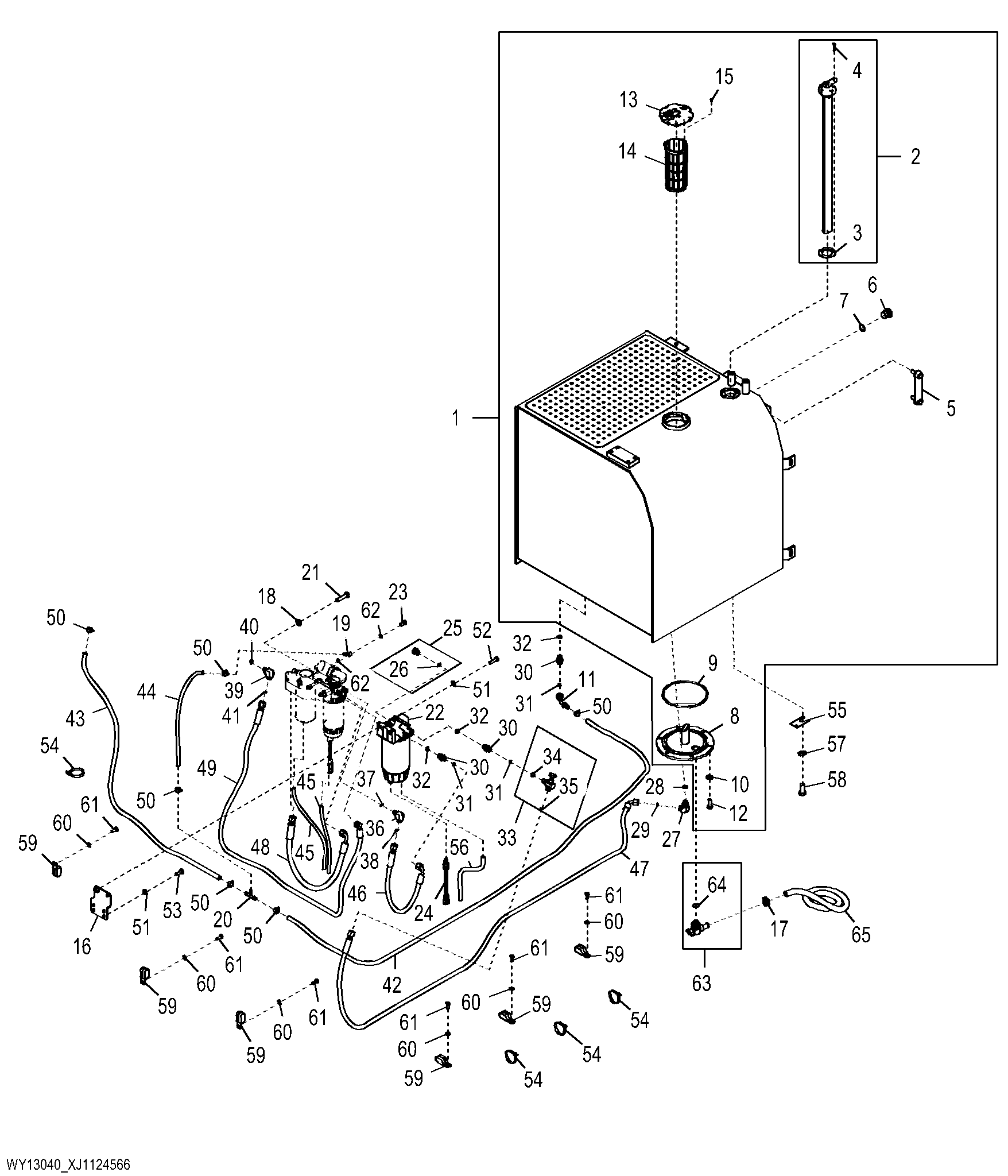

Fuel System ( - 000158)

Fuel System ( - 000158)

Fuel System ( - 000158)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Fuel System ( - 000158)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT451924	1	Fuel Tank	LF, SUB FOR AT442192, WY16653
2	WY16836	1	Fuel Sender	-
3	WY20054	1	Gasket Kit	-
4	19M7317	5	Screw	M5 X 30, SUB FOR WY16839
5	AT227279	1	Level Gauge	SUB FOR WY16490
6	64M1008	1	Drain Plug	-
7	51M7047	1	O-Ring	23.600 X 2.900 mm
8	AT439485	1	Cover	USE WITH AT442192
9	T351946	1	O-Ring	USE WITH AT442192, SUB FOR WY15934
10	24M7240	6	Washer	13 X 25 X 3 mm
11	RE502954	1	Elbow Fitting	-
12	19M8011	6	Cap Screw	M12 X 30
13	AT449290	1	Filler Cap	USE WITH AT442192
13	AT342385	1	Filler Cap	USE WITH WY16653
14	AT429690	1	Screen	USE WITH AT442192
14	AT345635	1	Strainer	USE WITH WY16653; SUB FOR WY18101
15	21M7651	3	Screw	M2.500 X 10
16	AT445668	1	Bracket	SUB FOR WY15864
17	T184924	1	Hose Clamp	-
18	24M7240	2	Washer	13 X 25 X 3 mm
19	R503333	1	Adapter Fitting	-
20	T120343	1	Tee Fitting	SUB FOR WY17066
21	19M7361	2	Cap Screw	M12 X 50
22	AT387543	1	Filter	Severe Duty Filter 24 V, INCLUDES AT365870 AND AT387545
22	AT365870	1	Filter Element	Primary Fuel Filter Not Illustrated
22	AT387545	1	Sediment Bowl	Not Illustrated
23	38M7009	1	Hollow Screw	-
24	AT387540	1	Chemical Sensor	Water in Fuel Sensor
25	WY17818	2	Fitting Plug	-
26	51M7042	1	O-Ring	13.300 X 2.200 mm, SUB FOR WY11832
27	38H5035	1	Elbow Fitting	-
28	51M7042	1	O-Ring	13.300 X 2.200 mm, SUB FOR WY11832
29	T77613	1	O-Ring	-
30	38H5037	3	Adapter Fitting	-
31	T77613	3	O-Ring	-
32	51M7042	3	O-Ring	13.300 X 2.200 mm
33	AT444372	1	Drain Valve	-
34	51M7042	1	O-Ring	13.300 X 2.200 mm
35	T77613	1	O-Ring	-
36	38H5022	1	Elbow Fitting	-
37	51M7040	1	O-Ring	9.300 X 2.200 mm
38	T77613	1	O-Ring	-
39	38H5016	1	Elbow Fitting	-
40	51M7041	1	O-Ring	11.300 X 2.200 mm
41	T77613	1	O-Ring	-
42	-	1	Part 46	CTL 2500 mm, MF TY22552
43	-	1	Part 47	To Engine, CTL 1200 mm, MF TY22552
44	-	1	Part 48	CTL 460 mm, MF TY22551
45	-	2	Part 49	Filter Outlet, CTL 400 mm, MF TY22551
46	AT417164	1	Hydraulic Hose	-
47	AT417193	1	Hydraulic Hose	-
48	AT417194	1	Hydraulic Hose	-
49	AT417195	1	Hydraulic Hose	To Engine
50	WB130646	6	Hose Clamp	-
51	24M7239	6	Washer	10.700 X 21 X 2.500 mm
52	19M7550	2	Cap Screw	M10 X 35
53	19M7402	4	Cap Screw	M10 X 25
54	T342553	6	Tie Band	-
55	WY21765	6	Shim	TK = 1.0 mm
56	-	1	Part 60	Filter Outlet, CTL 400 mm, MF TY22324
57	24M7338	6	Washer	17 X 30 X 3 mm
58	19M8035	6	Cap Screw	M16 X 35
59	T349976	8	Clamp	SUB FOR WY21896
60	24M7238	8	Washer	8.700 X 17 X 2 mm
61	19M7881	8	Screw	M8 X 20
62	R62107	2	Washer	-
63	AT437242	1	Drain Valve	-
64	51M7045	1	O-Ring	19.300 X 2.200 mm
65	-	1	Part 69	Fuel Tank Outlet, CTL 1000 mm, MF TY22328
