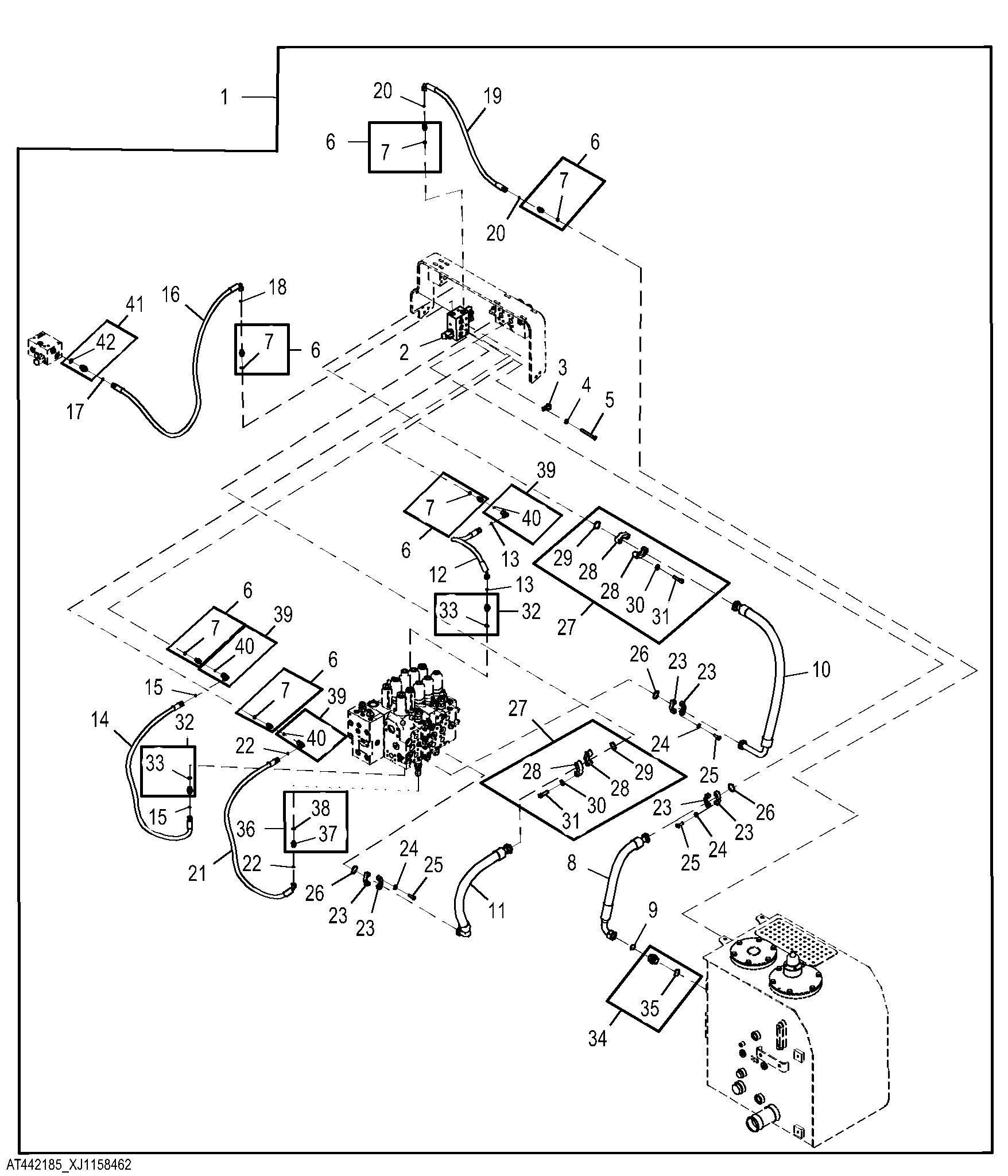

Boom Auxiliary Hydraulic Lines - Continued (For China)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT442185	1	Tube Kit	WHOLE GOODS
2	WY19472	1	Hydr./Pilot Control Valve	Components on Separate Page Pilot Auxiliary
3	T349156	1	Clamp	-
4	24M7239	2	Washer	10.700 X 21 X 2.500 mm
5	19M8183	2	Cap Screw	M10 X 90
6	WY15248	6	Fitting	-
7	51M7041	1	O-Ring	11.300 X 2.200 mm
8	AT419107	1	Hydraulic Hose	Auxiliary Return, INCLUDES 51M7112
9	51M7112	1	O-Ring	26 X 2 mm
10	AT419099	1	Hydraulic Hose	NLA; ORDER AT467081
10	AT467081	1	Hydraulic Hose	-
11	AT467080	1	Hydraulic Hose	-
11	AT419096	1	Hydraulic Hose	NLA; ORDER AT467080
12	AT427792	1	Hydraulic Hose	Auxiliary Pilot, INCLUDES (2) 51M7106
13	51M7106	2	O-Ring	7.500 X 1.500 mm
14	WY18630	1	Hydraulic Hose	Auxiliary Pilot, INCLUDES (2) 51M7106
15	51M7106	2	O-Ring	7.500 X 1.500 mm
16	AT416524	1	Hydraulic Hose	Auxiliary Pilot, INCLUDES 51M7107 AND 51M7106
17	51M7107	1	O-Ring	9 X 1.500 mm
18	51M7106	1	O-Ring	7.500 X 1.500 mm
19	WY18628	1	Hydraulic Hose	Auxiliary Tank, INCLUDES (2) 51M7106
20	51M7106	2	O-Ring	7.500 X 1.500 mm
21	AT419109	1	Hydraulic Hose	Auxiliary Pilot, INCLUDES (2) 51M7106
22	51M7106	2	O-Ring	7.500 X 1.500 mm
23	H61354	6	Flange Fitting	-
24	24M7239	12	Washer	10.700 X 21 X 2.500 mm
25	19M7662	12	Cap Screw	M10 X 30
26	U12037	3	O-Ring	-
27	AT423573	2	Flange Kit	-
28	T107068	2	Flange Fitting	-
29	T78313	1	O-Ring	-
30	24M7240	4	Washer	13 X 25 X 3 mm
31	19M8273	4	Screw	M12 X 45
32	WY21732	2	Adapter Fitting	-
33	T315337	1	O-Ring	-
34	WY16793	1	Fitting	-
35	51M7048	1	O-Ring	29.600 X 2.900 mm
36	WY17190	1	Fitting	-
37	WB128740	1	Fitting	-
38	T315309	1	O-Ring	-
39	WY22071	3	Elbow Fitting	-
40	51M7106	1	O-Ring	7.500 X 1.500 mm
41	WY17851	1	Fitting	-
42	51M7043	1	O-Ring	15.300 X 2.200 mm

Boom Auxiliary Hydraulic Lines - Continued (For China)
