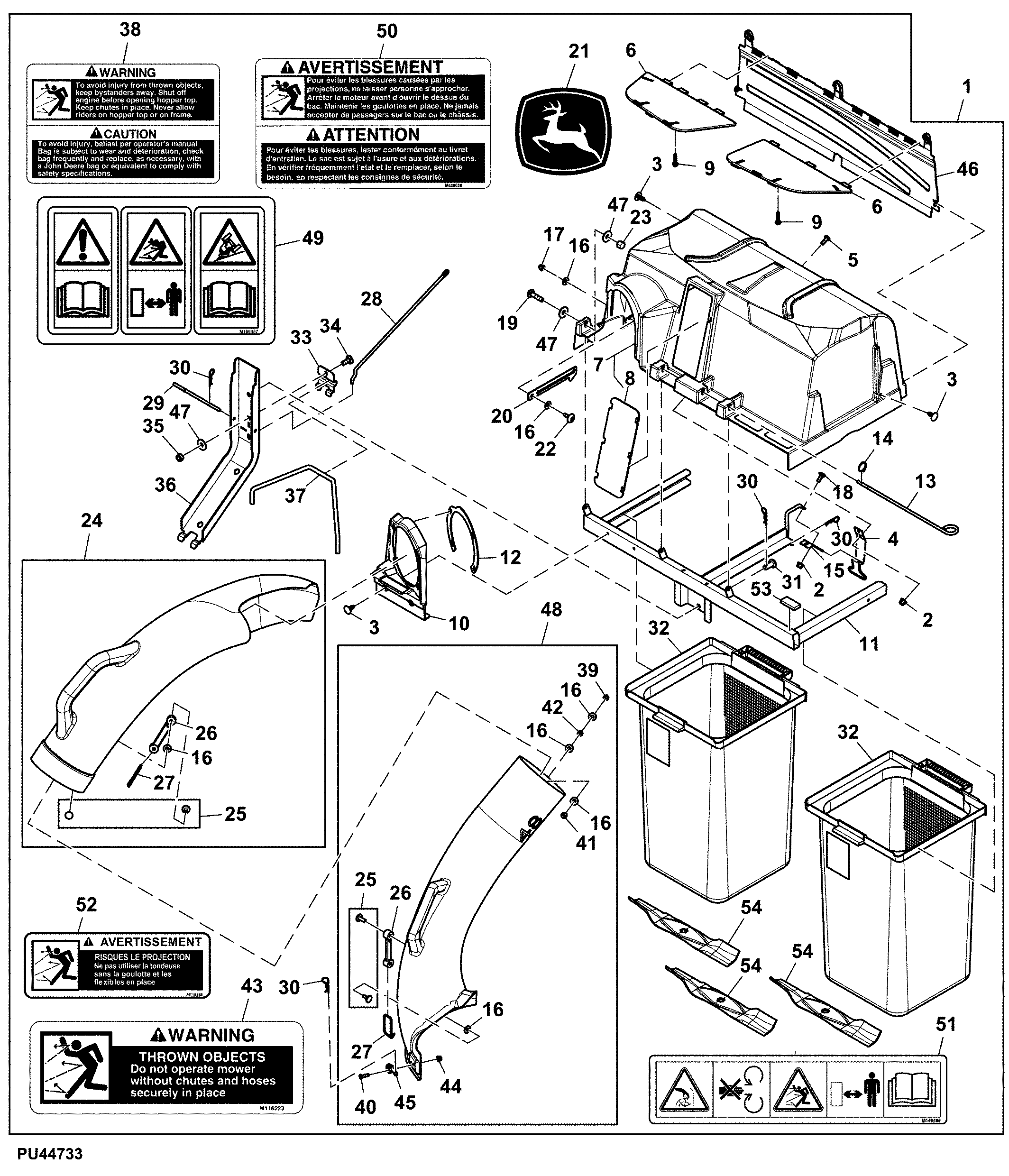

Material Collection System, 2-Bag, 6.5 bushel, 48 inch, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BUC10286	1	Material Collection System	-
2	14M7397	3	Lock Nut	M6
3	GX10571	4	Plug	-
4	M142410	1	Latch	-
5	21M7292	2	Screw	M6 X 16
6	M88709	2	Screen	-
7	AUC16193	1	Cover Kit	Hopper
8	M93074	1	Window	Hopper
9	GX24490	4	Screw	-
10	UC16746	1	Guide	Inlet
11	AUC14840	1	Frame	-
12	UC26157	1	Seal	-
13	M143104	1	Pin	-
14	M88183	1	Ring	-
15	UC21522	1	Bracket	Striker
16	M88012	7	Washer	-
17	PT10333	1	Nut	-
18	03M7221	1	Bolt	M6 X 16
19	M112804	1	Screw	-
20	UC22467	1	Bracket	Hopper
21	JD5774	1	Label	-
22	M163626	1	Screw	-
23	UC28365	1	Nut	-
24	GY20159	1	Chute	Upper
25	GY00177	2	Rivet	-
26	M67099	2	Strap	-
27	M67100	2	Hook	-
28	UC16706	1	Rod	-
29	GX20492	1	Pin Fastener	-
30	J16931	4	Pin	-
31	45M7111	1	Pin Fastener	10 X 22 mm
32	AUC12279	2	Grass Catcher	-
33	GX20491	1	Bracket	Cargo Mount
34	03M7184	1	Bolt	M8 X 20
35	14M7166	1	Lock Nut	M8
36	UC19248	1	Post	-
37	UC26126	1	Rod	Hopper Support
38	M151187	1	Label	Warning, Thrown Object
39	14M7165	1	Lock Nut	M6
40	19M7372	2	Cap Screw	M5 X 16
41	21M7247	1	Screw	M6 X 35
42	GX10262	1	Spacer	-
43	M118223	1	Label	Warning, Thrown Object
44	14M7568	2	Lock Nut	M5
45	UC30132	1	Bracket	Lower Chute SUB FOR APPL UC26134
46	UC21803	1	Cover	Divider Wall
47	24M7298	3	Washer	8.400 X 25 X 2 mm
48	AUC17133	1	Chute Kit	Lower
49	M169457	1	Label	Caution, No-Text
50	M129038	1	Label	Warning / Caution, French
51	M149489	1	Label	Warning, Thrown Object, Not for Canada and USA
52	M118468	1	Label	Warning, French
53	GX24388	1	Pad	-
54	GX21785	3	Blade	-

Material Collection System, 2-Bag, 6.5 bushel, 48 inch, Attachment
