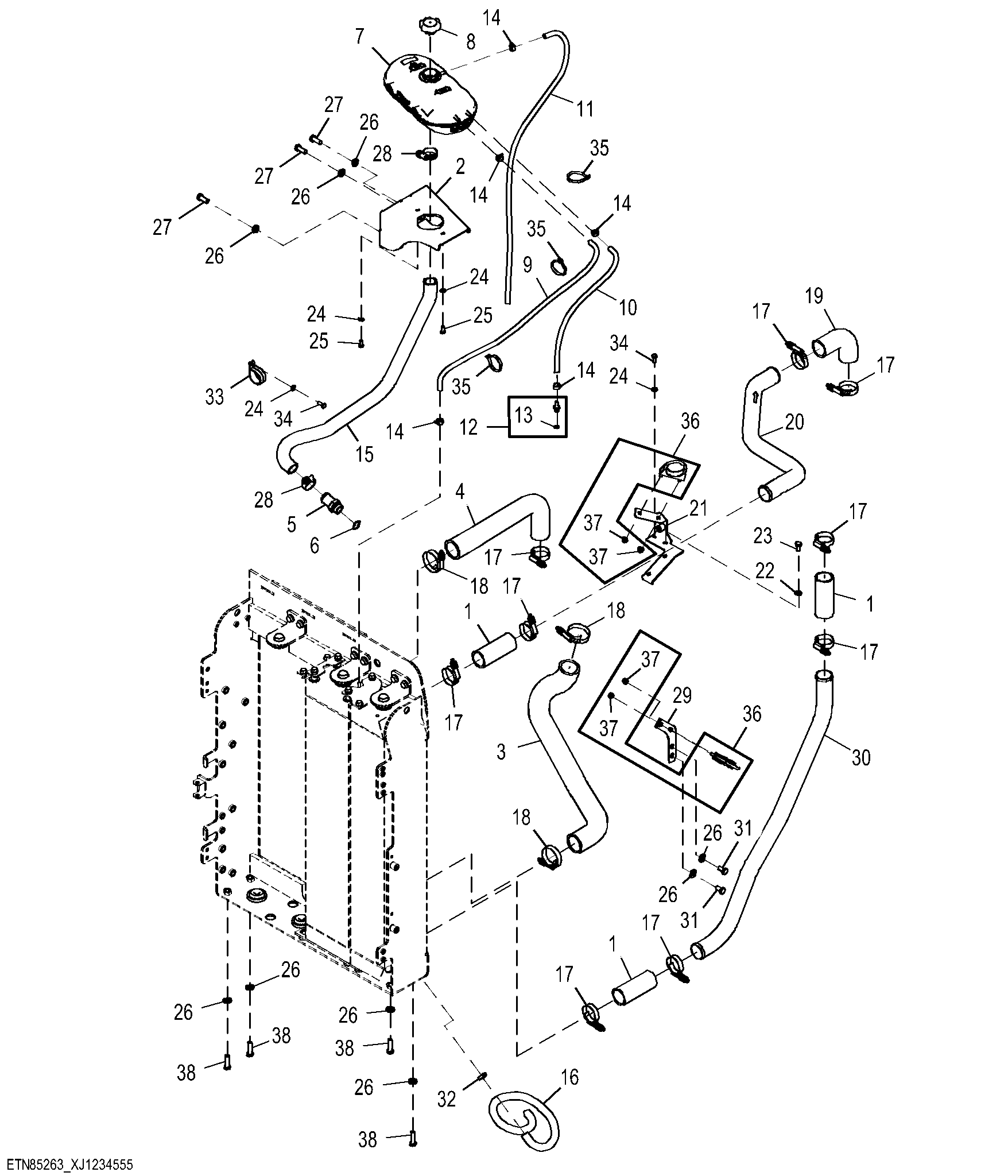

Cooling System Hoses and Fittings, FFD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T371288	3	Hose	-
2	AT418424	1	Bracket	-
3	T422755	1	Radiator Hose	Radiator Lower to Engine, SUB FOR T363049
4	T422756	1	Radiator Hose	Engine to Radiator Upper, SUB FOR T363050
5	T223206	1	Adapter Fitting	-
6	U17409	1	O-Ring	-
7	AT323369	1	Tank	Surge Tank 3.6 L, Two Inlets
8	AT372657	1	Filler Cap	-
9	-	1	Part 9	Surge Tank to Radiator Vent, MAKE FROM TY22566, CTL 960 mm (37.8 in)
10	-	1	Part 10	Surge Tank to Engine Vent, MAKE FROM TY22566, CTL 540 mm (21.2 in)
11	-	1	Part 11	Surge Tank to Vent Line, MAKE FROM TY22566, CTL 1190 mm (46.8 in)
12	AT323961	1	Adapter Fitting	-
13	51M7040	1	O-Ring	9.300 X 2.200 mm
14	T174427	5	Clamp	SUB FOR WB130646
15	T371287	1	Hose	Surge Tank to Water Pump
16	-	1	Part 16	Radiator Drain, MAKE FROM TY22328, CTL 800 mm (31.5 in)
17	WY19915	9	Clamp	-
18	AH170895	3	Clamp	SUB FOR WY17122
19	T372405	1	Hose	To Thermostat, Engine
20	T407781	1	Air Flow Tube	SUB FOR T376996
21	AT480584	1	Bracket	-
22	24M7239	1	Washer	10.700 X 21 X 2.500 mm
23	19M7938	1	Cap Screw	M10 X 20
24	24M7238	4	Washer	8.700 X 17 X 2 mm
25	19M7932	2	Cap Screw	M8 X 16
26	24M7240	9	Washer	13 X 25 X 3 mm
27	19M8011	3	Cap Screw	M12 X 30
28	AN404683	2	Clamp	SUB FOR WY17129
29	AT481704	1	Bracket	-
30	T407780	1	Air Flow Tube	To Turbocharger, SUB FOR T363047
31	19M8017	2	Cap Screw	M12 X 20
32	WB130616	1	Hose Clamp	-
33	T348070	1	Clamp	-
34	19M7881	2	Screw	M8 X 20
35	T342553	3	Tie Band	-
36	WY22019	2	Clamp	-
37	14M7524	2	Flange Nut	M8
38	19M7493	4	Cap Screw	M12 X 40

Cooling System Hoses and Fittings, FFD
