Открытый узел

Control Kit, MTU Telematics and Antenna

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

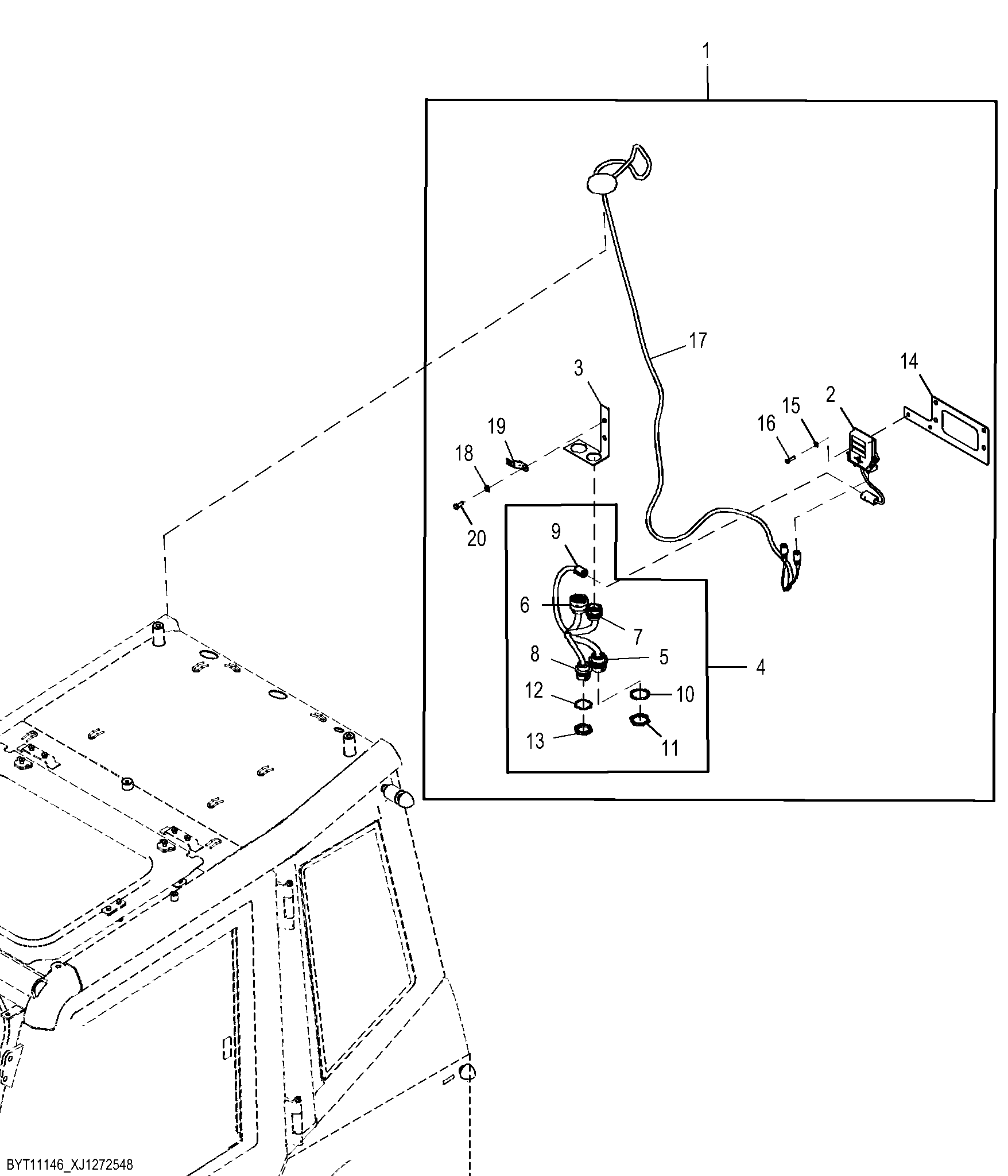

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11146	1	Control Kit	Whole Goods
2	AT485775	1	Electronic Control Unit	Controller MTU, NLA; ORDER AT514520; ALSO ORDER AT517680
2	AT514520	1	Electronic Control Unit	Controller MTU
3	T419772	1	Plate	-
4	AT498859	1	Wiring Harness	Jumper Harness
5	57M7666	1	Elec. Connector Housing	Bulkhead To Cab, MX015
5	R78065	14	Elec. Connector Terminal	-
5	R78069	14	Elec. Connector Cavity Plug	-
5	57M8263	1	Elec. Connector Terminal	-
6	57M7667	1	Electrical Connector Assy	Bulkhead To Vehicle, X015
6	57M8262	3	Elec. Connector Terminal	-
6	R78069	14	Elec. Connector Cavity Plug	-
6	R78066	14	Elec. Connector Terminal	-
7	57M8462	1	Elec. Connector Housing	Bulkhead To Vehicle, X014
7	R78068	2	Elec. Connector Terminal	-
7	57M8260	4	Elec. Connector Terminal	-
7	R78069	2	Elec. Connector Cavity Plug	-
8	57M8461	1	Elec. Connector Housing	Bulkhead To Cab, MX014
8	R78069	1	Elec. Connector Cavity Plug	-
8	57M8569	1	Elec. Connector Terminal	-
9	57M8634	1	Elec. Connector Housing	Modular Telematics Unit, A34
9	R78065	6	Elec. Connector Terminal	-
9	57M8013	1	Elec.Connect Locking Device	-
10	57M7765	1	Lock Washer	-
11	57M8035	1	Nut	-
12	57M9062	1	Elec.Connect Locking Device	-
13	57M8428	1	Electrical Connector Assy	-
14	AT498802	1	Panel	-
15	24M7293	2	Washer	6.500 X 13 X 1.600 mm
16	19M7933	2	Cap Screw	M6 X 25
17	AT486364	1	Antenna	Modular Telematics Unit, USE WITH AT485775
17	AT517680	1	Antenna	Modular Telematics Unit, USE WITH AT514520
18	24M7238	2	Washer	8.700 X 17 X 2 mm
19	57M8736	1	Elec. Connector Accessory	-
20	19M7881	2	Screw	M8 X 20

Control Kit, MTU Telematics and Antenna

Нет текстового описания
