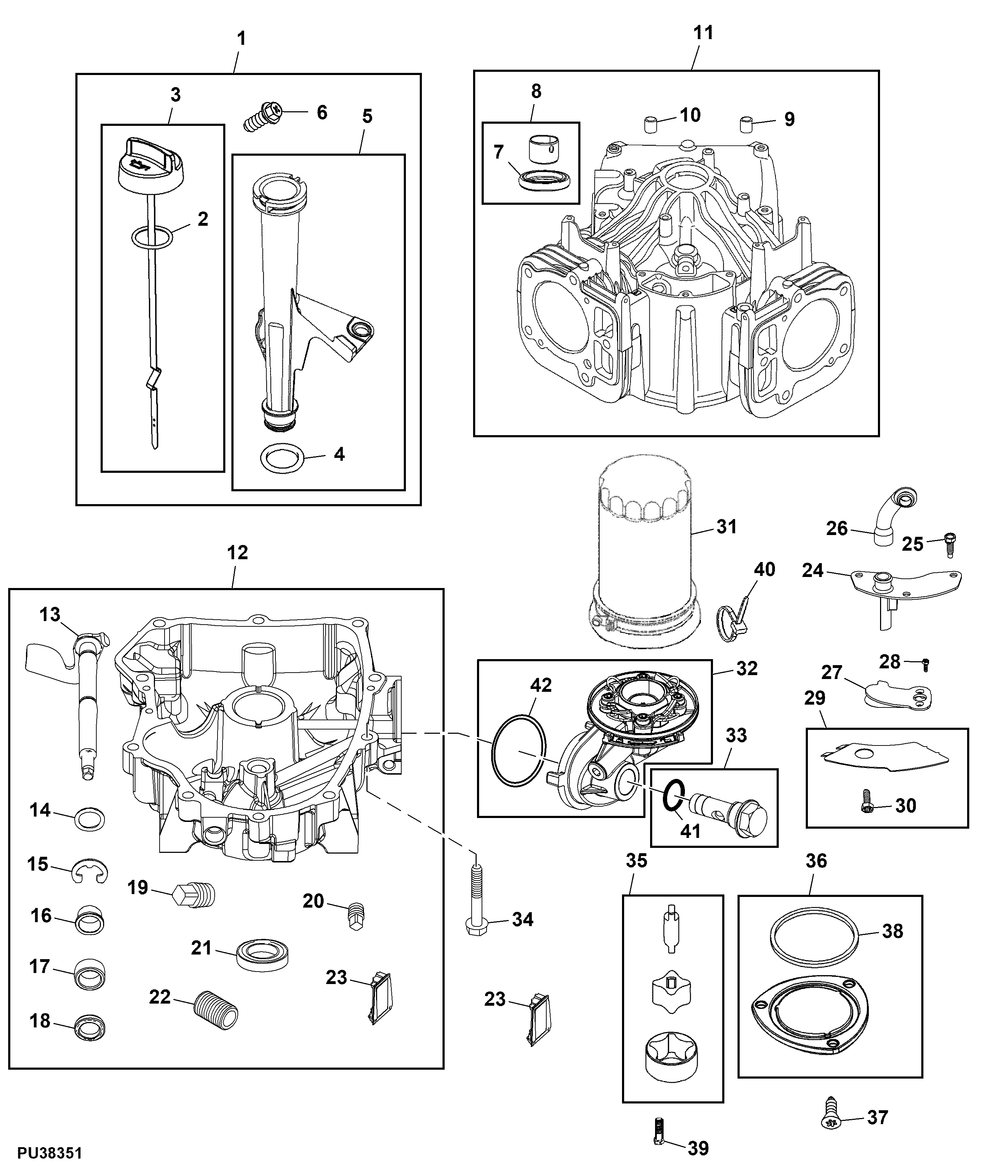

Cylinder Block, Crankcase and Oil Filter

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AUC14663	1	Dipstick Tube	SUB FOR UC11104
2	LG691031	1	O-Ring	-
3	LG691036	1	Dipstick	-
4	LG691032	1	Seal	-
5	UC19917	1	Dipstick Tube	Dipstick SUB FOR LG691037
6	M153266	1	Screw	-
7	LG391086S	1	Seal	-
8	MIA11778	1	Seal Kit	-
9	UC12131	1	Pin	-
10	LG690959	6	Dowel Pin	-
11	MIA13208	1	Cylinder	USE WITH AUC10182
11	MIA13213	1	Cylinder Block	USE WITH AUC14301 OR AUC15562
12	AUC14331	1	Engine Kit	Crankcase
13	LG691045	1	Crank	Governor
14	M142280	1	Washer	-
15	M142286	2	Retainer	-
16	M142282	2	Bushing	-
17	MIU12503	1	Bushing	-
18	MIU11284	1	Seal	Governor Shaft
19	15H623	1	Pipe Plug	3/8", Oil Drain
20	15H638	1	Pipe Plug	1/8"
21	MIU11958	1	Seal	PTO Side
22	LG690954	1	Threaded Nipple	Oil Filter
23	MIU12140	2	Screen	Oil Pump
24	MIU14444	1	Cover	Breather Passage
25	LG691108	4	Screw	-
26	MIU14443	1	Tube	Breather
27	MIU14445	1	Valve	Breather INCLUDES MIU14448
28	MIU14448	1	Screw	-
29	MIA13077	1	Plate	Baffle
30	MIU14464	1	Screw	-
31	AUC12916	1	Oil Filter	For USA, Canada and Mexico
31	AUC13184	1	Oil Filter	For South America
31	AUC14214	1	Oil Filter	For Europe
32	AUC16482	1	Filter Head	Oil Filter SUB FOR AUC14908
33	AUC11008	1	Adapter Fitting	-
34	M142896	10	Screw	-
35	MIU12143	1	Oil Pump	-
36	MIA11464	1	Cover	Oil Pump
37	MIU12142	3	Screw	Oil Pump Cover
38	MIU12153	1	Seal	-
39	LG692125	1	Cap Screw	-
40	R44302	1	Tie Band	-
41	L77584	1	O-Ring	-
42	UC21229	1	Sealing Ring	-

Cylinder Block, Crankcase and Oil Filter
