Dry Box Wiring Harness ( - 111800)

Dry Box Wiring Harness ( - 111800)

Dry Box Wiring Harness ( - 111800)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

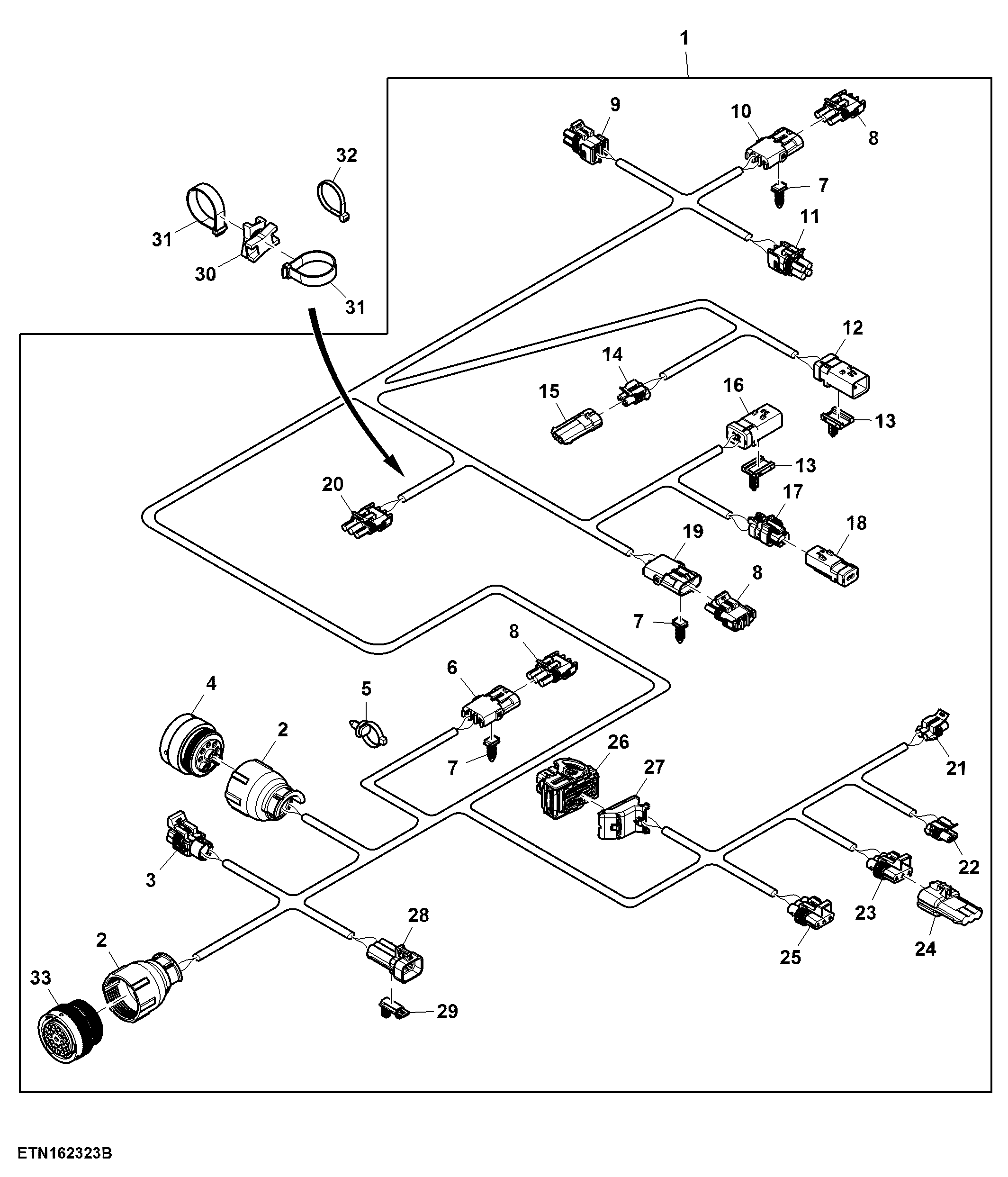

Dry Box Wiring Harness ( - 111800)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK21545	1	Wiring Harness	-
2	57M11899	2	Elec. Connector Accessory	-
3	57M7291	1	Electrical Connector Assy	-
3	57M7260	1	Elec. Connector Housing	CAN Terminator
4	57M12967	1	Elec. Connector Housing	Bulkhead to Chassis 2
5	RE258807	14	Tie Band	-
6	R78054	1	Electrical Connector Assy	Conveyor 1 Speed Sensor
7	57M9555	3	Clip	-
8	RE12364	2	Electrical Connector Assy	-
9	RE42193	1	Electrical Connector Assy	Bin Sensor 2
10	R78054	1	Electrical Connector Assy	Conveyor 2 Speed Sensor
11	RE42193	1	Electrical Connector Assy	Bin Sensor 1
12	57M9746	1	Elec. Connector Housing	LH Warn Stop Tail
12	57M9839	1	Elec. Connector Accessory	-
13	57M9939	2	Elec. Connector Accessory	-
14	57M7254	1	Elec. Connector Housing	License Plate Lamp
15	57M7256	1	Elec. Connector Housing	-
16	57M9746	1	Elec. Connector Housing	RH Warn Stop Tail
16	57M9839	1	Elec. Connector Accessory	-
17	57M9726	1	Elec. Connector Housing	Rear Beacon Light
17	57M9837	1	Elec. Connector Accessory	-
18	57M9730	1	Elec. Connector Housing	-
19	R78054	1	Electrical Connector Assy	Conveyor Speed Sensor
20	57M10924	3	Elec. Connector Terminal	-
20	57M10489	3	Elec. Connector Cable Seal	-
20	RE12364	1	Electrical Connector Assy	Spinner Speed
21	57M7254	1	Elec. Connector Housing	Enable Valve
21	57M9712	1	Elec. Connector Accessory	-
22	57M7254	1	Elec. Connector Housing	Spinner Prop Valve
22	57M9712	1	Elec. Connector Accessory	-
23	57M7280	1	Elec. Connector Housing	Conveyor 2
23	57M7307	1	Electrical Connector Assy	-
23	57M8325	1	Electrical Connector Assy	-
24	57M7305	1	Elec. Connector Housing	-
25	57M7280	1	Elec. Connector Housing	Conveyor 1
25	57M7274	1	Elec. Connector Accessory	-
26	57M10614	1	Elec. Connector Housing	Dry Rate Controller
27	57M10613	1	Elec. Connector Housing	-
28	57M7263	1	Elec. Connector Housing	CAN Chassis Interconnect
28	57M7291	1	Electrical Connector Assy	-
29	57M10234	1	Clip	-
30	H77698	17	Tie Band	-
31	H113197	2	Tie Band	-
32	AN209168	1	Swivel	-
33	57M12041	1	Elec. Connector Housing	Bulkhead to Chassis 1
