Wiring Harness - Main Hydraulic Valve Block

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9061	1	Elec.Connect Locking Device	-
1	57M8035	1	Nut	-
1	AT262976	1	Connector	VALVE BLOCK
2	57M7534	1	Elec. Connector Housing	ACCUMULATOR VALVE
2	57M7620	1	Electrical Connector Assy	-
3	57M7796	1	Elec. Connector Housing	HEADER LIFT CYLINDER PRESSURE SENSOR
4	57M7309	1	Elec. Connector Housing	HYDRO OIL TEMP SWITCH
4	57M7306	1	Elec.Connect Locking Device	-
5	57M7534	1	Elec. Connector Housing	UNLOADING VALVE
5	57M7620	1	Electrical Connector Assy	-
6	57M7534	1	Elec. Connector Housing	REEL LOWER VALVE
6	57M7620	1	Electrical Connector Assy	-
7	57M7534	1	Elec. Connector Housing	REEL RAISE VALVE
7	57M7620	1	Electrical Connector Assy	-
8	57M7620	1	Electrical Connector Assy	-
8	57M7534	1	Elec. Connector Housing	REEL FORE VALVE
9	57M7534	1	Elec. Connector Housing	REEL AFT VALVE
9	57M7620	1	Electrical Connector Assy	-
10	57M7534	1	Elec. Connector Housing	COMBINATION REEL SPEED VALVE
10	57M7620	1	Electrical Connector Assy	-
11	57M7534	1	Elec. Connector Housing	REEL REVERSE VALVE
11	57M7620	1	Electrical Connector Assy	-
12	57M7534	1	Elec. Connector Housing	GROUND SPEED SHIFT VALVE
12	57M7620	1	Electrical Connector Assy	-
13	57M7534	1	Elec. Connector Housing	BRAKE RELEASE VALVE
13	57M7620	1	Electrical Connector Assy	-
14	R78053	1	Electrical Connector Assy	HYDRO CHARGE PRESSURE SWITCH
15	-	1	Part 28	DIFF HYDRO FILTER RESTRICT SWITCH
16	AFH203998	1	Wiring Harness	-
17	AFH203668	1	Tie Band	-
18	T237868	1	Clamp	-

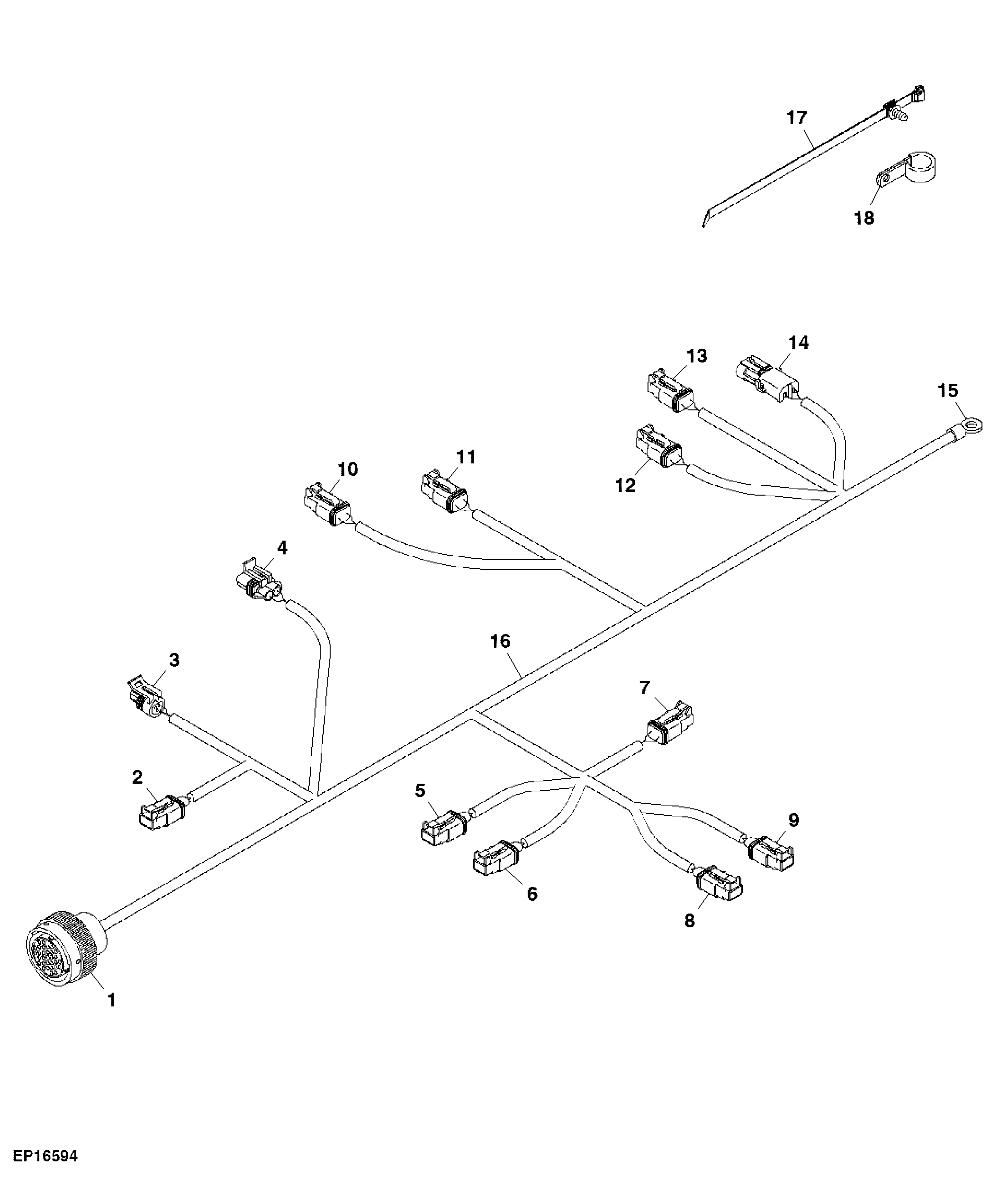

Wiring Harness - Main Hydraulic Valve Block

Нет текстового описания
