Открытый узел

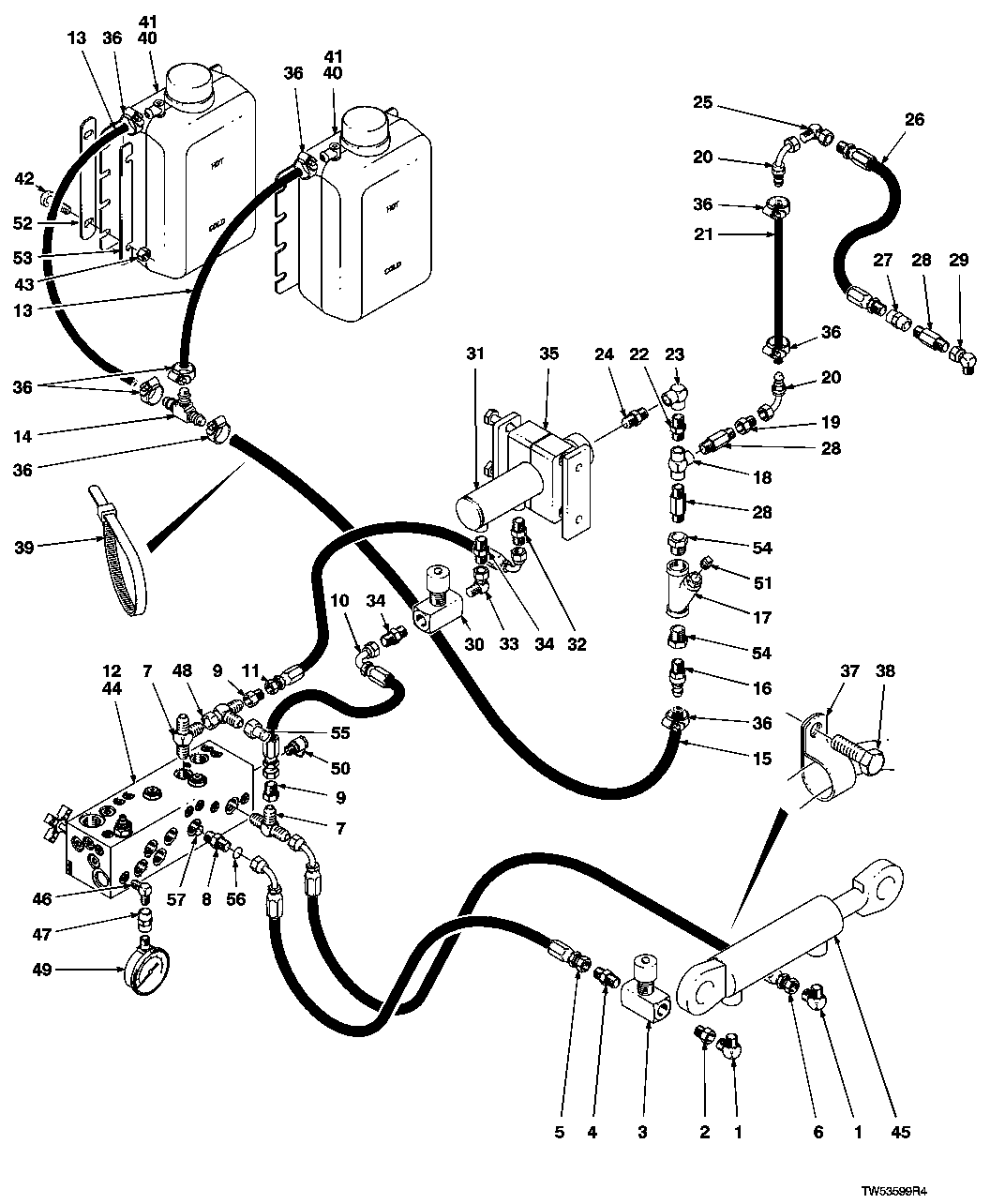

HYDRAULIC SYSTEM, TANK (WARATAH APPLICATIONS)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20886	2	ELBOW FITTING	(SUB FOR 810453300)
2	X8-8F6X-S	1	Adapter Fitting	(SUB FOR 811848000)
3	F300828	1	Flow Control Hyd. Valve	-
4	N111876	1	Adapter Fitting	(SUB FOR 810224800)
5	F124297	1	Hydraulic Hose	-
6	F124455	1	Hydraulic Hose	-
7	811648000	2	Tee Fitting	-
8	38H1161	1	Adapter Fitting	-
9	X8-4TRLO-S	2	Reducer	(SUB FOR 811439400)
10	F124452	1	Hydraulic Hose	-
11	F124147	1	Hydraulic Hose	-
12	F124122	1	Integrated Circuit	HYDRAULIC VALVE (SEE SEPARATE PAGE FOR PAGE BREAKDOWN)
13	TY22559	2	Bulk Hose	(SUB FOR 811468200)
14	M87795	1	Tee Fitting	-
15	TY22559	1	Bulk Hose	(SUB FOR 811468200)
16	U42355	1	Fitting	(SUB FOR 810242400)
17	F308766	1	Strainer	-
18	X022T-4-4	1	Tee Fitting	(SUB FOR 811186600)
19	811654300	1	Adapter Fitting	-
20	T28077	2	Elbow Fitting	(SUB FOR F120904)
21	TY22559	1	Bulk Hose	(SUB FOR 811468200)
22	X0101-4-4	1	Threaded Nipple	(SUB FOR 810120000)
23	X2202-4-4	1	Elbow Fitting	(SUB FOR 810564100)
24	F308764	1	Adapter Fitting	-
25	F302162	1	Elbow Fitting	-
26	F300982	1	Hose	-
27	811654300	1	Adapter Fitting	-
28	F300953	3	Check Valve	-
29	U16468	1	Elbow Fitting	(SUB FOR 810420700)
30	F308754	1	Flow Control Hyd. Valve	-
31	F306427	1	Oiler	CHAIN OILER (SEE SEPARATE PAGE FOR PARTS BREAKDOWN)
32	811560400	1	Adapter Fitting	-
33	X4AOEL6-S	1	Elbow Fitting	-
34	T80938	2	Adapter Fitting	(SUB FOR 811455200)
35	F308649	1	Clamp	-
36	TY22464	10	Clamp	(SUB FOR 811008800)
37	H75541	1	Clamp	(SUB FOR 810785600)
38	19H2038	1	Cap Screw	3/8" X 1/2", (SUB FOR 811225400)
39	R44302	10	Tie Band	(SUB FOR 810402100)
40	AT162597	2	Tank	-
41	F124245	8	Bolt And Nut	-
42	03H1519	6	Bolt	3/8" X 1", (SUB FOR 810327700)
43	K40003	6	Lock Nut	(SUB FOR 810677900)
44	19H2284	4	Cap Screw	3/8" X 7/8", (SUB FOR 840035800)
45	F300781	1	Cylinder	BAR SAW CYLINDER (SEE SEPARATE PAGE FOR PARTS BREAKDOWN)
46	X4C5OX-S	1	Elbow Fitting	(SUB FOR 810057600)
47	F121753	1	Adapter Fitting	-
48	38H1029	1	Tee Fitting	-
49	F300821	1	Gauge	-
50	XPD341	1	Diagnostic Coupling	-
51	810062600	1	PLUG	-
52	F387746	1	Plate	-
53	F387754	2	Plate	-
54	PMH1219	2	Reducer	(SUB FOR 810737600)
55	RE60700	1	Diagnostic Coupling	(SUB FOR F123239)
56	T77857	1	O-Ring	-
57	R26375	1	O-Ring	-

HYDRAULIC SYSTEM, TANK (WARATAH APPLICATIONS)

Нет текстового описания
