HYDRAULIC SYSTEM, ACCUMULATOR (WARATAH APPLICATIONS)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1037	2	Elbow Fitting	-
2	X16R6LO-S	2	Tee Fitting	(SUB FOR 811820100)
3	F124159	1	Hydraulic Hose	Fabricate
4	AT214555	2	Fitting	(SUB FOR 811649200)
5	F124145	1	Hydraulic Hose	Fabricate
6	F124149	1	Hydraulic Hose	Fabricate
7	X4-4FFTX-S	1	Adapter Fitting	(SUB FOR 811518500)
10	F124453	1	Hydraulic Hose	Fabricate
11	X8-4TRLO-S	1	Reducer	(SUB FOR 811439400)
18	F308500	1	Hydraulic Motor	-
19	38H1007	1	Elbow Fitting	(SUB FOR 811437600)
20	F124302	1	Hydraulic Hose	Fabricate
21	811648000	1	Tee Fitting	-
22	-	1	Part 14	( 811604900 NLA) (ORDER PARKER 8V5OLO-S)
23	38H1161	4	Adapter Fitting	-
24	F124160	1	Hydraulic Hose	Fabricate
25	38H1163	1	Adapter Fitting	(SUB FOR 811439600)
26	F124298	1	Hydraulic Hose	Fabricate
27	F124301	1	Hydraulic Hose	Fabricate
28	F124303	1	Hydraulic Hose	Fabricate
29	F124299	1	Hydraulic Hose	Fabricate
30	F124300	1	Hydraulic Hose	Fabricate
31	X8CLO-S	4	Elbow Fitting	(SUB FOR 811437400)
32	811561700	1	ADAPTER -	-
33	X8-4TRLO-S	1	Reducer	(SUB FOR 811439400)
36	F124122	1	Integrated Circuit	HYDRAULIC VALVE (SEE SEPARATE PAGE FOR PAGE BREAKDOWN)
37	F124150	1	Hydraulic Hose	Fabricate
38	AT172847	1	Tee Fitting	-
39	811639600	1	Tee Fitting	-
40	F124146	1	Hydraulic Hose	Fabricate
41	F124241	1	Hydraulic Hose	Fabricate
42	X4C5OLO-S	1	Elbow Fitting	(SUB FOR 811464600)
43	F308898	1	Hand Operated Valve	-
44	F124162	1	Fitting	-
45	-	1	Part 35	( 811633700 NLA)
46	F124022	1	Hydraulic Hose	Fabricate
47	38H1093	1	Elbow Fitting	(SUB FOR 811464100)
48	811571100	1	Fitting	-
49	811437700	1	ELBOW-90 DEG. -	-
50	AE71522	1	Hydraulic Accumulator	(SUB FOR AE70881)
51	F300771	1	U-Bolt	-
52	BP12214	2	Lock Nut	(SUB FOR F301680)
53	R70663	2	Washer	(SUB FOR F123562)
54	F303406	3	Guard	-
55	F303404	1	Guard	-
56	19H2284	4	Cap Screw	3/8" X 7/8", (SUB FOR 840035800)
57	F300792	2	Cylinder	CUTTER HEAD
58	810631500	1	PLUG	-
59	811438500	1	Plug	-
60	810322100	2	PLUG -	-
61	R29936	2	O-Ring	-
62	T76938	2	O-Ring	-
63	T77857	4	O-Ring	-
64	R26375	4	O-Ring	-

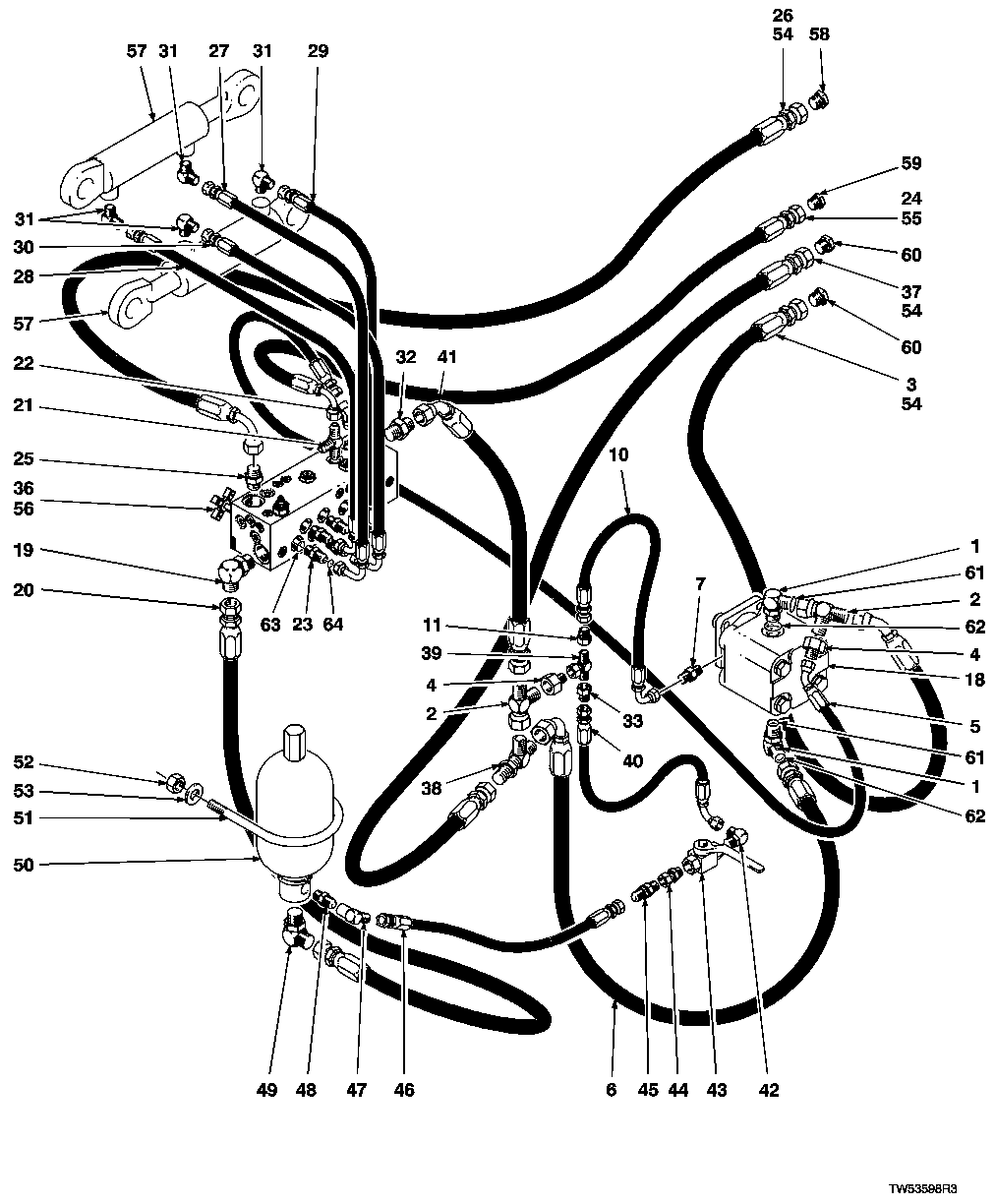

HYDRAULIC SYSTEM, ACCUMULATOR (WARATAH APPLICATIONS)
