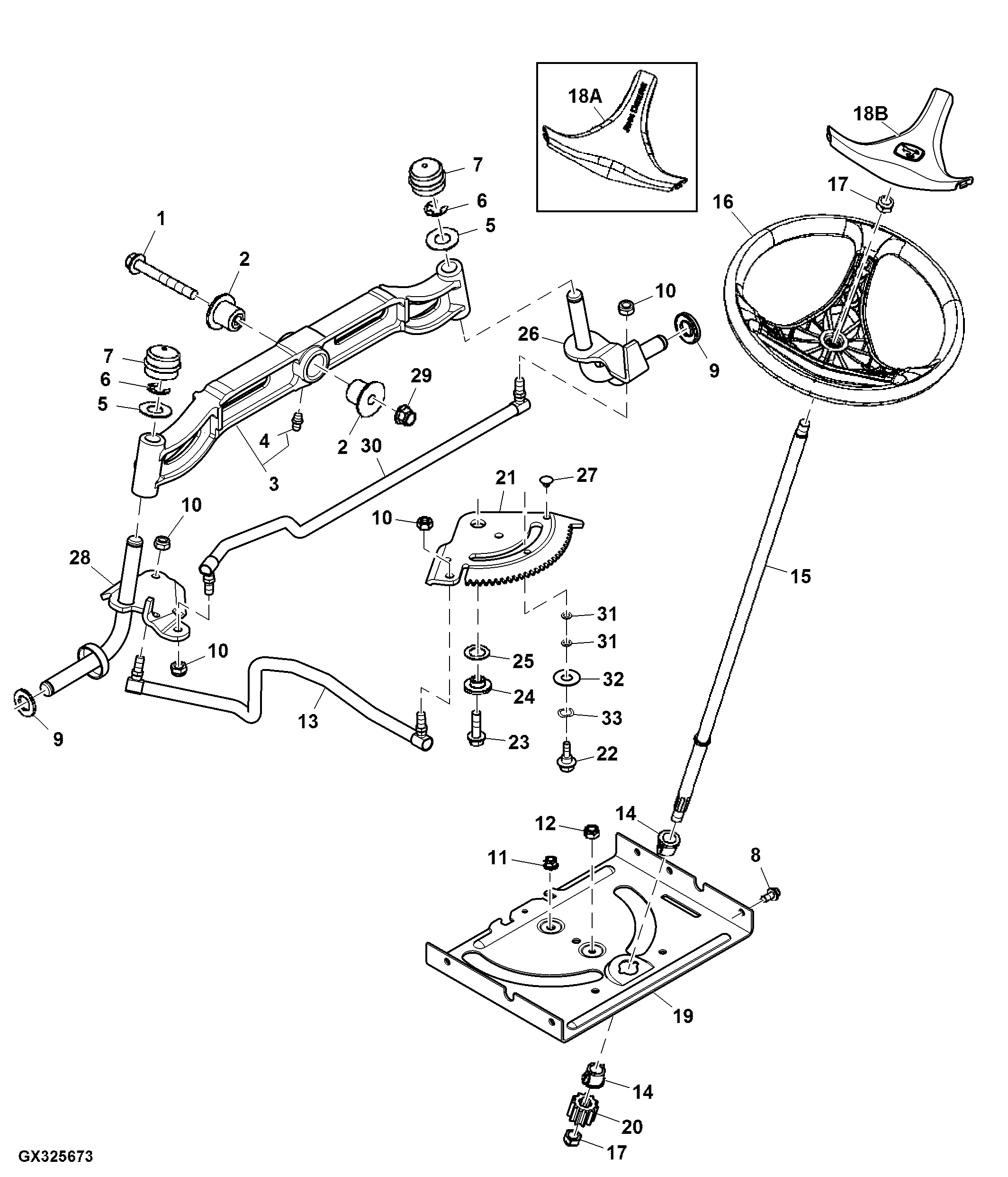

Steering Wheel, Gears, Linkage And Front Axle (700001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7820	1	Screw	M12 X 100
2	GX21791	2	Bushing	Axle Pivot
3	GY21387	1	Axle	Cast Assembly
4	JD7844	3	Lubrication Fitting	-
5	M123254	2	Washer	-
6	R27434	2	Snap Ring	-
7	M128102	2	Cap	Wheel Spindle
8	GX22456	4	Screw	-
9	Z9972H	2	Washer	-
10	14M7455	4	Lock Nut	M10
11	14M7465	1	Lock Nut	M10
12	14M7396	1	Lock Nut	M8
13	GY22317	1	Drag Link	Non Adjustable
14	GX21994	2	Bushing	-
15	GX20059	1	Universal Driveshaft	Steering Wheel
16	GY22529	1	Steering Wheel	SUB FOR GY21194
17	B30963	2	Lock Nut	-
19	UC13877	1	Plate	SUB FOR GX26219; Steering Support
20	GX26220	1	Gear	Z = 11, Steering Pinion
21	UC14592	1	Gear	SUB FOR GX26057 OR UC13515; Steering Sector
22	M153513	1	Screw	-
23	19M7835	1	Screw	M10 X 35
24	UC13360	1	Bushing	SUB FOR GX20054; Sector Pivot
25	UC13623	1	Washer	-
26	GY22521	1	Spindle	ORDER AUC10012; RH
26	AUC10012	1	Spindle	USE WITH AUC10011 ANDAUC10277; RH
27	GX26058	2	Absorber	-
28	GY22316	1	Spindle	ORDER AUC10011; LH
28	AUC10011	1	Spindle	USE WITH AUC10012 ANDAUC10277; LH
29	14M7401	1	Lock Nut	M12
30	GY22320	1	Tie Rod Assembly	USE WITH GY22521 AND GY22316; Non Adjustable
30	AUC10277	1	Tie Rod Assembly	USE WITH AUC10012 AND AUC10011; Non Adjustable
31	R48517	2	Washer	-
32	E35778	1	Washer	-
33	UC13624	1	Washer	-
18A	M142219	1	Cover	Steering Wheel
18B	GX26491	1	Cap	Steering Wheel

Steering Wheel, Gears, Linkage And Front Axle (700001 - )
