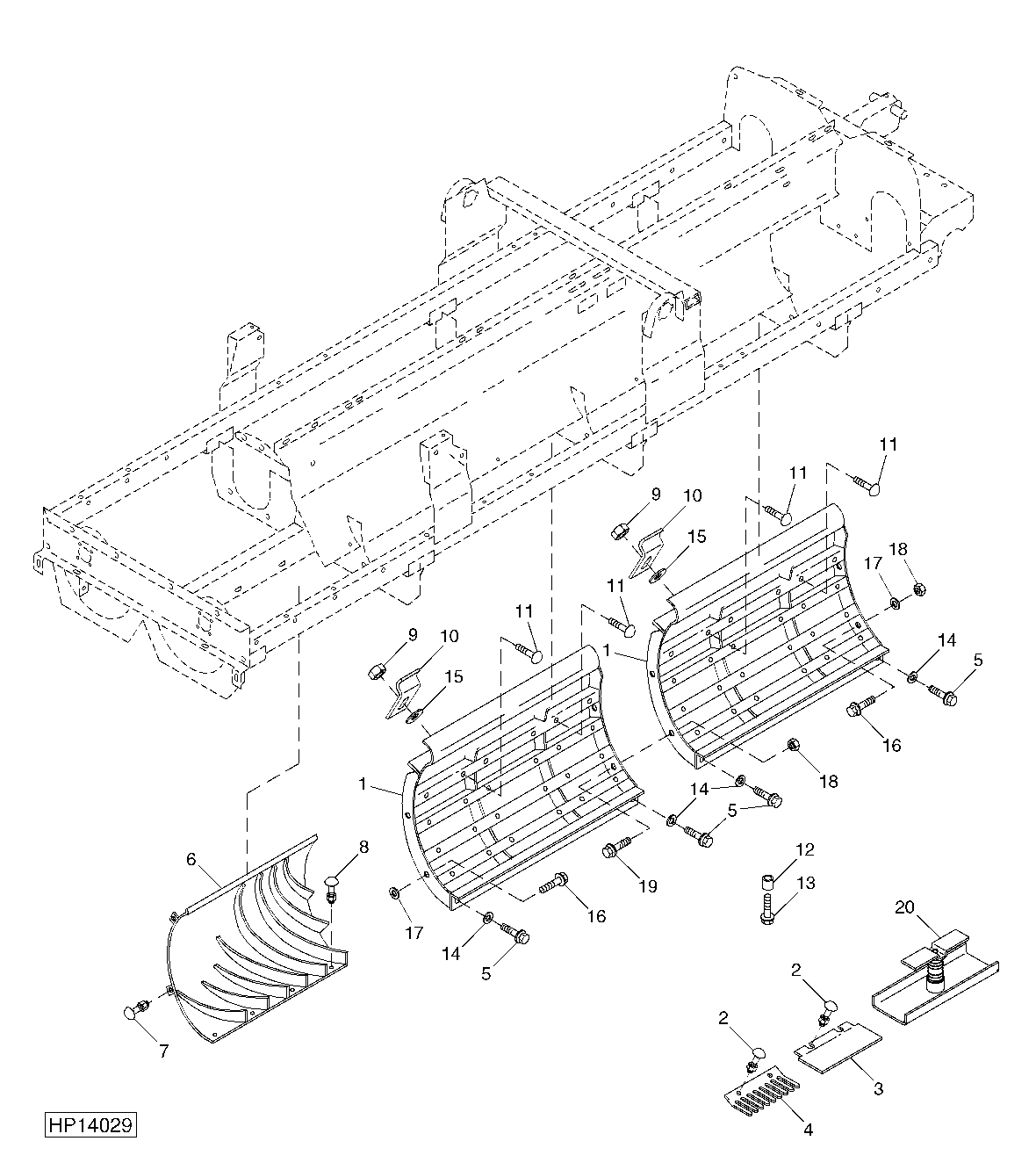

MODULE GRATE ASSEMBLY, FINGER BAR AND FILLER PLATE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH203026	4	Grate	(RICE) (USE H173009 COVERS AND H147132 FOR WIDE SPACED ROWS. USE H150752 COVERS AND H150142 FINGERS FOR NARROW SPACED ROW. ONLY ONE NARROW ROW PER GRATE.)
1	AH140766	4	Grate	(GRAIN) (USE H150752 COVERS AND H150142 FINGERS)
1	AH167146	4	Grate	(RICE) (SUB FOR AH138228) (SUB AH203026 (USE H173009 COVERS AND H147132 FINGERS))
2	03M7238	1	Bolt	M10 X 35
2	14M7296	1	Flange Nut	M10
3	H173009	1	Plate	(89MM)
3	H150752	1	Plate	(59MM)
4	H147132	1	Finger	(72MM), (FINGER SECTION)
4	H150142	1	Finger	(42MM), (FINGER SECTION)
5	19M7790	1	Screw	M12 X 35
6	AH139236	1	Housing	(SUB AH171035) L H
6	AH171035	1	Housing	(ALSO ORDER AH171036, (4) H202011 AND (4) H202009) L H
6	AH139237	1	Housing	(SUB AH171036) R H
6	AH171036	1	Housing	(ALSO ORDER AH171035, (4) H202011 AND (4) H202009) R H
7	03M7191	2	Bolt	M10 X 25
7	14M7296	2	Flange Nut	M10
8	03M7233	2	Bolt	M10 X 70
8	14M7296	2	Flange Nut	M10
8	03M7238	1	Bolt	M10 X 35
9	14M7296	1	Flange Nut	M10
10	H147286	8	Clip	-
11	03M7339	8	Bolt	M10 X 50
12	H146752	1	Bushing	(CORN CONVERSION)
13	19M7816	1	Screw	M12 X 65, (CORN CONVERSION)
14	24H1850	1	Washer	17/32" X 1-1/4" X 0.180"
15	24M7028	1	Washer	10.500 X 20 X 2 mm
15	24M7178	1	Washer	10.500 X 30 X 2.500 mm, 1ST ROW
16	19M7835	1	Screw	M10 X 35
17	24M7178	1	Washer	10.500 X 30 X 2.500 mm
18	H135891	1	Lock Nut	-
19	19M8162	1	Screw	M10 X 40
20	AH146360	1	Cover	(GRAIN)
..	BH80132	1	Complete Goods/Ship. Bundle	CORN CONVERSION

MODULE GRATE ASSEMBLY, FINGER BAR AND FILLER PLATE
