Horizontal Unloading Auger (17- and 20-FT.)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N72989	1	Bushing	-
3	AH112435	1	Auger	17', 20'
3	AH151403	1	Auger	17', 20', INNER (EXPORT ONLY) (ALSO ORDER AH122717)
4	JD9373	1	Ball Bearing	-
5	H114873	1	Housing	-
6	03M7193	2	Bolt	M10 X 35
6	14M7296	2	Flange Nut	M10
7	AH122717	1	Gudgeon	-
8	24H1300	1	Washer	25/64" X 2" X 0.220"
8	24H1311	1	Washer	13/32" X 1-1/4" X 0.220"
9	H119566	1	Strip	100 MM (4") LONG
9	H119567	1	Strip	125 MM (5") LONG
9	H119568	1	Strip	150 MM (6") LONG
10	03H1495	1	Bolt	3/8" X 1-1/2"
10	03H1557	1	Bolt	3/8" X 1-1/4"
10	K40003	1	Lock Nut	-
11	AH226064	1	Auger	20' OUTER, (EXPORT ONLY)(SUB FOR AH151414)
11	AH143727	1	Auger	17' OUTER, (SUB FOR AH140332)
11	AH143731	1	Auger	20' OUTER
11	AH226063	1	Auger	17' OUTER, (EXPORT ONLY) (SUB FOR AH151413)
12	22H897	1	Set Screw	1/4" X 1/4"
13	JD8554	1	Eccentric Locking Collar	-
14	03M7184	3	Bolt	M8 X 20
14	14M7298	3	Flange Nut	M8
15	H103264	2	Pressed Flanged Housing	-
16	JD8665	1	Ball Bearing	-
17	H96645	1	Cap	-
18	19M7866	5	Screw	M8 X 20
18	14M7298	5	Flange Nut	M8
19	21H1029	3	Screw	5/16" X 3/4"
19	12H303	3	Lock Washer	5/16"
19	14H785	3	Nut	5/16"
20	H114709	6	Clip	-
21	H113717	3	Clip	-
22	AH111354	1	Seal	-
23	J18468	2	Extension Spring	-
24	AH132230	1	Door	(INCLUDES Z24604)
24	Z24604	1	Hinge	-
25	19M7868	1	Screw	M8 X 30
26	14M7298	1	Flange Nut	M8
27	H158817	1	Plate	-
28	03M7183	2	Bolt	M8 X 16
28	14M7298	2	Flange Nut	M8
29	N189220	1	Tie Band	-
30	AR21839	1	Clamp	-
2A	H116292	1	Splined Coupling	-
2B	AH122717	1	Gudgeon	-

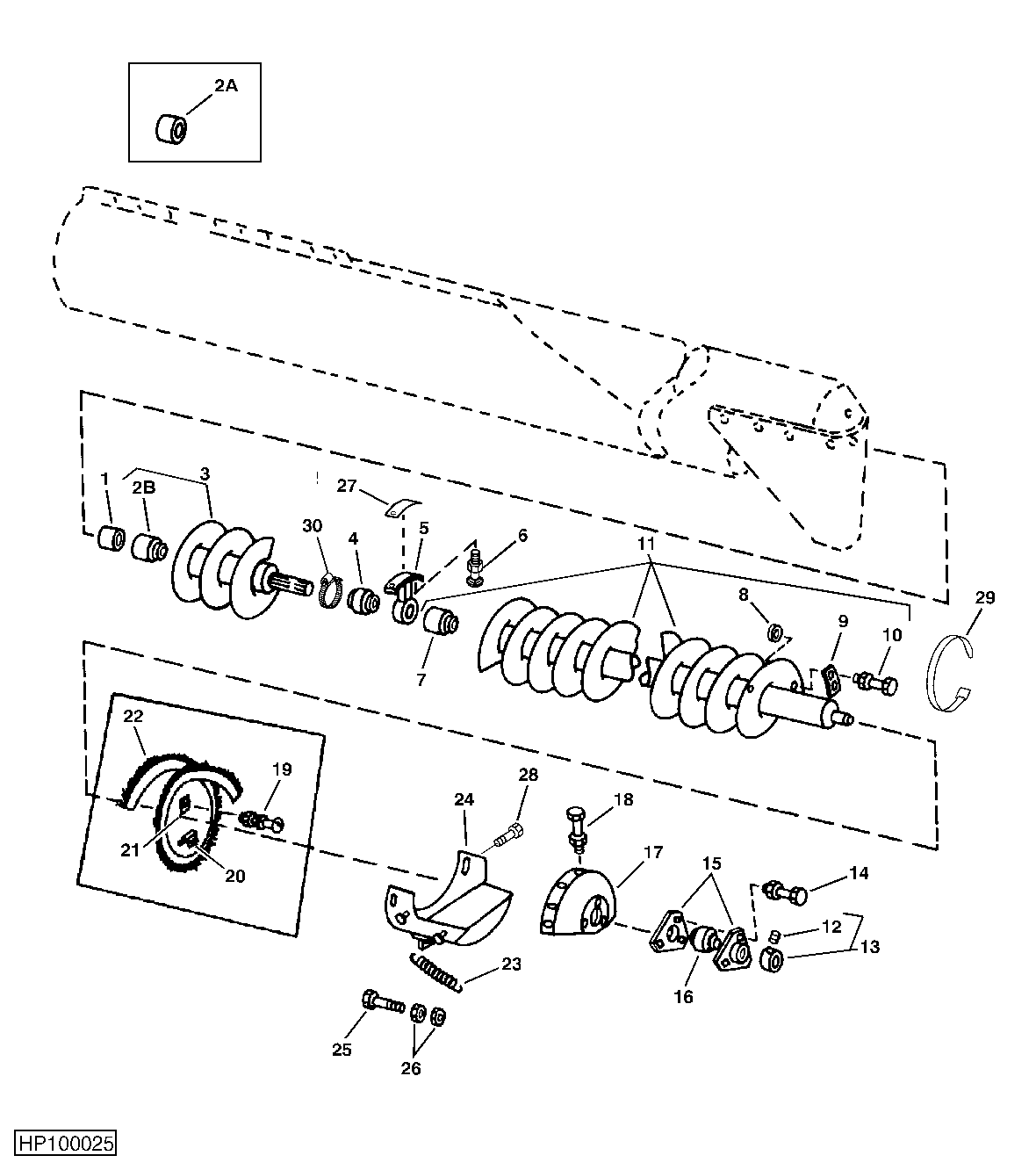

Horizontal Unloading Auger (17- and 20-FT.)
