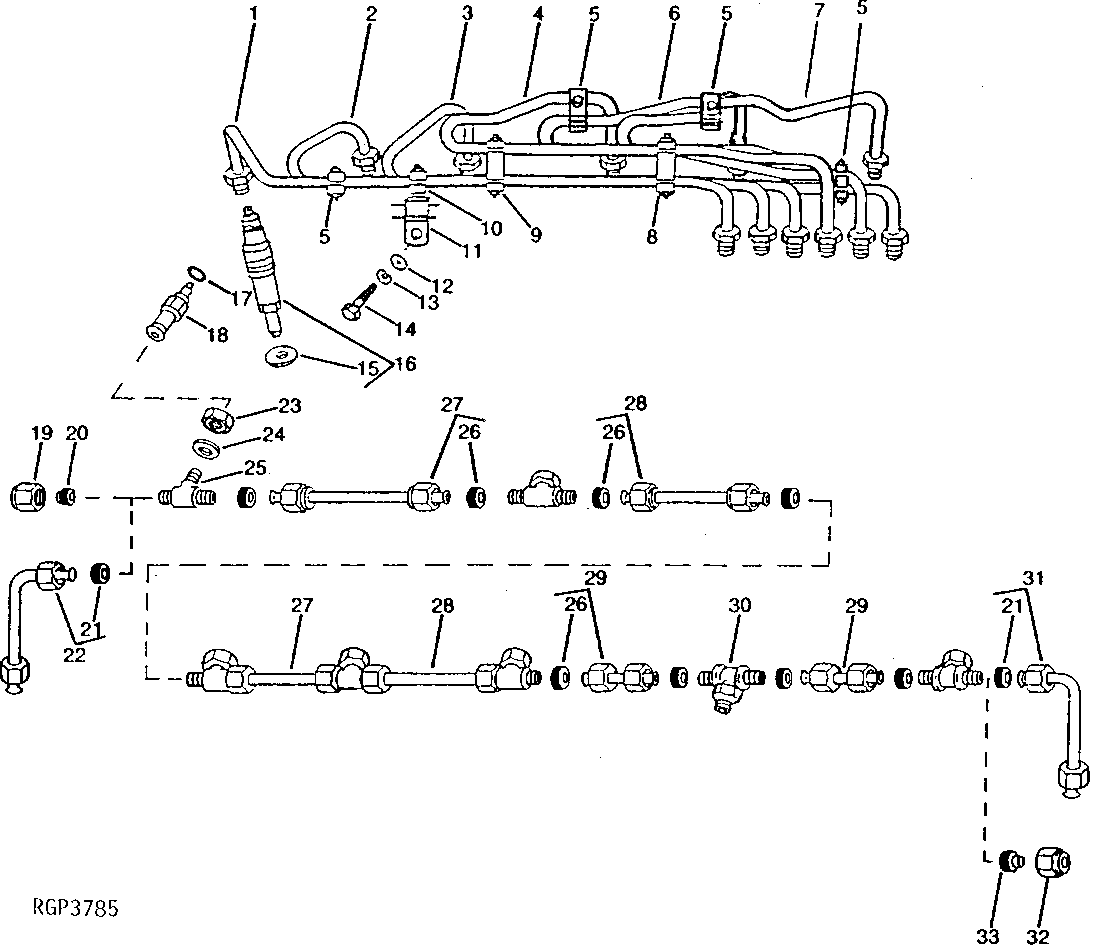

FUEL INJECTION NOZZLES AND LINES (ENGINE SERIAL NO. 500000- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE47431	1	Fuel Line	NO. 6
2	RE47430	1	Fuel Line	NO. 5
3	RE47429	1	Fuel Line	NO. 4
4	RE47428	1	Fuel Line	NO. 3
5	R59305	1	Strap	-
5	R58186	2	Clamp	-
5	R61144	1	Strap	-
5	21H1463	1	Cap Screw	0.190" X 7/8"
6	RE47427	1	Fuel Line	NO. 2
7	RE47426	1	Fuel Line	NO. 1
8	R71398	2	Screw	4.826 X 38.100 mm (0.190" X 1-1/2")
8	R61145	1	Strap	-
8	R59297	2	Half Clamp	-
8	R71212	1	Clamp	-
8	R59298	1	Strap	-
9	R59305	1	Strap	-
9	R74030	1	Clamp	-
9	R74804	1	Clamp	-
9	R58186	1	Clamp	-
9	R61144	1	Strap	-
9	R71398	1	Screw	4.826 X 38.100 mm (0.190" X 1-1/2")
10	R59298	1	Strap	-
10	R59297	2	Half Clamp	-
10	21H1463	2	Cap Screw	0.190" X 7/8"
11	RE47120	1	Absorber	-
12	24H1884	1	Washer	13/32" X 13/16" X 0.120"
13	12M7066	1	Lock Washer	10 mm, (NO LONGER REQUIRED)
14	19M7166	1	Cap Screw	M10 X 20
15	R84472	6	Washer	7.360 X 18.160 X 2 mm (0.290" X 0.715" X 0.079")
16	RE25253	6	Injection Nozzle	(DENSO) (SUB RE52113 AND R84472)
16	SE501139	1	Injection Nozzle Reman	PKG OF 1, REMAN FOR RE25253
16	RE52113	6	Injection Nozzle	(DENSO) (BROWN RING)
16	SE501140	1	Injection Nozzle Reman	PKG OF 1, REMAN FOR RE52113
16	R84472	6	Washer	7.360 X 18.160 X 2 mm (0.290" X 0.715" X 0.079")
17	R77551	6	O-Ring	-
18	R87082	6	Fitting	(ALSO ORDER R77551)
19	R51937	1	Tube Nut	-
20	AR85519	1	Plug	-
21	R51936	1	Sealing Washer	-
22	AR104650	1	Fuel Line	-
23	R79604	6	Tube Nut	-
24	R79605	6	Washer	-
25	R79606	6	Tee Fitting	-
26	R51936	12	Sealing Washer	-
27	RE15807	2	Fuel Line	-
28	RE15808	2	Fuel Line	-
29	RE36421	2	Fuel Line	-
30	R97061	1	Tee Fitting	-
31	AR104650	1	Fuel Line	-
32	R51937	1	Tube Nut	-
33	AR85519	1	Plug	-

FUEL INJECTION NOZZLES AND LINES (ENGINE SERIAL NO. 500000- )
