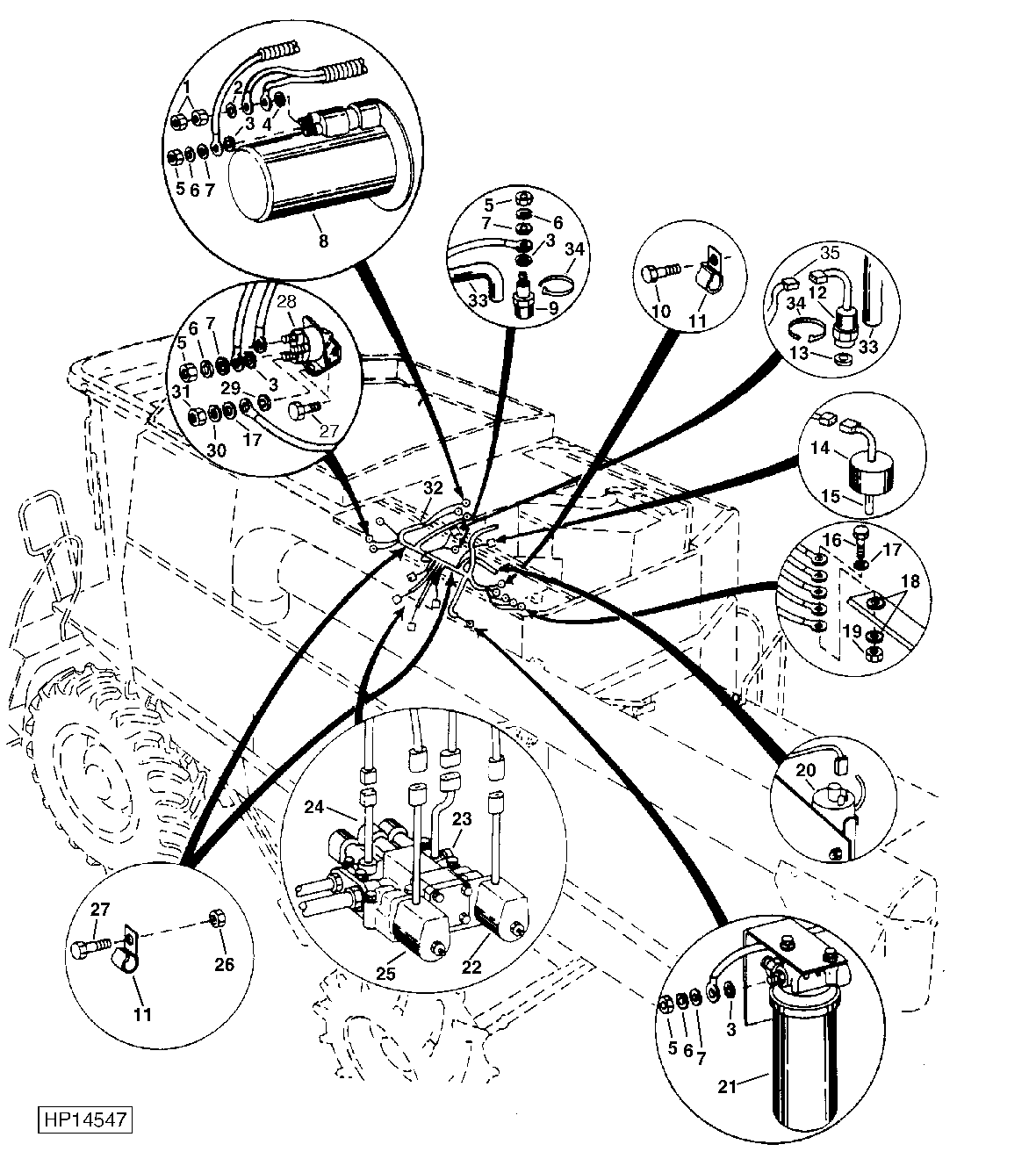

HARNESS FOR 6076 ENGINE (LOWER PARTS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7415	2	Nut	M12
1	14H826	2	Nut	1/2"
2	24M7047	1	Washer	13 X 24 X 2.500 mm
3	12M7060	4	Washer	5.300 mm
4	12M7034	1	Lock Washer	10.500 mm
5	14H631	4	Nut	0.190"
6	12H246	4	LOCK WASHER	0.190"
7	24M7027	4	Washer	5.300 X 10 X 1 mm
8	-	1	Part 9	(SEE ENGINE SECTION)
9	AT37368	1	SENDER	-
10	37M7083	3	Screw	M8 X 12
11	H77698	1	Tie Band	-
11	AH96317	2	Clip	(SUB FOR AH89486)
12	AH121234	1	Switch	ENGINE TEMP
12	AH148278	1	Switch	-
12	AH152457	1	Switch	(SUB AH155523) ENGINE TEMP
12	AH158689	1	Switch	(SUB FOR AH155523)
13	R76337	1	Washer	-
14	AH172066	1	Switch	(ENGINE OIL PRESSURE) (SUB FOR AH133896)
15	R53014	1	Fitting	-
16	19M7868	1	Screw	M8 X 30
17	24M7055	2	Washer	8.400 X 16 X 1.600 mm
18	12M7032	2	Lock Washer	8.400 mm
19	14M7298	1	Flange Nut	M8
20	RE48310	1	Starting Aid Solenoid	-
21	-	1	Part 26	-
22	AH128655	1	Solenoid Valve	-
23	AH135744	1	Switch	-
23	R28782	1	O-Ring	-
24	AH116105	1	Switch	-
24	R26375	1	O-Ring	-
25	AH128785	1	Hand Operated Valve	-
26	14M7303	1	Flange Nut	M6
27	19M7774	2	Screw	M6 X 12
28	AM53945	1	Solenoid	-
29	12M7032	2	Lock Washer	8.400 mm
30	12H303	2	Lock Washer	5/16"
31	14H785	2	Nut	5/16"
32	AH148406	1	Wiring Harness	(SUB FOR AH144954)
32	AH153207	1	Wiring Harness	-
33	H138200	2	Hose	-
34	R44302	4	Tie Band	-
35	AH155820	1	Wiring Lead	(SUB FOR AH155820) USED WITH AH155523
36	19M7774	2	Screw	M6 X 12

HARNESS FOR 6076 ENGINE (LOWER PARTS)
