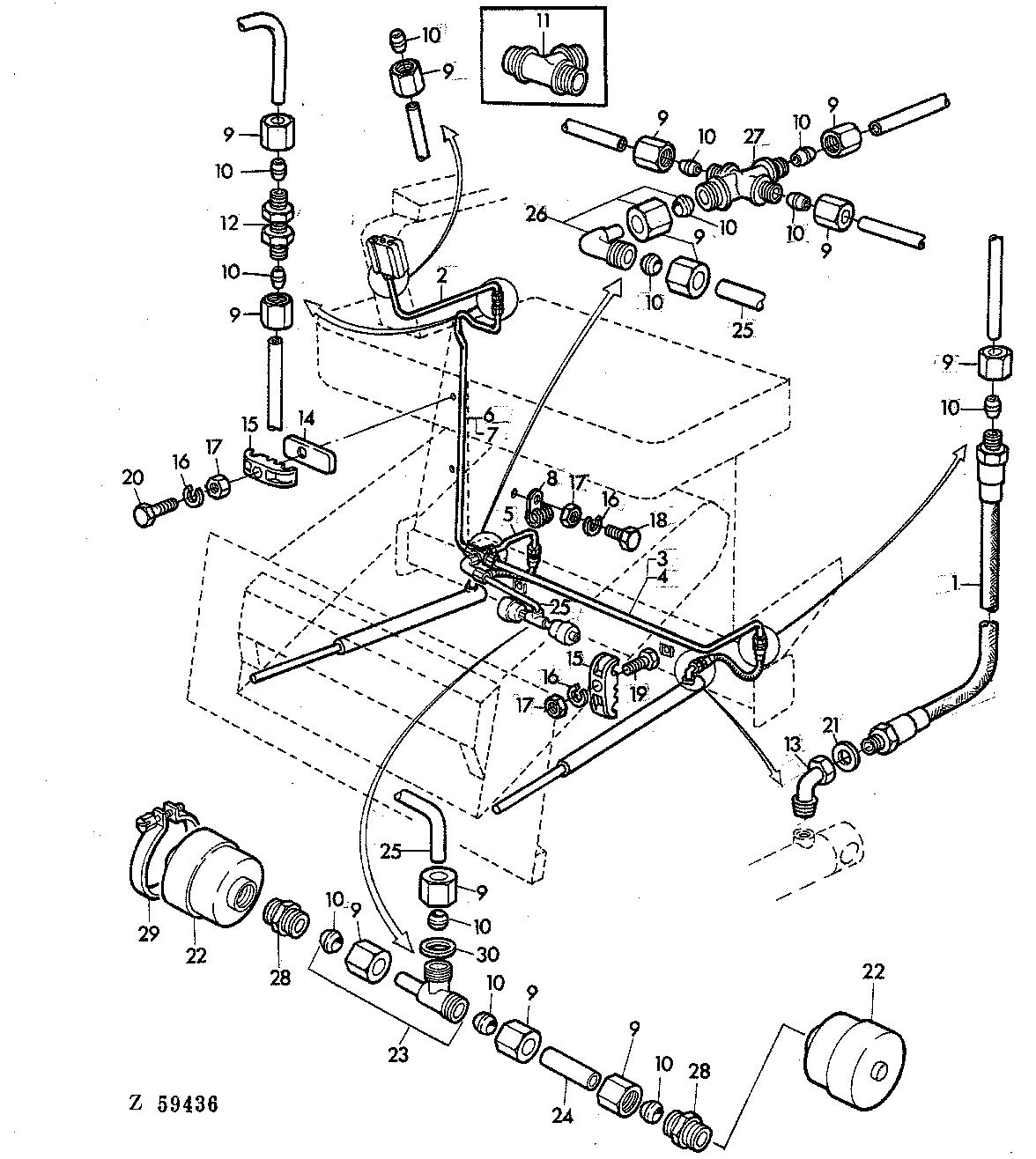

HYDRAULIC LINES,PLATFORM LIFT CYLINDERS [01H07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ15362	2	HYDRAULIC HOSE	-
2	AZ22180	1	OIL LINE	INCL KEYS 9,10 (SUB FOR AZ19280)
3	AZ22226	1	OIL LINE	INCL KEYS 9,10 (SUB FOR AZ19672)
4	AZ22230	1	OIL LINE	INCL KEYS 9,10 (SUB FOR AZ19676)
5	AZ22282	1	OIL LINE	INCL KEYS 9,10 (SUB FOR AZ21449)
6	AZ22238	1	OIL LINE	INCL KEYS 9,10 (SUB FOR AZ19685)
7	AZ22240	1	OIL LINE	INCL KEYS 9,10 (SUB FOR AZ19689)
8	Z22064	1	Clamp	-
9	Z32971	13	TUBE NUT	(SUB FOR Z22346)
10	Z32994	13	Tapered Sleeve	(SUB FOR Z22674)
11	Z32985	1	TEE FITTING	(B) (SUB FOR Z22693)
12	Z32980	1	UNION FITTING	(SUB FOR Z22715)
13	Z28060	2	ELBOW FITTING	-
14	Z30667	2	PLATE	-
15	Z30668	5	CLAMP	-
16	12M7012	7	LOCK WASHER	6 MM
17	14M7027	7	NUT	M6
18	19M7286	2	Cap Screw	M6 X 25
19	19M7320	3	Cap Screw	M6 X 40
20	19M7547	2	Cap Screw	M6 X 55
21	51M4240	2	Sealing Ring	-
22	AZ22843	2	HYDRAULIC ACCUMULATOR	(A)
23	AZ22845	1	FITTING	(A) INCL KEYS 9,10
24	AZ22846	1	OIL LINE	(A) INCL KEYS 9,10
25	AZ22847	1	OIL LINE	(A) INCL KEYS 9,10
26	AZ22524	1	ELBOW FITTING	(A)
27	Z33631	1	FITTING	(A)
28	Z33997	2	HYD. QUICK-CONNECT COUPLER	(A)
29	Z34000	2	CLAMP	(A)
30	Z34005	1	WASHER	(A)

HYDRAULIC LINES,PLATFORM LIFT CYLINDERS [01H07]
