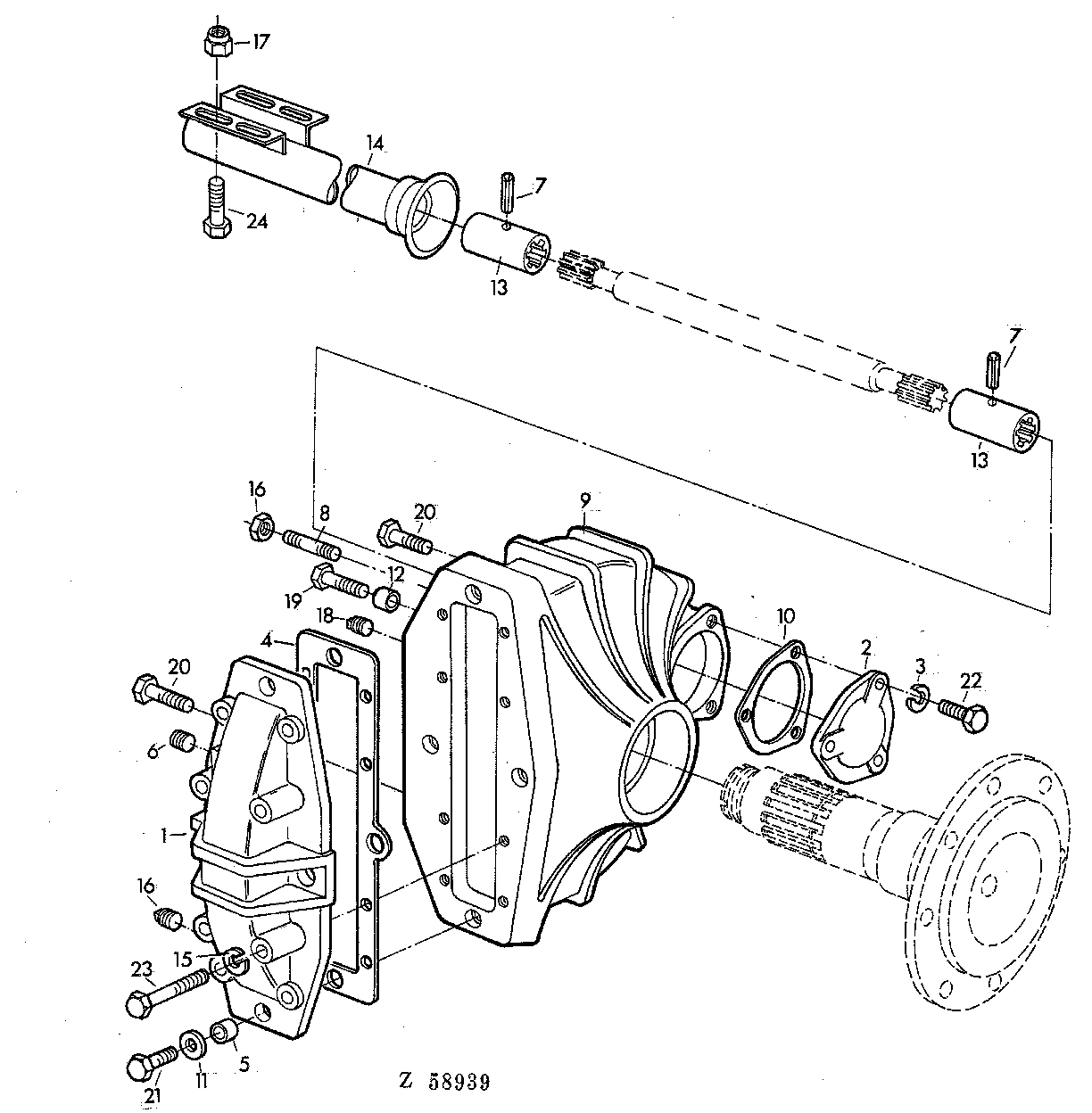

HOUSING-FINAL DRIVE (HEAVY DUTY) [01B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H10280	2	COVER	-
2	H10781	2	BEARING HOUSING W/O BEARING	(ORD Z10941 W/ Z34376, Z34377, Z34378, Z34380)
2	Z10941	2	BEARING HOUSING W/O BEARING	(SUB FOR H10781)
3	H20551	6	LOCK WASHER	-
4	H22782	2	GASKET	-
5	H22785	8	Bushing	-
6	H22789	2	Pipe Plug	-
7	34H385	4	Spring Pin	1/4" X 1-3/4"
8	Z37924	6	STUD	(SUB FOR H36568)
9	H61682	2	HOUSING	(ORD Z11362 W/ JD8249, Z10941, Z35175, Z35176, (6) 19H1773)
9	Z10942	2	HOUSING	(ORD Z11362 W/ JD8249, Z35175, Z40239)
9	Z11014	2	HOUSING	(SUB FOR H61682, Z10942)
9	Z10942	2	HOUSING	(ORD Z11362 W/ Z40239)
9	Z11362	2	HOUSING	(SUB FOR H61682, Z10942, Z11014)
10	Z34380	1	SHIM	0,08 MM (FOR Z10942, Z11014)
10	Z34378	1	SHIM	0,13 MM (FOR Z10942, Z11014)
10	Z34377	1	SHIM	0,25 MM (FOR Z10942, Z11014)
10	Z34376	1	SHIM	0,5 MM (FOR Z10942, Z11014)
10	P49122	1	SHIM	0.010" (FOR H61682)
10	P49121	1	SHIM	0.005" (FOR H61682)
10	P49120	1	SHIM	0.002" (FOR H61682)
10	P46359	1	SHIM	0.003" (FOR H61682)
10	P49123	1	SHIM	0.020" (FOR H61682)
11	E12817	8	WASHER	-
12	Z29008	4	BUSHING	-
13	Z31218	4	SPACER	-
14	AZ19977	2	GUARD	(A)
14	AZ19978	2	GUARD	(B)
15	12H304	16	Lock Washer	3/8"
16	14H863	6	Nut	3/4"
17	14M7167	4	Lock Nut	M10
18	15H255	6	Pipe Plug	-
19	19H1768	4	Cap Screw	3/4" X 2"
20	19H1798	6	Cap Screw	3/8" X 1-3/4"
21	19H1800	8	Cap Screw	3/8" X 1-1/2"
22	19H1773	6	CAP SCREW	7/16" X 1-1/8" (FOR Z11014)
22	19H1821	6	CAP SCREW	(FOR H61682, Z10942)
23	19H2138	8	CAP SCREW	3/8" X 3"
24	19M7167	4	Cap Screw	M10 X 25

HOUSING-FINAL DRIVE (HEAVY DUTY) [01B05]
