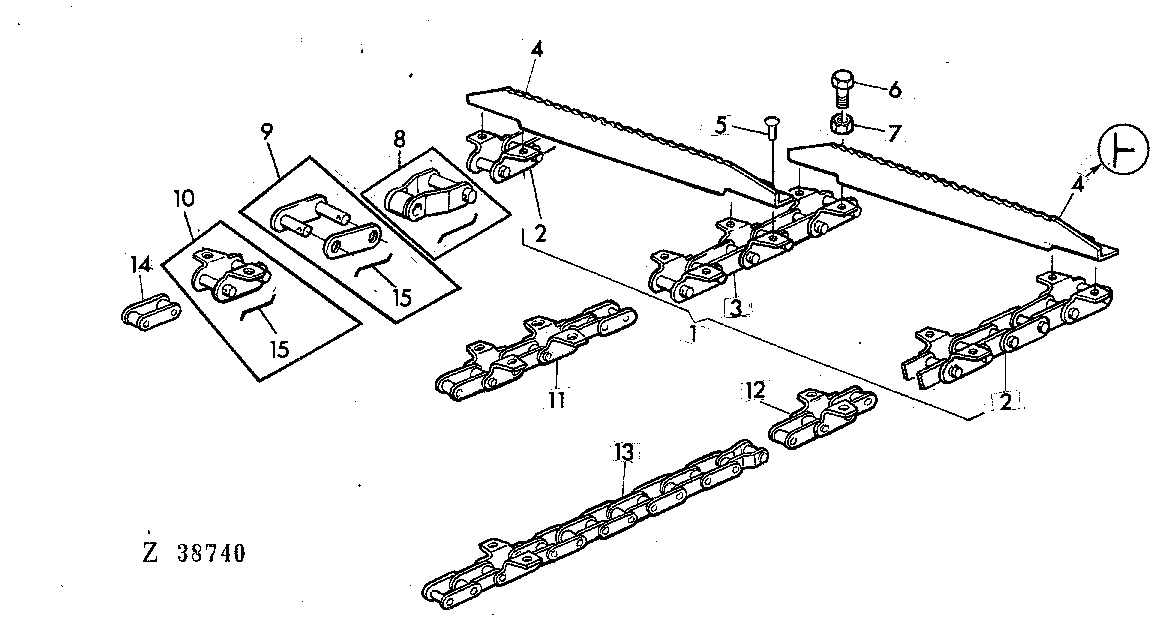

FEEDER CONVEYOR-CHAINS T-PROFILE [01I22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ24242	1	GATHERER CHAIN	(A) (C) INCL KEYS 2-7 (SUB FOR AZ22618)
1	AZ24238	1	LINK CHAIN	(B) (C) INCL KEYS 2-7 (SUB FOR AZ22615)
1	AZ24241	1	GATHERER CHAIN	(A) (C) INCL KEYS 2-7 (SUB FOR AZ22617)
1	AZ24237	1	GATHERER CHAIN	(B) (C) INCL KEYS 2-7 (SUB FOR AZ22616)
2	AZ24239	2	GATHERER CHAIN	(A) (C) L = 87 (SUB FOR AZ22621)
2	AZ24244	2	GATHERER CHAIN	(B) (C) L = 100 (SUB FOR AZ22619)
3	AZ24240	1	GATHERER CHAIN	(A) (C) L = 87 (SUB FOR AZ22622)
3	AZ24243	1	GATHERER CHAIN	(B) C) L = 100 (SUB FOR AZ22620)
4	Z33620	30	SLAT	(A) (C)
4	Z33620	34	SLAT	(B) (C)
4	Z33621	30	SLAT	(A) (C)
4	Z33621	34	SLAT	(B) (C)
5	16M2545	118	RIVET	(A) 8 X 15 MM
5	16M2545	134	RIVET	(B) 8 X 15 MM
6	19M7284	2	Cap Screw	M8 X 18
7	14M7166	2	Lock Nut	M8
8	AZ24233	1	CHAIN LINK	(C)
9	AZ24232	1	CHAIN LINK	(C)
10	AZ24231	1	CHAIN LINK	(SUB FOR AZ24146)
11	AZ24235	1	GATHERER CHAIN	(C) ASSY, INCL KEYS 9, (2) 10, (3) 14 (SUB FOR AZ24148)
12	AZ24230	1	LINK	(C) (SUB FOR AZ24084)
13	AZ24236	1	GATHERER CHAIN	(C) ASSY, INCL KEYS 8, (5) 9, 12, (5) 14 (SUB FOR AZ24085)
14	AZ24234	1	LINK	(C) (SUB FOR AZ24081)
15	Z41567	1	WIRE	(C) (FOR AZ24231, AZ24232)
