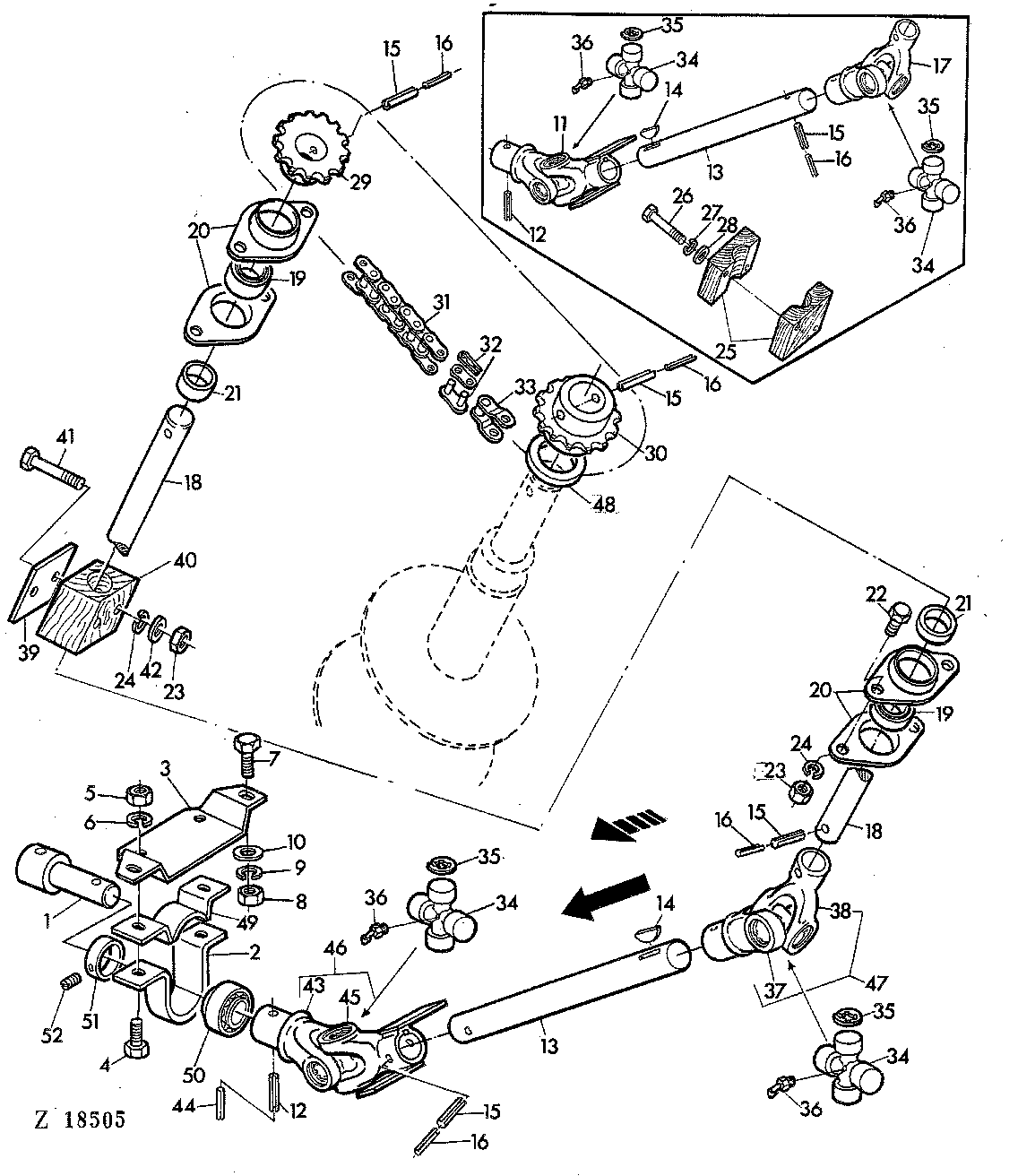

DRIVE,HYDRAULIC SWING UNLOADING AUGER [02F18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	Z32224	1	PIN FASTENER	-
2	Z35893	1	BAIL	-
3	Z32236	1	HOLDER	-
4	19M7166	2	Cap Screw	M10 X 20
5	14M7140	2	Nut	M10
6	12M7013	2	LOCK WASHER	10 MM
7	19M7167	2	Cap Screw	M10 X 25
8	14M7140	2	Nut	M10
9	12M7013	2	LOCK WASHER	10 MM
10	24M7040	2	Washer	11 MM
11	AZ21120	1	UNIVERSAL JOINT	(ORD KEY 46 W/ 13,14,47)
12	34M7070	1	Spring Pin	10 X 45 MM
13	Z32225	1	SHAFT	-
14	Z33718	1	SHAFT KEY	(SUB FOR 46M4228)
15	34M7048	4	Spring Pin	8 X 45 MM
16	34M7036	4	Spring Pin	5 X 45 MM
17	AZ21070	1	UNIVERSAL JOINT	(ORD KEY 47 W/ 13,14,46)
18	Z32212	1	SHAFT	-
19	JD39102	2	Ball Bearing	-
20	P44439	4	PRESSED FLANGED HOUSING	-
21	AZ10044	2	Eccentric Locking Collar	-
22	19M7139	4	Cap Screw	M8 X 20
23	14M7029	4	Nut	M8
24	12M7008	4	LOCK WASHER	8 MM
25	AZ10036	1	BEARING	-
26	19M7328	2	Cap Screw	M10 X 70
27	12M7013	2	LOCK WASHER	10 MM
28	24M7101	2	Washer	11,5 MM
29	Z36096	1	CHAIN SPROCKET	(A) (SUB FOR Z32301)
30	Z11080	1	CHAIN SPROCKET	(A) (SUB FOR AZ21045, Z10896)
31	AZ22554	1	LINK CHAIN	(A) (SUB FOR AZ21057)
32	AL14209	1	LINK	(A) (SUB FOR AL14207)
33	AZ12882	1	LINK	(A) (SUB FOR AZ12881)
34	AZ21542	2	SPIDER	ASSY, INCL KEYS 35,36
35	Z32725	2	SNAP RING	-
36	58M5577	2	Lubrication Fitting	-
37	Z10855	1	YOKE	-
38	Z10853	1	YOKE	-
39	Z32757	1	PLATE	-
40	Z32756	1	BEARING	-
41	19M7185	2	Cap Screw	M8 X 60
42	24M7036	2	Washer	-
43	Z10854	1	UNIVERSAL JOINT YOKE	-
44	34M7043	1	Spring Pin	-
45	AZ21946	1	YOKE	-
46	AZ21732	1	UNIVERSAL JOINT	(SUB FOR AZ21120)
47	AZ21704	1	UNIVERSAL JOINT	(SUB FOR AZ21070)
48	Z36094	1	WASHER	(A)
49	Z35894	1	BAIL	-
50	JD39103	1	BALL BEARING	-
51	AZ10045	1	Eccentric Locking Collar	INCL KEY 52
52	AZ19844	1	SET SCREW	KIT

DRIVE,HYDRAULIC SWING UNLOADING AUGER [02F18]
