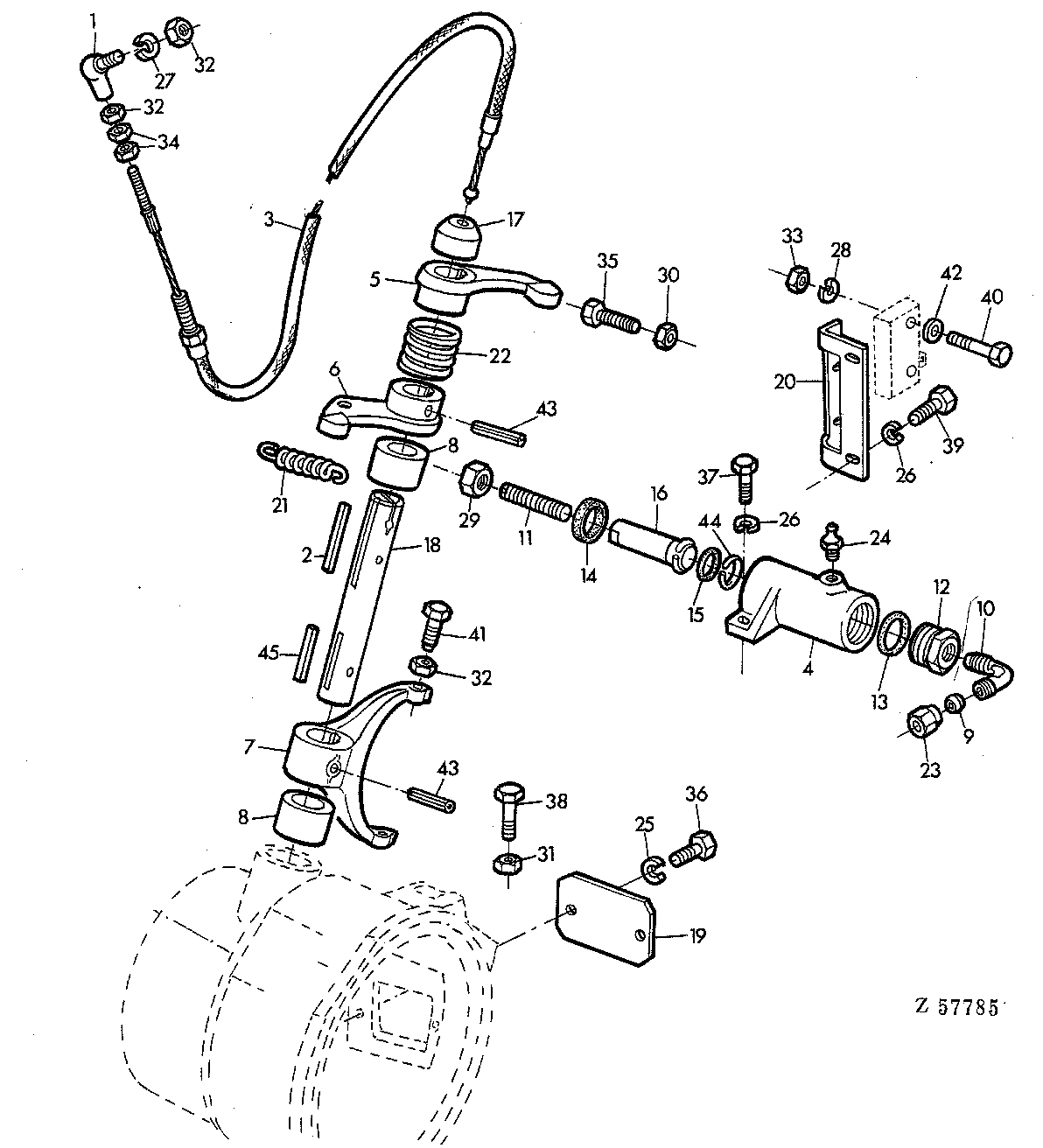

CLUTCH OPERATING LINKAGE (REVERSER CLUTCH) [01C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ12786	1	BALL JOINT	-
2	49M5998	1	SHAFT KEY	8 X 7 X 70 MM
3	AZ21466	1	PUSH PULL CABLE	(B)
3	AZ19890	1	PUSH PULL CABLE	(A) (SUB FOR AZ19016)
4	Z10697	1	HOUSING	-
5	Z10707	1	LEVER	-
6	Z10708	1	LEVER	-
7	Z10710	1	FORK	-
8	Z21764	2	SPACER	-
9	Z22676	1	SLEEVE FITTING	-
10	Z27457	1	ELBOW FITTING	-
11	Z30200	1	SET SCREW	-
12	Z30201	1	FITTING	-
13	U13639	1	O-Ring	(SUB FOR Z30206)
14	Z30207	1	SCRAPER RING	-
15	R29354	1	O-Ring	(SUB FOR Z30208)
16	AZ20962	1	PLUNGER	ASSY, INCL KEY 44
17	Z30430	1	CUSHION COVER	-
18	Z30431	1	SHAFT	-
19	Z30444	1	COVER	-
20	Z30445	1	SUPPORT	-
21	Z30447	1	EXTENSION SPRING	-
22	Z32099	1	COMPRESSION SPRING	(SUB FOR B295R)
23	L20061	1	NUT	-
24	R21612	1	Bleed Valve	-
25	12H291	2	Lock Washer	5/16"
26	12H304	4	Lock Washer	3/8"
27	12M7012	1	LOCK WASHER	6 MM
28	12M7031	2	Lock Washer	4 MM
29	14H821	1	Nut	5/8"
30	14H812	1	NUT	3/8"
31	14H850	1	NUT	1/4"
32	14M7027	4	NUT	M6
33	14M7139	2	Nut	M4
34	14M7152	2	Nut	M10
35	19H1800	1	Cap Screw	3/8" X 1-1/2"
36	19H1813	2	CAP SCREW	5/16" X 5/8"
37	19H1765	2	Cap Screw	3/8" X 1-3/4"
38	19H1914	1	Cap Screw	1/4" X 1"
39	19H2479	2	Cap Screw	1/4" X 3/8"
40	19M7371	2	CAP SCREW	M4 X 25
41	22M2088	2	SET SCREW	M6 X 25
42	24M7117	2	Washer	4 MM
43	34H316	1	Spring Pin	1/4" X 1-1/2"
44	40M6801	1	SNAP RING	M2,5 X 32
45	49M4106	1	Shaft Key	M8 X 7 X 25

CLUTCH OPERATING LINKAGE (REVERSER CLUTCH) [01C06]
