Открытый узел

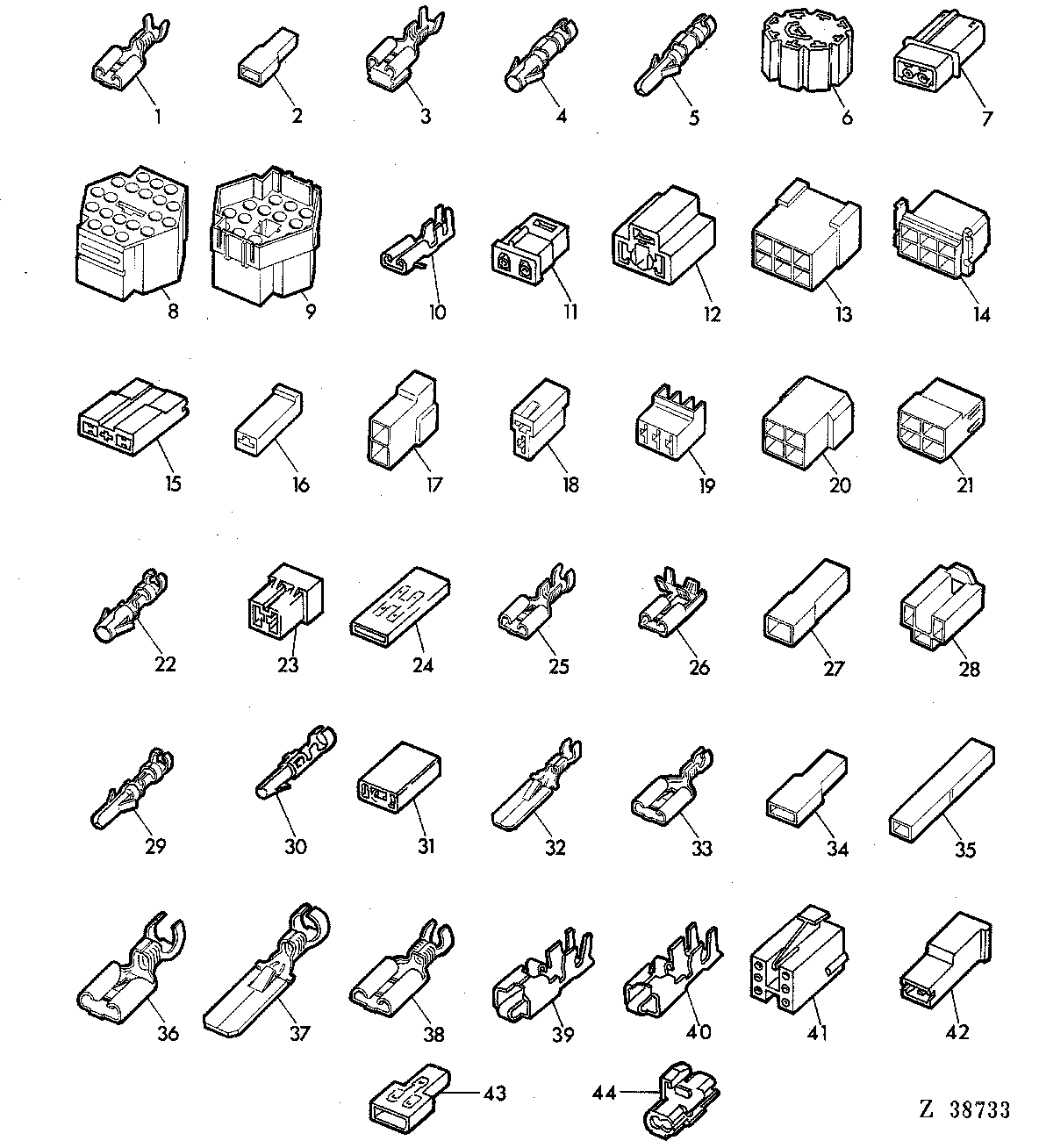

CABLE CLIPS;CONNECTORS AND PLUGS [01F11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7045	1	Elec. Connector Terminal	-
2	57M7033	1	Elec. Connector Accessory	(SUB FOR Z28350)
3	57M7070	1	Electrical Connector Assy	-
4	L36681	1	Elec. Connector Terminal	(FOR L37799) (SUB FOR Z34512)
5	L35423	1	Elec. Connector Terminal	(FOR L37798) (SUB FOR Z34514)
6	Z40754	1	ELECTRICAL CONNECTOR ASSY	-
7	Z40862	1	ELEC. CONNECTOR HOUSING	-
8	L37799	1	SOCKET CONT.CONNECTOR BODY	(SUB FOR Z34510)
9	L37798	1	Elec. Connector Housing	(SUB FOR Z34511)
10	Z40695	1	SOCKET	-
11	Z40696	1	Socket	-
12	Z40753	1	ELEC. CONNECTOR HOUSING	-
13	57M7059	1	Elec. Connector Housing	(SUB FOR Z29297)
14	57M7058	1	Elec. Connector Housing	(SUB FOR Z29296)
15	Z40742	1	ELEC. CONNECTOR HOUSING	-
16	57M7067	1	Elec. Connector Housing	(SUB FOR Z34559)
17	57M7066	1	Elec. Connector Housing	-
18	57M7065	1	Elec. Connector Housing	-
19	57M7062	1	Elec. Connector Housing	-
20	57M7061	1	Elec. Connector Housing	(SUB FOR Z34509)
21	57M7060	1	Elec. Connector Housing	(SUB FOR Z34508)
22	L36685	1	Elec. Connector Terminal	(FOR L37799) (SUB FOR Z34515)
23	Z30963	1	ELEC. CONNECTOR HOUSING	-
24	AZ31110	1	ELEC. CONNECTOR HOUSING	-
25	57M7041	1	Elec. Connector Terminal	-
26	57M7069	1	Elec. Connector Terminal	-
27	57M7068	1	Elec. Connector Housing	(SUB FOR Z34560)
28	57M7064	1	Elec. Connector Housing	-
29	L36670	1	Elec. Connector Terminal	(FOR L37798) (SUB FOR Z34513)
30	Z40755	1	ELEC. CONNECTOR TERMINAL	-
31	H104855	1	Electrical Connector Assy	(SUB FOR Z40924)
32	57M7039	1	Elec. Connector Terminal	(SUB FOR Z29299)
33	57M7038	1	Elec. Connector Terminal	-
34	57M7072	1	INSULATING SLEEVE	-
35	57M7073	1	Elec. Connector Housing	-
36	57M7071	1	Elec. Connector Terminal	-
37	57M7040	1	Elec. Connector Terminal	-
38	57M7046	1	Elec. Connector Terminal	-
39	Z40740	1	ELECTRICAL PLUG	2,5-4,0 MM2
40	Z40741	1	ELECTRICAL PLUG	0,7-2,0 MM2
41	Z40756	1	ELEC. CONNECTOR TERMINAL	-
42	Z40757	1	Elec. Connector Accessory	-
43	AZ31109	1	ELEC. CONNECTOR TERMINAL	-
44	57M7095	1	Electrical Connector Assy	(SUB FOR AZ26518)

CABLE CLIPS;CONNECTORS AND PLUGS [01F11]

Нет текстового описания
