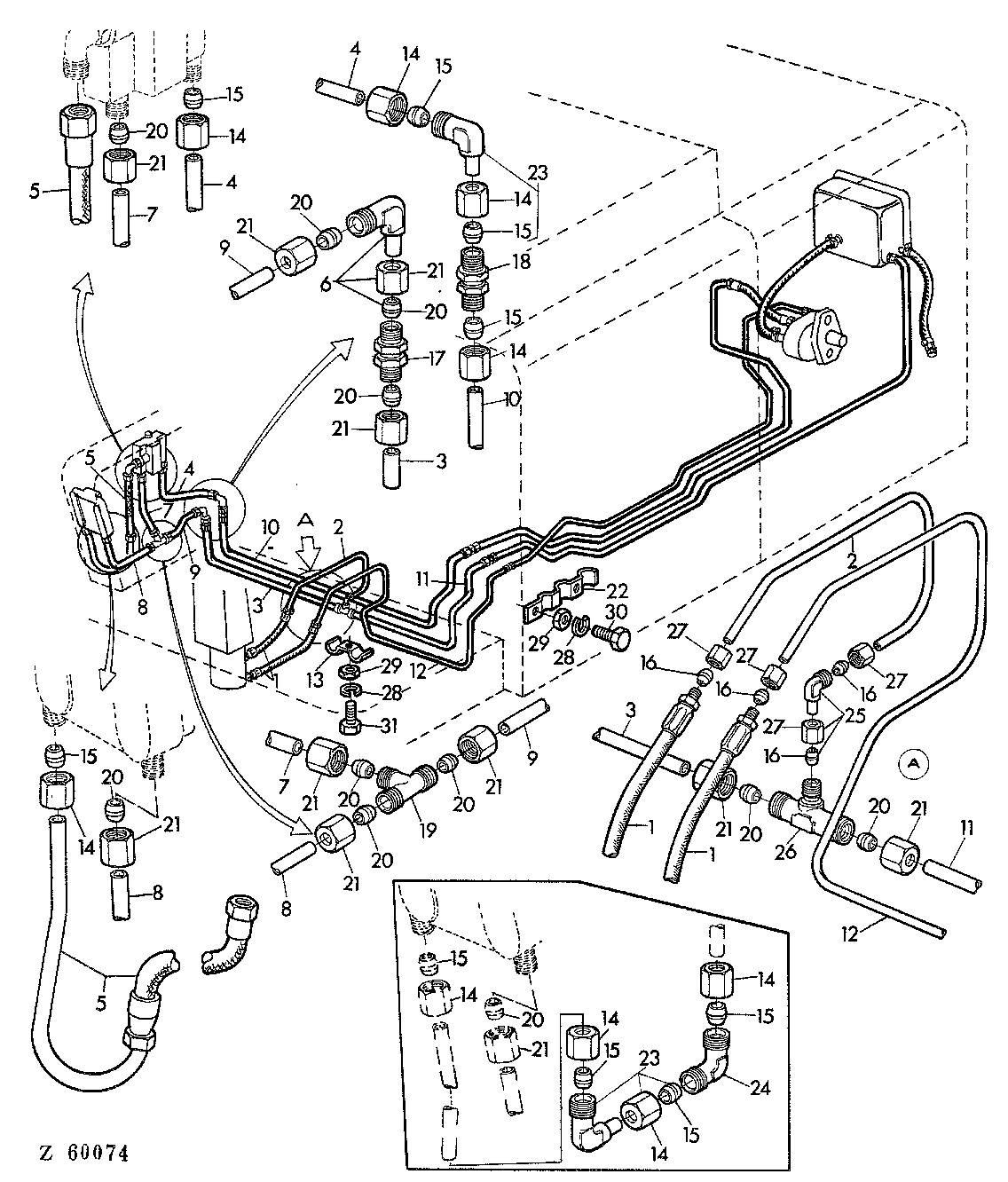

HYDRAULIC LINES,PUMP TO SELECTIVE CONTROL VALVE [01G03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ16228	2	HYDRAULIC HOSE	-
2	AZ22181	1	OIL LINE	INCL KEYS 16,27 (SUB FOR AZ19281)
3	AZ22182	1	OIL LINE	INCL KEYS 20,21 (SUB FOR AZ19282)
4	AZ22185	1	OIL LINE	INCL KEYS 14,15 (SUB FOR AZ19285)
5	AZ24872	1	HYDRAULIC HOSE	ASSY (SUB FOR AZ22186, OR AZ22187)
6	AZ21976	1	ELBOW FITTING	INCL KEYS 20,21 (SUB FOR AZ21277)
7	AZ22188	1	OIL LINE	INCL KEYS 20,21 (SUB FOR AZ19288)
8	AZ22189	1	OIL LINE	INCL KEYS 20,21 (SUB FOR AZ19289)
9	AZ22190	1	OIL LINE	INCL KEYS 20,21 (SUB FOR AZ19290)
10	AZ22213	1	OIL LINE	INCL KEYS 14,15 (SUB FOR AZ19313)
11	AZ22214	1	OIL LINE	INCL KEYS 20,21 (SUB FOR AZ19314)
12	AZ22215	1	OIL LINE	INCL KEYS 16,27 (SUB FOR AZ19315)
13	Z22063	1	CLAMP	-
14	Z32973	9	TUBE NUT	(SUB FOR Z22345)
15	Z32993	9	SLEEVE FITTING	(SUB FOR Z22675)
16	Z32995	4	SLEEVE FITTING	(SUB FOR Z22676)
17	Z32979	1	UNION FITTING	(SUB FOR Z22714)
18	Z32982	1	UNION FITTING	(SUB FOR Z27453)
19	Z32986	1	TEE FITTING	(SUB FOR Z27455)
20	Z32992	9	SLEEVE FITTING	(SUB FOR Z27450)
21	Z32972	9	TUBE NUT	(SUB FOR Z27459)
22	Z30599	1	CLAMP	-
23	AZ21975	2	ELBOW FITTING	INCL KEYS 14,15 (SUB FOR AZ21276)
24	Z32990	1	ELBOW FITTING	(SUB FOR Z30614)
25	AZ21974	1	Elbow Fitting	INCL KEYS 16,27 (SUB FOR AZ21275)
26	Z32987	1	TEE FITTING	(SUB FOR Z30616)
27	Z32974	4	TUBE NUT	(SUB FOR L20061)
28	12M7012	3	LOCK WASHER	6 MM
29	14M7027	3	NUT	M6
30	19M7168	2	Cap Screw	M6 X 30
31	19M7286	1	Cap Screw	M6 X 25

HYDRAULIC LINES,PUMP TO SELECTIVE CONTROL VALVE [01G03]
