FINGER BAR(CUTTING PLATFORM) [02I02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

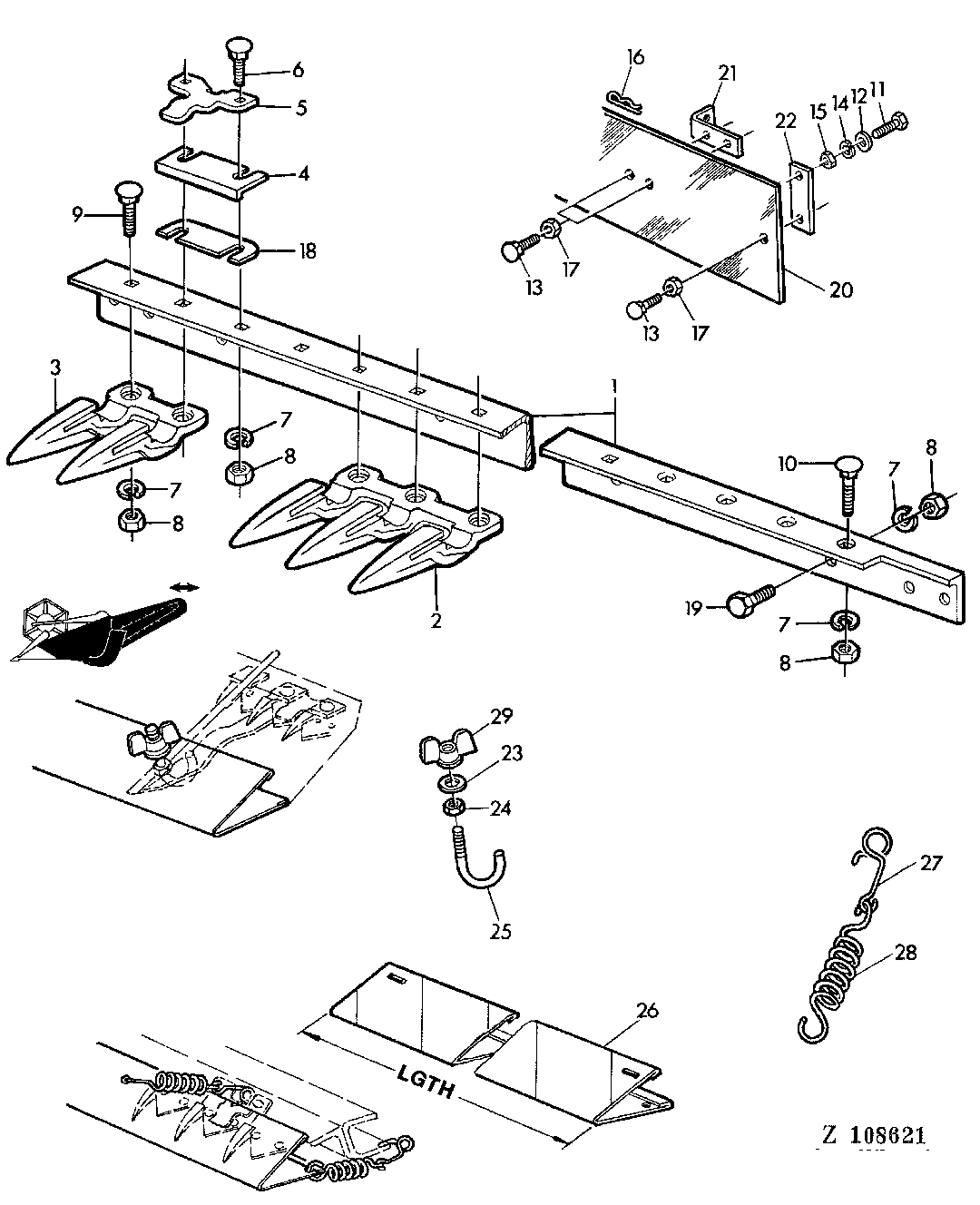

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	Z36168	1	CUTTERBAR	8,5' (SUB FOR Z21428)
1	Z36167	1	CUTTERBAR	7,9' (SUB FOR Z24323)
1	Z36169	1	CUTTERBAR	10' (SUB FOR Z21447)
2	H25603	1	KNIFE GUARD	-
3	Z11228	1	KNIFE GUARD	(SUB FOR H61954)
4	Z32049	1	WEAR PLATE	-
5	Z32690	1	HOLD-DOWN CLIP	(SUB FOR Z10417)
6	03M7087	1	BOLT	M10 X 38
7	12M7013	1	LOCK WASHER	10 MM
8	14M7140	1	Nut	M10
9	03M7085	1	Bolt	M10 X 30
10	09M7004	4	Bolt	M10 X 30
11	19M7163	1	Cap Screw	(A) M8 X 25
11	19M7163	1	Cap Screw	(B) M8 X 25
12	24M7036	1	Washer	(A) 9,5 MM
12	24M7036	1	Washer	(B) 9,5 MM
13	03M7091	4	Bolt	(A) M6 X 40
13	03M7091	4	Bolt	(B) M6 X 40
14	12M7008	1	LOCK WASHER	(A) 8 MM
14	12M7008	1	LOCK WASHER	(B) 8 MM
15	14M7140	1	Nut	(B) 8 MM
15	14M7140	1	Nut	(A) M8
16	L18955	2	Quick Lock Pin	(A)
16	L18955	2	Quick Lock Pin	(B)
17	14M7027	4	NUT	(A) M6
17	14M7027	4	NUT	(B) M6
18	Z25258	1	Guide	-
19	19M7167	1	Cap Screw	M10 X 25
20	Z34247	1	GUARD	7'9"
21	Z22575	2	ANGLE	(A)
21	Z22575	2	ANGLE	(B)
22	Z23498	1	PLATE	(A) RH
22	Z23498	1	PLATE	(B) RH
22	Z23497	1	PLATE	(B) LH
22	Z23497	1	PLATE	(A) LH
23	24M7024	1	Washer	(B) 9,5 MM
24	14M7029	1	Nut	(B) M8
25	Z40946	1	HOOK BOLT	(B) (SUB FOR AZ30553)
26	AZ32427	1	GUARD	(B) 8,5', LGTH = 2535 MM (SUB FOR Z41001)
26	AZ32432	1	GUARD	(B) 10', LGTH = 2992 MM (SUB FOR Z41002)
27	Z32078	1	Holder	(B)
28	Z25462	1	Extension Spring	(B)
29	Z20285	1	WING NUT	(B) 8 MM

FINGER BAR(CUTTING PLATFORM) [02I02]
