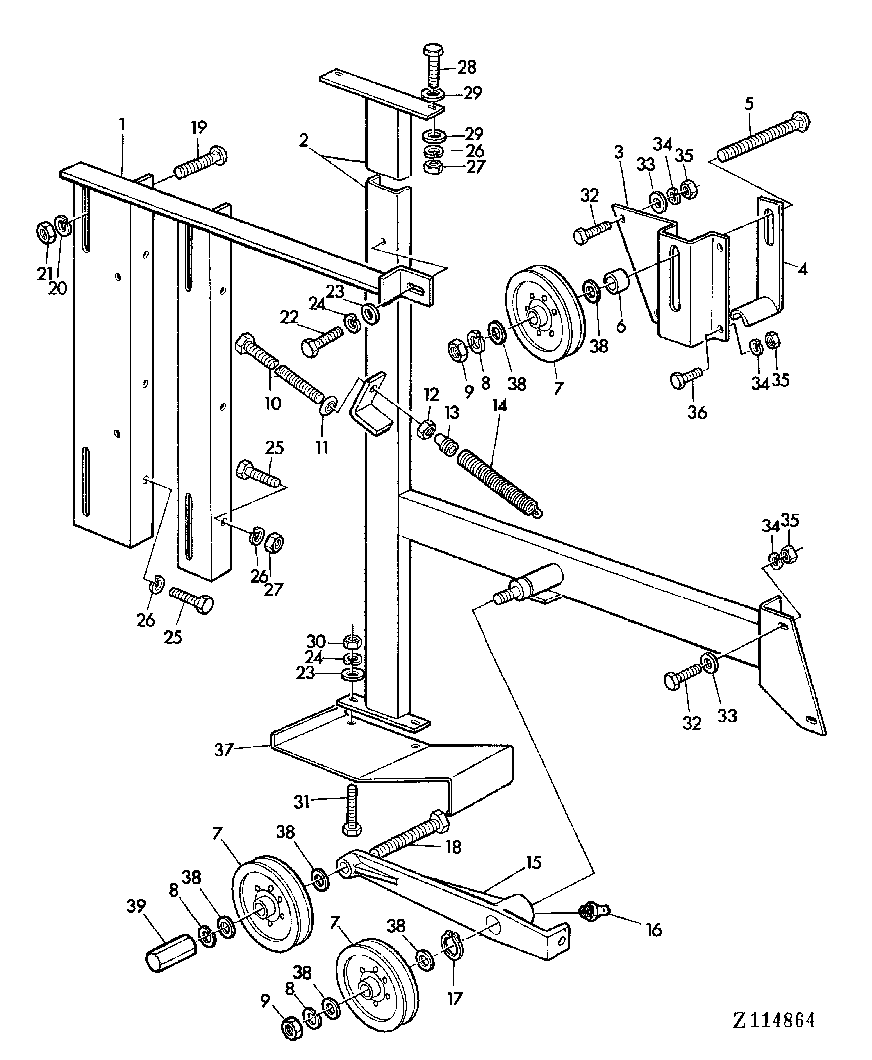

COUNTERSHAFT BRACKET,TENSIONER BRACKET,TENSIONER PULLEYS [B23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ24364	1	HOLDER	(A)
2	AZ24366	1	FRAME	(A)
3	Z35366	1	HOLDER	(A)
4	Z53028	1	GUIDE	(A) (SUB FOR Z35367, Z44610)
5	03M7078	1	BOLT	(A) M16X75
6	Z22659	1	SPACER	(A)
7	AZ29185	3	IDLER	(A) (SUB FOR AN30569)
8	12M7017	1	LOCK WASHER	(A) 16MM
9	14M7142	1	Nut	(A) M16
10	19H3091	1	CAP SCREW	(A) 1/2"X6"
11	47M7003	1	Washer	(A) 13MM
12	14H809	1	Nut	(A) 1/2"
13	BP1640E	1	PLUG	(A)
14	290SE	1	SPRING	(A)
15	Z11030	1	LEVER	(A)
16	58M7006	1	Lubrication Fitting	(A) 8X1MM
17	40M1831	1	Snap Ring	(A) 30X1,5MM
18	19M6754	1	Cap Screw	(A) M16X75
19	03M7126	1	BOLT	(A) M12X35
20	24M7038	1	Washer	(A) 14MM
21	14M7168	1	Lock Nut	(A) M14
22	19M7167	1	Cap Screw	(A) M10X25
23	24M7040	1	Washer	(A) 11MM
24	12M7013	1	LOCK WASHER	(A) 10MM
25	19M7163	1	Cap Screw	(A) M8X25
26	12M7008	1	LOCK WASHER	(A) 8MM
27	14M7029	1	Nut	(A) M8
28	19M7288	1	Cap Screw	(A) M8X30
29	24M7036	1	Washer	(A) 9MM
30	14M7140	1	Nut	(A) M10
31	19M7169	1	Cap Screw	(A) M10X35
32	19M7077	1	Cap Screw	(A) M6X20
33	Z26250	4	Washer	(A)
34	12M7012	1	LOCK WASHER	(A) 6MM
35	14M7027	1	NUT	(A) M6
36	19M7159	1	CAP SCREW	(A) M6X16
37	Z35402	1	HOLDER	(A)
38	24M3527	1	Washer	(A) 17MM
39	Z42046	1	HANDLE	(A)

COUNTERSHAFT BRACKET,TENSIONER BRACKET,TENSIONER PULLEYS [B23]
