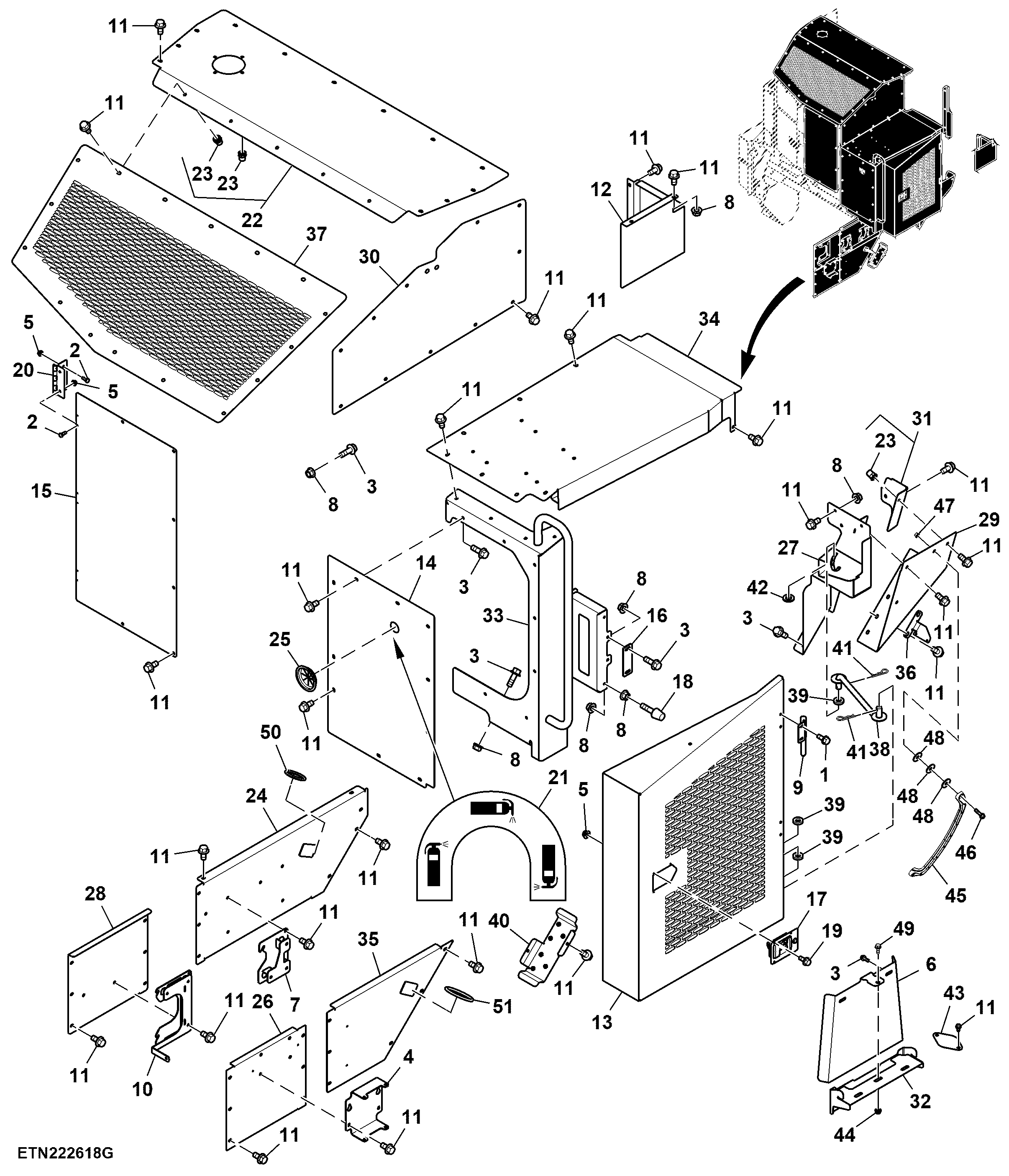

Shields, Supports and Side Panels, Tier 3 (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7866	6	Screw	M8 X 20
2	19M7640	12	Cap Screw	M5 X 12
3	19M7786	19	Screw	M10 X 30
4	CXT24800	1	Plate	-
5	14M7375	16	Flange Nut	M5
6	CXT33506	1	Shield	Spray Shield SUB FOR CXT28468
7	AXT15863	2	Mounting Parts	-
8	14M7296	4	Flange Nut	M10
9	AXE47100	2	Hinge	-
10	AXT17337	1	Bracket	-
11	19M7784	95	Screw	M10 X 20
12	CXT36958	1	Plate	SUB FOR CXT28471
13	AXT17548	1	Door	-
14	CXT28946	1	Plate	-
15	CXT29198	1	Plate	-
16	CXT24345	1	Plate	-
17	AT225885	1	Latch	-
18	AT183015	2	Bumper	-
19	19M9902	4	Screw	M5 X 12
20	LVU11682	3	Hinge	SUB FOR CXT12218
21	F290924	1	Label	Fire Extinguisher
22	AXT18736	1	Shield	Cooling Package
23	H154072	13	Nut	-
24	AXT18679	1	Shield	-
25	N373020	1	Plug	-
26	AXT18678	1	Shield	-
27	AXT18659	1	Cover	-
28	AXT18677	1	Shield	-
29	CXT31025	1	Plate	-
30	CXT30968	1	Plate	-
31	AXT18795	1	Shield	Hydraulic Tank
32	AXT20196	1	Shield	Oil Spray
33	AXT18681	1	Support	Pump Cover Extension
34	AXT18793	1	Cover	-
35	AXT18877	1	Panel	-
36	CXT31853	1	Plate	-
37	CXT31954	1	Plate	-
38	AT410788	1	Pin	-
39	T27260	3	Washer	-
40	AXT19264	1	Support	External Valve Mount
41	J16931	2	Pin	-
42	24M7047	1	Washer	13 X 24 X 2.500 mm
43	CXT33551	1	Plate	-
44	14M7299	3	Flange Nut	M12
45	L205817	1	Handrail	-
46	19M7804	2	Screw	M10 X 40
47	14M7723	10	Lock Nut	M10
48	24M7102	7	Washer	13.500 X 44 X 4 mm
49	19M7789	3	Screw	M12 X 30
50	4970042729	1	Ring	-
51	0240046361	1	Ring	-
