Открытый узел

Satellite Communication Extension

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

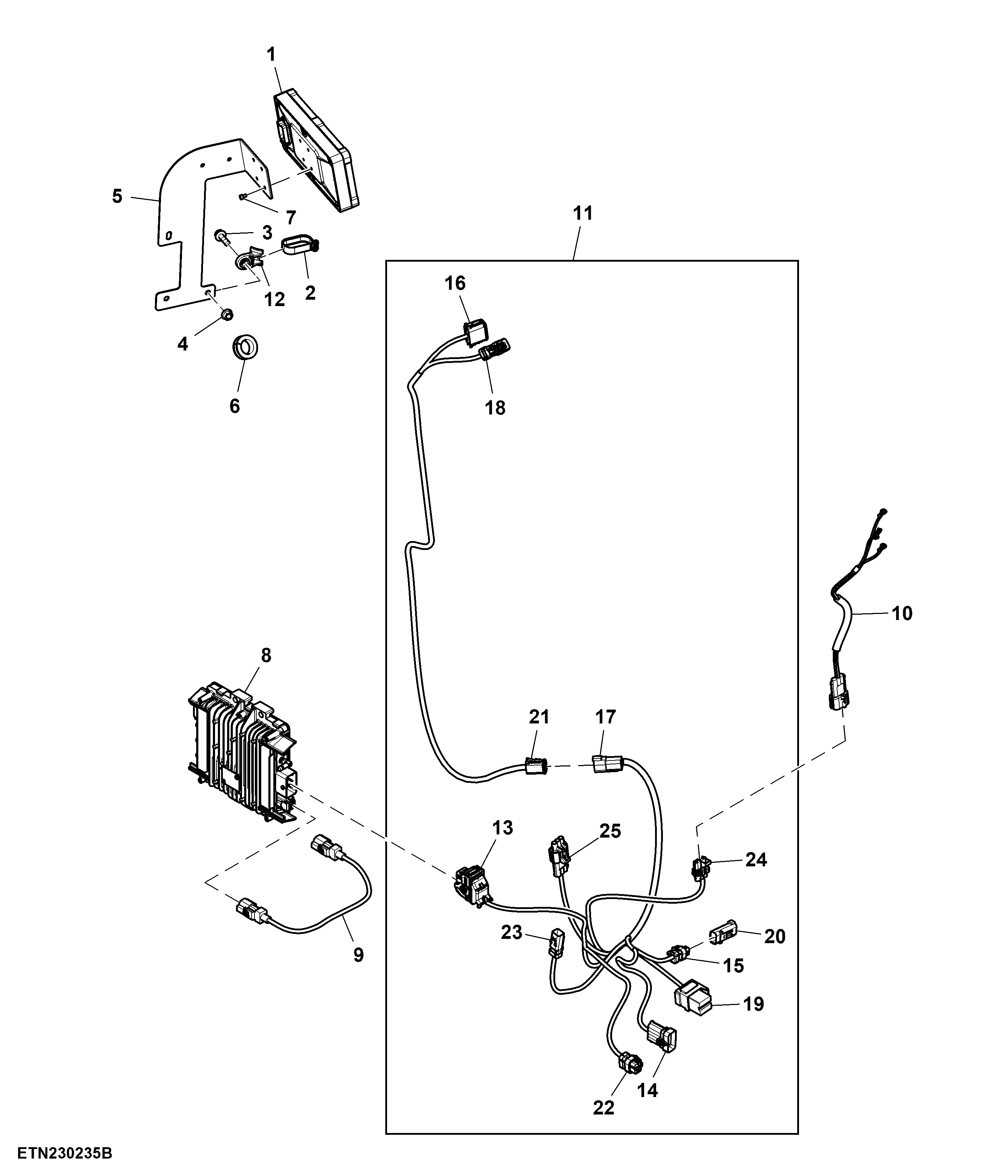

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CXT26504	1	Performance Monitor	-
2	H224073	1	Tie Band	-
3	19M7867	1	Screw	M8 X 25
4	14M7298	1	Flange Nut	M8
5	CXT26472	1	Bracket	-
6	R65475	1	Grommet	-
7	19M9043	4	Screw	M4 X 6
8	PFA11990	1	Electronic Control Unit	-
9	AXE50045	1	Wiring Harness	-
10	AL171862	1	Wiring Harness	-
11	AXT16186	1	Wiring Harness	-
12	N380408	1	Clamp	-
13	57M10617	1	Elec. Connector Housing	M1
13	57M10613	1	Elec. Connector Housing	-
13	57M10334	3	Elec. Connector Cavity Plug	Cavity L2, L3, L4
13	57M10333	32	Elec. Connector Cavity Plug	Cavity A1, A2, A4, B1, B2, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, F4, G3, G4, H3, H4, J1, H2, J3, J4, K4, K4,
13	57M10590	6	Elec. Connector Housing	Cavity G1, G2, H1, H2, K1, K2
13	57M10331	6	Elec. Connector Terminal	Cavity A2, B3, L1, M2, M3, M4,
13	57M10615	1	Elec. Connector Housing	A81 Control Unit MGT
14	57M7265	1	Elec. Connector Housing	Cab Main / Telematics Ext
14	57M10407	4	Elec. Connector Terminal	Cavity A, B, C, D
14	57M7252	4	Elec. Connector Terminal	Cavity E, F, G, J
14	57M9215	8	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, J
14	57M7259	2	Elec. Connector Seal	Cavity H, K
14	57M7281	1	Elec.Connect Locking Device	-
15	57M9772	1	Elec. Connector Housing	MCR Jumper / Telemetics EXT
15	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
15	57M11333	1	Elec. Connector Accessory	-
16	57M7681	1	Elec. Connector Terminal	-
16	R78069	7	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 7, 8, 11
16	57M7546	3	Elec. Connector Terminal	Cavity 1, 2 , 12
16	57M7634	1	Electrical Connector Assy	A8 Auteq Display
16	57M8537	2	Elec. Connector Terminal	Cavity 9, 10
17	57M7629	1	Elec. Connector Housing	700-2 Auteq Display Interface 2
17	57M8164	3	Elec. Connector Terminal	Cavity 1, 2, 5
17	57M8538	2	Elec. Connector Terminal	Cavity 3, 4
17	R78069	1	Elec. Connector Cavity Plug	Cavity 6
17	57M7678	1	Elec. Connector Terminal	-
18	57M9772	1	Elec. Connector Housing	-
18	57M10336	1	Elec. Connector Cavity Plug	-
18	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
18	57M9776	1	Elec. Connector Housing	A154 Auteq Can Terminator 2
19	ET15766	1	Elec. Connector Housing	H6 Satellite Communication Buzzer
19	57M7514	2	Elec. Connector Terminal	Cavity 85, 86
19	M75140	1	Clip	-
19	AL159759	1	Audible Warning Alarm	-
20	57M11334	1	Elec. Connector Accessory	-
21	57M7630	1	Electrical Connector Assy	700-1 Auteq Display Interface 1
21	57M7677	1	Elec. Connector Terminal	-
21	R78069	1	Elec. Connector Cavity Plug	Cavity 6
21	57M8537	2	Elec. Connector Terminal	Cavity 3, 4
21	57M8165	3	Elec. Connector Terminal	Cavity 1, 2, 5
22	57M9817	1	Elec. Connector Housing	A61 Ethernet Switch Module
22	57M9809	2	Elec. Connector Terminal	Cavity 2, 4
22	57M10336	2	Elec. Connector Cavity Plug	Cavity 1, 3
22	57M11335	1	Elec. Connector Accessory	-
23	57M9776	1	Elec. Connector Housing	A153 Auteq Can Terminator 1
23	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
23	57M11134	1	Elec. Connector Housing	-
24	57M7280	1	Elec. Connector Housing	Auxiliary Power Strip
24	57M7299	2	Elec. Connector Terminal	Cavity A, B
24	57M7491	1	Elec. Connector Terminal	Cavity B
24	57M9217	3	Elec. Connector Seal	Cavity A, B, C
24	57M7274	1	Elec. Connector Accessory	-

Satellite Communication Extension
