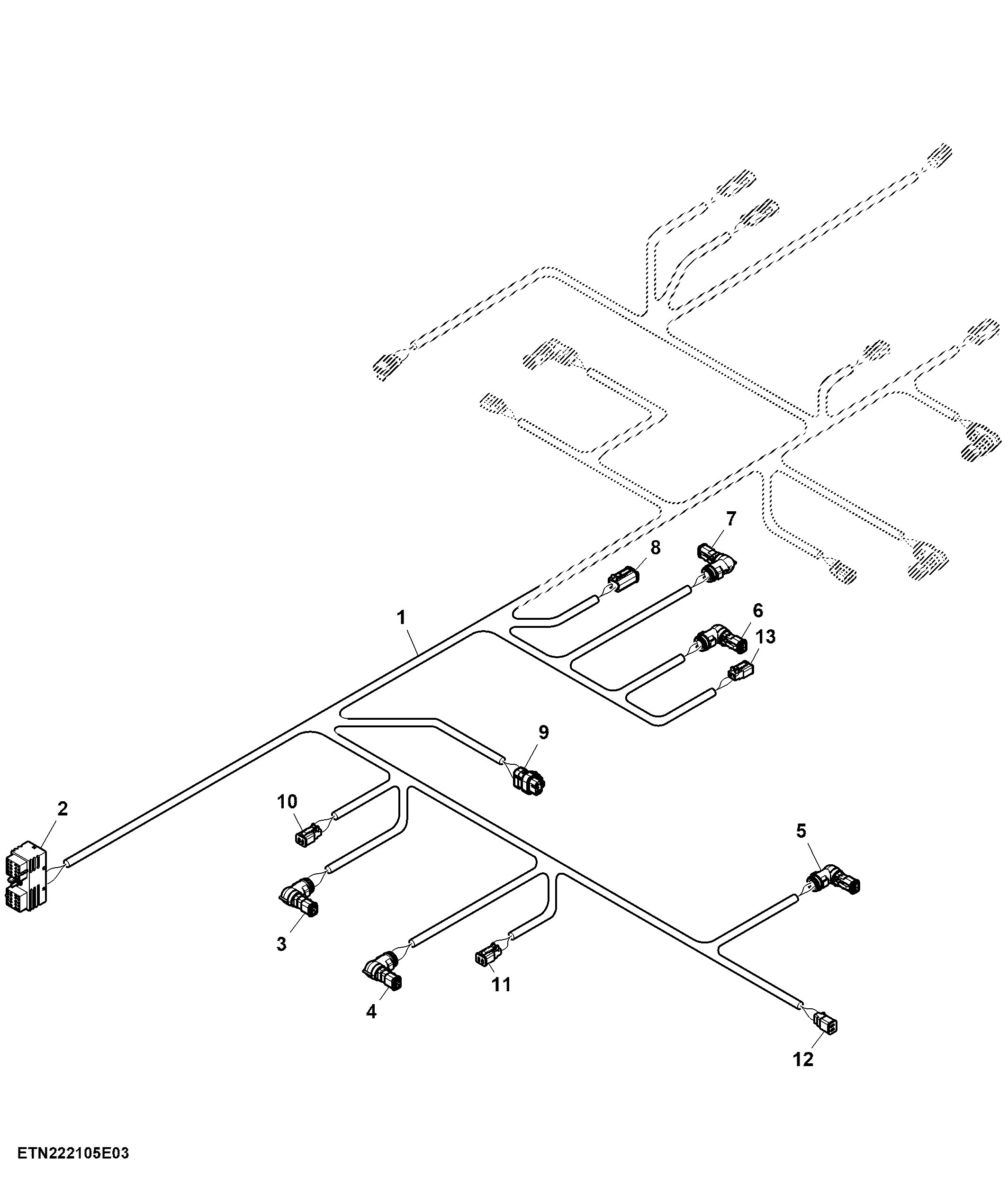

Pump Drive Wiring Harness, Tier 3 (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXT21948	1	Wiring Harness	Pump Drive Harness SUB FOR AXT18316
2	57M7671	1	Electrical Connector Assy	Left Frame Interconnect
2	57M8165	38	Elec. Connector Terminal	Cavity 1–38
2	R78069	2	Elec. Connector Cavity Plug	Cavity 39, 40
3	57M14181	1	Elec. Connector Housing	Y61 Base Cutter Pump Forward Solenoid
3	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
3	57M8022	1	Elec.Connect Locking Device	-
3	57M14180	1	Elec. Connector Accessory	-
4	57M14181	1	Elec. Connector Housing	Y132 Center Feed Pump Forward Solenoid
4	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
4	57M8022	1	Elec.Connect Locking Device	-
4	57M14180	1	Elec. Connector Accessory	-
5	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
5	57M14180	1	Elec. Connector Accessory	-
5	57M8022	1	Elec.Connect Locking Device	-
5	57M14181	1	Elec. Connector Housing	Y131 Rear Feed Pump Reverse Solenoid
6	57M14181	1	Elec. Connector Housing	Y65 Cooling Fan Pump Reverse Solenoid
6	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
6	57M8022	1	Elec.Connect Locking Device	-
6	57M14180	1	Elec. Connector Accessory	-
7	57M14181	1	Elec. Connector Housing	Y83 Primary Extractor Pump Solenoid
7	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
7	57M8022	1	Elec.Connect Locking Device	-
7	57M14180	1	Elec. Connector Accessory	-
8	57M9033	1	Elec. Connector Housing	B77 Extractor Residue Flowmeter
8	57M8017	1	Elec. Connector Housing	-
8	57M7618	1	Electrical Connector Assy	-
8	57M8165	3	Elec. Connector Terminal	Cavity 1, 2, 4
8	R78069	1	Elec. Connector Cavity Plug	Cavity 3
9	57M9782	1	Elec. Connector Housing	B79 Pump Drive Pressure Sensor
9	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 3
9	57M11334	1	Elec. Connector Accessory	-
10	57M10517	1	Elec. Connector Housing	Y62 Base Cutter Pump Reverse Solenoid
10	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
10	57M8022	1	Elec.Connect Locking Device	-
10	57M10337	1	Elec. Connector Accessory	-
11	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
11	57M10337	1	Elec. Connector Accessory	-
11	57M8022	1	Elec.Connect Locking Device	-
11	57M10517	1	Elec. Connector Housing	Y133 Center Feed Pump Reverse Solenoid
12	57M10517	1	Elec. Connector Housing	Y130 Rear Feed Pump Forward Solenoid
12	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
12	57M8022	1	Elec.Connect Locking Device	-
12	57M10337	1	Elec. Connector Accessory	-
13	57M10517	1	Elec. Connector Housing	Y64 Cooling Fan Pump Forward Solenoid
13	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
13	57M8022	1	Elec.Connect Locking Device	-
13	57M10337	1	Elec. Connector Accessory	-

Pump Drive Wiring Harness, Tier 3 (1/2)
