Открытый узел

Primary Extractor Housing, Adjustable

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

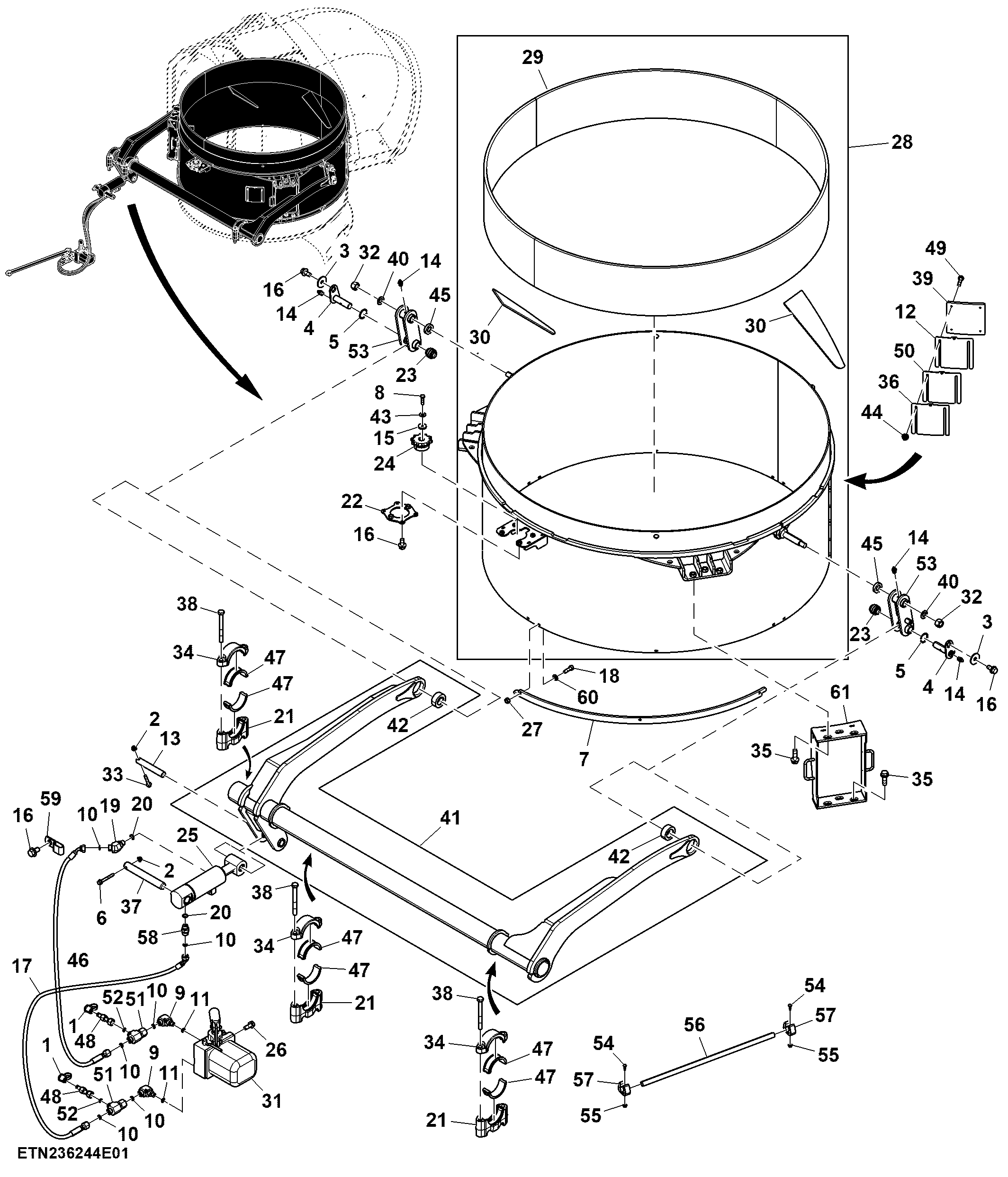

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT205083	2	Cap	-
2	14M7296	2	Flange Nut	M10
3	24M7101	2	Washer	11 X 34 X 3 mm
4	AXT17531	2	Pin	-
5	R109148	2	Snap Ring	-
6	19M7810	1	Screw	M10 X 80
7	CXT30561	4	Sealing Trim	-
8	19H1914	1	Cap Screw	1/4" X 1"
9	38H1435	2	Elbow Fitting	-
10	T77613	6	O-Ring	-
11	R28782	2	O-Ring	-
12	CXT30178	4	Shim	TK = 2.66 mm
13	CXT24699	1	Pin	-
14	JD7759	4	Lubrication Fitting	-
15	24H1928	1	Washer	11/32" X 1-3/8" X 1/4"
16	19M7784	7	Screw	M10 X 20
17	AXT18687	1	Hydraulic Hose	LGTH = 1484 mm, Hydraulic Cylinder to Hand Pump
18	19M8406	12	Screw	M6 X 20
19	38H3045	1	Elbow Fitting	-
20	R26448	2	O-Ring	-
21	N262887	3	Bearing Cap	-
22	AXT21605	1	Sheet	SUB FOR AXT18842
23	AN205862	2	Self-Aligning Bushing	-
24	AXT13039	1	Chain Sprocket	-
25	AHC16399	1	Hydraulic Cylinder	-
25	AH212090	1	Hydraulic Cylinder Kit	Bore Seal Kit
25	AHC13485	1	Hydraulic Cylinder Kit	Rod Seal Kit
26	N10214	2	Self-Locking Screw	-
27	14M7272	12	Nut	M6
28	AXT19010	1	Raw Weldment	-
29	0291363721	1	Wear Plate	-
30	CB01422414	6	Vane	-
31	AT172728	1	Pump	-
32	14M7594	2	Lock Nut	M20
33	19M7807	1	Screw	M10 X 60
34	N262525	3	Bearing Cap	-
35	19M7794	18	Screw	M16 X 50
36	CXT30177	4	Shim	TK = 1.9 mm
37	CXT16182	1	Pin	-
38	19M7954	6	Cap Screw	M16 X 150
39	CXT30176	4	Wear Plate	-
40	24M7051	2	Washer	21 X 37 X 3 mm
41	AXT16940	1	Sheet	-
42	CXT24223	2	Boss	-
43	24H1776	1	Washer	5/16" X 47/64" X 0.065"
44	14M7303	16	Flange Nut	M6
45	CXT28124	2	Spacer	-
46	AXT18686	1	Hydraulic Hose	LGTH = 1556 mm, Hydraulic Cylinder to Hand Pump
47	N263146	6	Insert	-
48	RE60700	2	Diagnostic Coupling	-
49	19M9818	16	Cap Screw	M6 X 25
50	CXT30179	4	Shim	TK = 3.4 mm
51	38H5419	2	Adapter Fitting	-
52	T77814	2	O-Ring	-
53	AXT16941	2	Sheet	-
54	19M7640	2	Cap Screw	M5 X 12
55	14M7375	2	Flange Nut	M5
56	AT214655	1	Pipe	-
57	AT214710	2	Clip	-
58	38H3160	1	Adapter Fitting	-
59	R127657	1	Clamp	-
60	24M7293	12	Washer	6.500 X 13 X 1.600 mm
61	AXT20195	3	Sheet	-

Primary Extractor Housing, Adjustable
