Большое обновление пильных узлов

Смотреть

Тип техники

Бренд

Машина

Большое обновление пильных узлов

Смотреть

Открытый узел

Primary Extractor Fan and Blade Mount

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXT16473	1	Cover	-
2	E12379	4	Nut	-
3	0331385113	1	Shaft Key	-
4	K40016	1	Lock Nut	-
5	14M7723	4	Lock Nut	M10
6	AXT16609	1	Mounting Parts	SUB FOR AXT12531
7	24H1536	2	Washer	1-17/32" X 2-1/4" X 0.060"
8	YZ101480	1	Seal	-
9	CXT22425	1	Wear Plate	-
10	AXT20347	1	Raw Weldment	SUB FOR AXT18478
11	T56112	4	Elbow Fitting	-
12	CB01421974	4	Isolator	-
13	AXT13080	1	Indicating Gage	-
14	19M9818	12	Cap Screw	M6 X 25
15	AXT16612	1	Bracket	ORDER AXT19336
15	AXT20877	1	Deflector	SUB FOR AXT19336
16	CXT32149	2	Hydraulic Hose	LGTH = 440 mm, Raw Weldment to Elbow Fitting
17	CXT18530	1	Hub	SUB FOR AXT15253
18	14M7303	12	Flange Nut	M6
19	19M7791	8	Bolt	M12 X 40
20	SW80COUS	1	Chain Link	-
21	CXT18530	1	Hub	SUB FOR CXT27080
22	0570005455	1	Check Valve	-
23	N203952	1	O-Ring	-
24	14M7299	8	Flange Nut	M12
25	CXT25429	1	Washer	-
26	CXT16363	1	Locking Collar	-
27	JD7759	3	Lubrication Fitting	-
28	N309534	2	U-Bolt	-
29	CXT12225	1	Cover	-
30	CXT22974	1	Polymer Resin	-
31	CXT32774	1	Seal	-
32	CXT27231	1	Bearing	-
33	AXT16378	1	Blade	-
34	24M7242	4	Washer	21.400 X 42 X 5 mm
35	CXT26743	1	Lock Nut	-
36	CXT22405	1	Rod	-
37	19M7794	20	Screw	M16 X 50
38	CXT22081	1	Gasket	-
39	CXT35157	1	Cover	SUB FOR CXT25469
40	19M7866	4	Screw	M8 X 20
41	CXT22080	1	Gasket	-
42	CXT21288	1	Shaft	-
43	CXT21311	1	Bearing Housing W/O Bearing	-
44	CXT30123	4	Wear Plate	-
45	19M7789	16	Screw	M12 X 30
46	19M9137	4	Cap Screw	M20 X 120
47	19M7784	12	Screw	M10 X 20
48	19M10213	2	Cap Screw	M20 X 40
49	CXT30892	1	Rod	-
50	24M7047	2	Washer	13 X 24 X 2.500 mm
51	14M7275	4	Nut	M12
52	CXT30890	1	Plate	-
53	CXT30897	1	Chain Link	Z = 19, Hood Rotate Chain
54	CXT26136	1	Bracket	-
55	AXT20785	1	Support	SUB FOR AXT19229
56	CXT32150	2	Hydraulic Hose	LGTH = 1165 mm, Raw Weldment to Elbow Fitting
57	14M7679	16	Lock Nut	M16
58	11M7085	1	Cotter Pin	6.300 X 63 mm, SUB FOR 0700014289
59	19M7787	2	Screw	M12 X 20

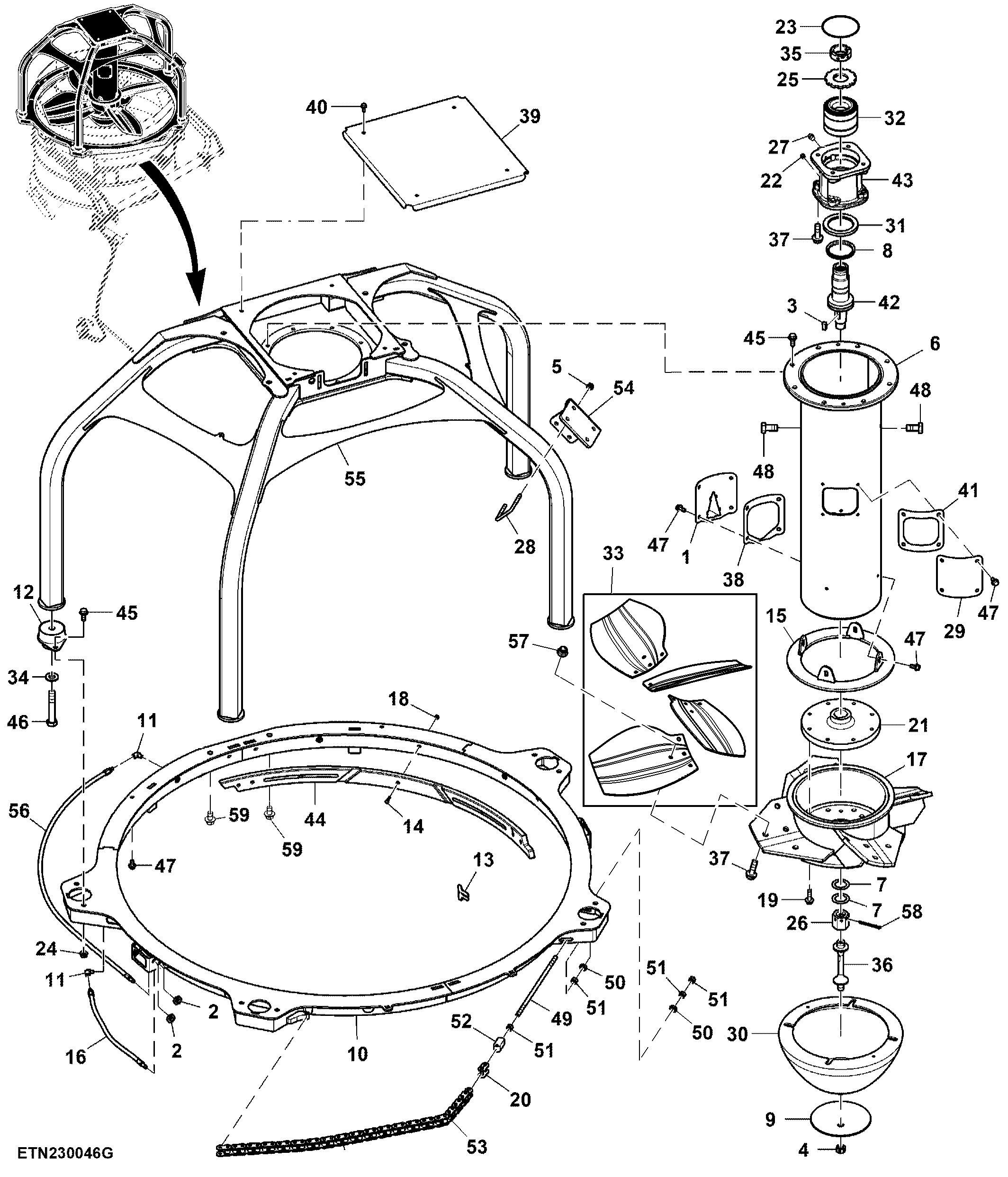

Primary Extractor Fan and Blade Mount
