Left Frame Wiring Harness and Connectors (3/3) ( - 220300)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M10401	1	Elec. Connector Accessory	-
1	57M10366	1	Elec. Connector Housing	A11 Vehicle Control Unit J3
1	57M11960	1	Elec. Connector Seal	Cavity 5
1	57M11959	1	Elec. Connector Seal	Cavity 2
1	57M11973	1	Elec. Connector Seal	Cavity 1
1	57M10333	27	Elec. Connector Cavity Plug	Cavity 9, 11, 12, 13, 16, 20, 21, 22, 23, 24, 25, 26, 27, 28, 31, 32, 33, 34, 35, 36, 37, 38, 39, 44, 45, 46, 47
1	57M10334	5	Elec. Connector Cavity Plug	Cavity 6, 18, 30, 42, 53
1	57M10399	2	Elec. Connector Cavity Plug	Cavity 3, 4
1	57M10617	1	Elec. Connector Housing	Cavity 41
1	57M10331	2	Elec. Connector Terminal	Cavity 17, 29
1	57M10330	13	Elec. Connector Terminal	Cavity 7, 8, 10, 14, 15, 19, 40, 43, 48, 49, 50, 51, 52
1	57M10376	1	Elec. Connector Terminal	Cavity 5
1	57M10332	1	Elec. Connector Terminal	Cavity 2
1	57M10217	1	Elec. Connector Terminal	Cavity 1
2	57M10399	1	Elec. Connector Cavity Plug	Cavity 1
2	57M11973	1	Elec. Connector Seal	Cavity 5
2	57M11960	1	Elec. Connector Seal	Cavity 4
2	57M11959	2	Elec. Connector Seal	Cavity 2, 3
2	57M10334	3	Elec. Connector Cavity Plug	Cavity 29, 41, 53
2	57M10333	32	Elec. Connector Cavity Plug	Cavity 7, 8, 9, 10, 11, 12, 16, 19, 20, 21, 22, 23, 24, 26, 27, 28, 31, 32, 33, 34, 35, 36, 37, 38, 44, 45, 46, 47, 48, 49, 50, 51
2	57M10330	8	Elec. Connector Terminal	Cavity 13, 14, 15, 25, 39, 40, 43, 52
2	57M10331	5	Elec. Connector Terminal	Cavity 6, 17, 18, 30, 42
2	57M10217	1	Elec. Connector Terminal	Cavity 5
2	57M10376	1	Elec. Connector Terminal	Cavity 4
2	57M10332	2	Elec. Connector Terminal	Cavity 2, 3
2	57M10124	1	Elec. Connector Housing	A11 Vehicle Control Unit J2
3	57M10331	6	Elec. Connector Terminal	Cavity L1, L2, L3, L4, M1, M2
3	57M10334	2	Elec. Connector Cavity Plug	Cavity M3, M4
3	57M10333	21	Elec. Connector Cavity Plug	Cavity A2, A3, B2, B3, B4, C1, C2, C3, D1, D2, E1, E3, F1, F2, F4, G1, G2, G3, G4, H1, J2
3	57M10330	17	Elec. Connector Terminal	Cavity A4, C4, D3, D4, E2, E4, F3, H2, H3, H4, J1, J3, J4, K1, K2, K3, K4
3	57M10590	2	Elec. Connector Housing	Cavity A1, B1
3	57M10613	1	Elec. Connector Housing	-
3	57M10614	1	Elec. Connector Housing	A11 Vehicle Control Unit J1
4	57M9957	1	Elec. Connector Housing	Aux Sensors
4	57M11287	1	Elec. Connector Accessory	-
4	57M8165	5	Elec. Connector Terminal	Cavity 1–5
4	R78069	1	Elec. Connector Cavity Plug	Cavity 6
5	57M8983	1	Elec. Connector Housing	A51-1 Fuse Box Black
5	R78064	2	Elec. Connector Cavity Plug	Cavity F, H
5	57M9216	2	Elec. Connector Seal	Cavity C, D
5	57M9219	4	Elec. Connector Seal	Cavity A, B, E, G
5	57M7298	4	Elec. Connector Terminal	Cavity A, B, E, G
5	57M9083	1	Elec. Connector Accessory	-
5	57M11425	2	Elec. Connector Terminal	Cavity C, D
6	57M10605	1	Elec. Connector Housing	A9 Propulsion Controller J1
6	57M10604	1	Elec. Connector Housing	-
6	57M10330	4	Elec. Connector Terminal	Cavity E1, E2, F1, F2
6	57M10331	1	Elec. Connector Terminal	Cavity H4
6	57M10333	18	Elec. Connector Cavity Plug	Cavity A1, A2, A3, A4, B1, B2, B4, C1, C2, C4, D1, D2, D3 , D4, E3, E4, F3, F4
6	57M10334	7	Elec. Connector Cavity Plug	Cavity G1, G2, G3, G4, H1, H2, H3
7	57M10590	2	Elec. Connector Housing	Cavity A1, B1
7	57M10613	1	Elec. Connector Housing	-
7	57M10334	4	Elec. Connector Cavity Plug	Cavity L3, L4, M3, M4
7	57M10333	19	Elec. Connector Cavity Plug	Cavity A2, A3, B2, B3, D1, D2, E1, E2, E3, F1, F2, F4, G1, G2, G3, H3, J3, J4, K3
7	57M10331	4	Elec. Connector Terminal	Cavity L1, L2, M1, M2
7	57M10330	17	Elec. Connector Terminal	Cavity A4, B4, C1, C2, C3, C4, D3, D4, E4, F3, G4, H1, H2, H4, J1, J2, K1, K2, K4
7	57M10614	1	Elec. Connector Housing	A9 Propulsion Controller J2
8	57M7298	2	Elec. Connector Terminal	Cavity B, G
8	57M9219	1	Elec. Connector Seal	Cavity E
8	57M10667	2	Elec. Connector Cable Seal	Cavity B, G
8	57M9216	4	Elec. Connector Seal	Cavity A, C, D, F
8	R78064	1	Elec. Connector Cavity Plug	Cavity H
8	57M9547	1	Elec. Connector Terminal	Cavity E
8	57M7491	4	Elec. Connector Terminal	Cavity A, C, D, F
8	57M8984	1	Elec. Connector Housing	A51-2 Fuse Box Gray
9	57M13368	1	Elec. Connector Terminal	GND1-3 Ground Post 2
10	57M8897	1	Elec. Connector Terminal	GND1-2 Ground Post 1
11	57M10611	1	Elec. Connector Housing	A9 Propulsion Controller J3
11	57M10604	1	Elec. Connector Housing	-
11	57M10330	11	Elec. Connector Terminal	Cavity A1, B1, C3, C4, D1, D3, E2, E4, F1, F3, F4
11	57M10331	3	Elec. Connector Terminal	Cavity G1, H1, H2
11	57M10333	13	Elec. Connector Cavity Plug	Cavity A2, A3, A4, B2, B3, B4, C1, C2, D2, D4, E1, E3, F2
11	57M10334	5	Elec. Connector Cavity Plug	Cavity G2, G3, G4, H3, H4
12	57M13369	1	Elec. Connector Terminal	F101 Rear Control Unit Fuse
13	AXT17700	1	Wiring Harness	-

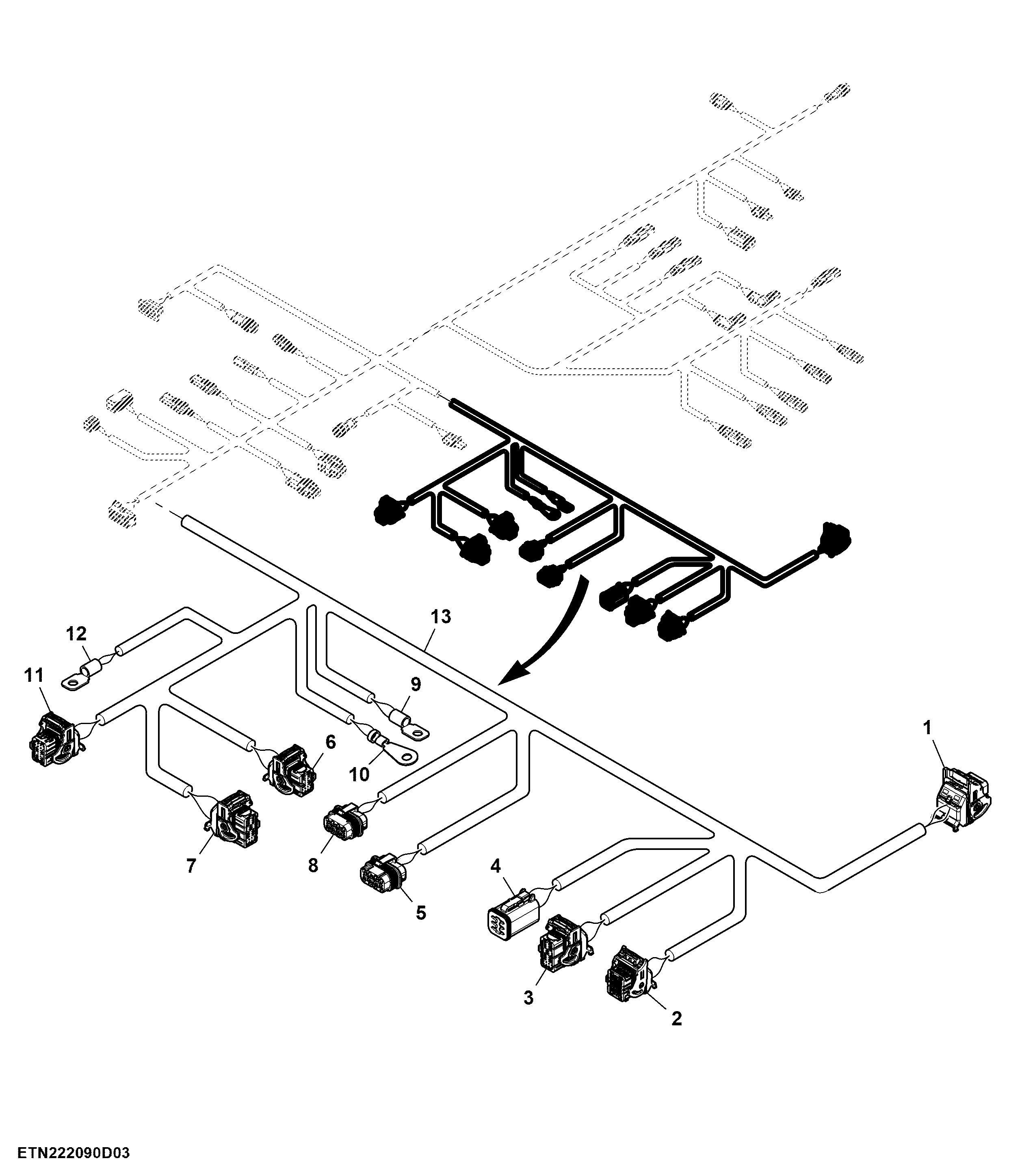

Left Frame Wiring Harness and Connectors (3/3) ( - 220300)
