Left Frame Wiring Harness and Connectors (2/3) (220301 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M11899	1	Elec. Connector Accessory	-
1	57M12038	1	Elec. Connector Housing	Rear Frame Interconnect 1
1	R78069	1	Elec. Connector Cavity Plug	Cavity 5
1	57M8164	4	Elec. Connector Terminal	Cavity 6, 7, 8, 9
1	57M7613	2	Elec. Connector Terminal	Cavity 1, 3
1	57M8260	2	Elec. Connector Terminal	Cavity 2, 4
2	57M8035	1	Nut	-
3	57M11446	1	Elec. Connector Housing	Rear Frame Interconnect 2
3	57M9695	1	Elec. Connector Terminal	-
3	57M8538	4	Elec. Connector Terminal	Cavity A, B, M, N
3	57M8164	7	Elec. Connector Terminal	Cavity C, E, G, H, J, K, L
3	57M9525	1	Elec. Connector Terminal	Cavity D
3	R78069	2	Elec. Connector Cavity Plug	Cavity F, P
4	57M8428	1	Electrical Connector Assy	-
5	57M10630	5	Clip Kit	-
6	RE12363	1	Electrical Connector Assy	Y9 High / Low Solenoid
6	57M9543	2	Elec. Connector Terminal	Cavity A, B
6	57M9549	2	Elec. Connector Seal	Cavity A, B
7	RE12363	1	Electrical Connector Assy	Y12 Park Brake Solenoid
7	57M9543	2	Elec. Connector Terminal	Cavity A, B
7	57M9549	2	Elec. Connector Seal	Cavity A, B
8	R78069	1	Elec. Connector Cavity Plug	Cavity 3
8	57M7618	1	Electrical Connector Assy	-
8	57M9033	1	Elec. Connector Housing	B49 Park Brake Pressure Sensor
8	57M8165	3	Elec. Connector Terminal	Cavity 1, 2, 4
9	RE258807	13	Tie Band	-
10	57M10517	1	Elec. Connector Housing	Y40 Primary Hood Rotate Left / CW Solenoid
10	57M8022	1	Elec.Connect Locking Device	-
10	57M10337	1	Elec. Connector Accessory	-
10	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
11	57M8022	1	Elec.Connect Locking Device	-
11	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
11	57M10337	1	Elec. Connector Accessory	-
11	57M10517	1	Elec. Connector Housing	Y41 Primary Hood Rotate Right / CCW Solenoid
12	57M10517	1	Elec. Connector Housing	Y5 Pressure Comp Unloading Solenoid
12	57M8022	1	Elec.Connect Locking Device	-
12	57M10337	1	Elec. Connector Accessory	-
12	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
13	R78065	2	Elec. Connector Terminal	Cavity 1, 2
13	57M8022	1	Elec.Connect Locking Device	-
13	57M14181	1	Elec. Connector Housing	Y18 Elevator Left Swing Solenoid
13	57M14180	1	Elec. Connector Accessory	-
14	57M8022	1	Elec.Connect Locking Device	-
14	57M14180	1	Elec. Connector Accessory	-
14	R78065	2	Elec. Connector Terminal	Cavity 1, 2
14	57M14181	1	Elec. Connector Housing	Y19 Elevator Right Swing Solenoid
15	57M10517	1	Elec. Connector Housing	Y1 Front Feed Function Forward Solenoid
15	57M8022	1	Elec.Connect Locking Device	-
15	57M10337	1	Elec. Connector Accessory	-
15	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
16	57M8022	1	Elec.Connect Locking Device	-
16	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
16	57M10337	1	Elec. Connector Accessory	-
16	57M10517	1	Elec. Connector Housing	Y87 Topper Left Solenoid
17	57M10517	1	Elec. Connector Housing	Y2 Front Feed Functions Reverse Solenoid
17	57M8022	1	Elec.Connect Locking Device	-
17	57M10337	1	Elec. Connector Accessory	-
17	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
18	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
18	57M8022	1	Elec.Connect Locking Device	-
18	57M10517	1	Elec. Connector Housing	Y88 Topper Right Solenoid
18	57M10337	1	Elec. Connector Accessory	-
19	57M10517	1	Elec. Connector Housing	Y15 Left Side Knife Solenoid
19	57M8022	1	Elec.Connect Locking Device	-
19	57M10337	1	Elec. Connector Accessory	-
19	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
20	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
20	57M10337	1	Elec. Connector Accessory	-
20	57M8022	1	Elec.Connect Locking Device	-
20	57M10517	1	Elec. Connector Housing	Y16 Right Side Knife Solenoid
21	AXT21014	1	Wiring Harness	-
22	H224073	16	Tie Band	-
23	CXT30963	1	Bracket	-
24	AXT16492	1	Wiring Harness	Vehicle Controller Unit Harness
25	57M8285	2	Elec. Connector Terminal	F100 Front Control Unit Fuse
26	CXT26768	1	Battery Cable	-
27	AA74210	1	Wiring Harness	A11 Vehicle Control Unit J4
28	57M9555	2	Clip	-

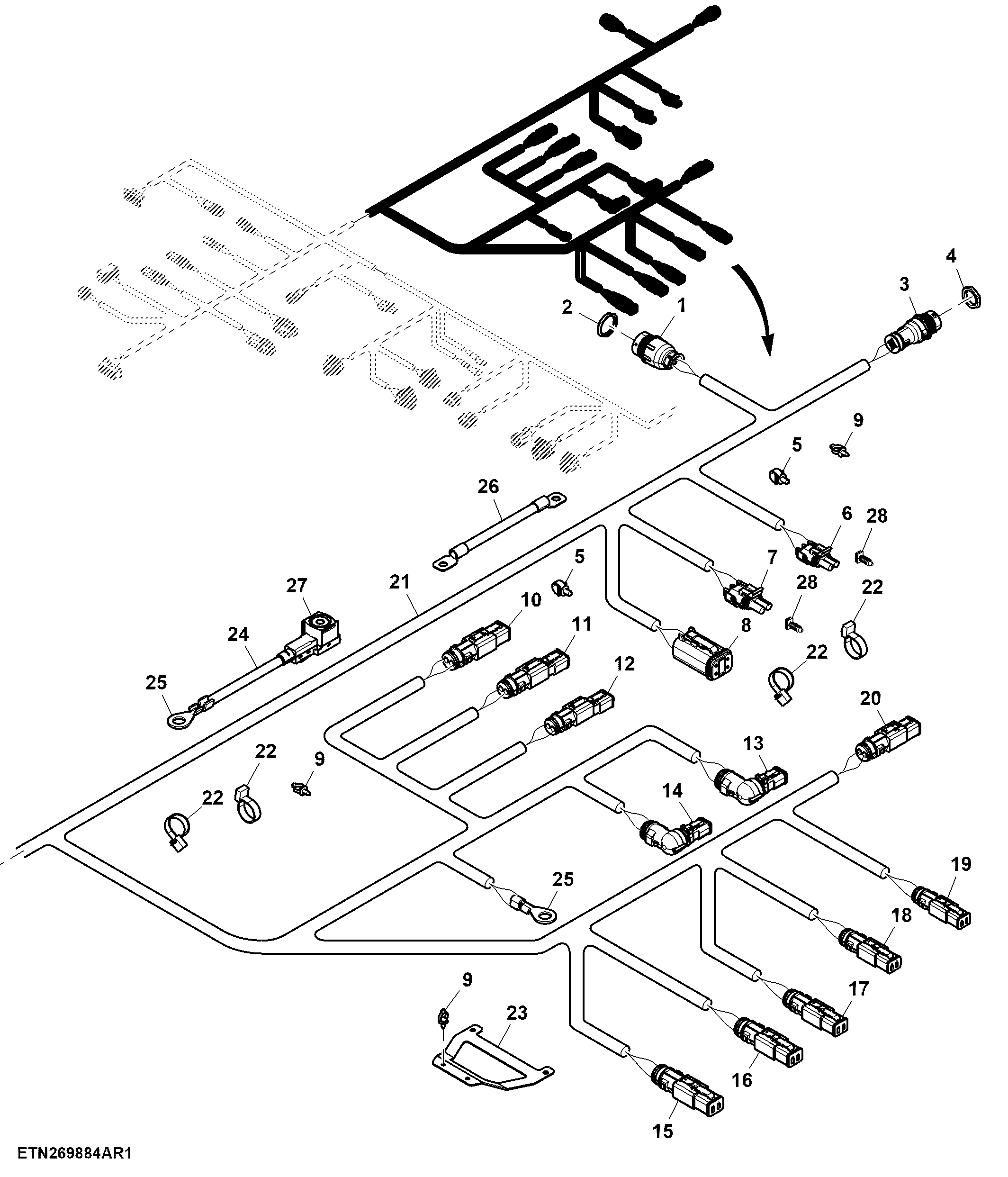

Left Frame Wiring Harness and Connectors (2/3) (220301 - )
