Ground Drive Lines (Louisiana Only)

Ground Drive Lines (Louisiana Only)

Ground Drive Lines (Louisiana Only)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

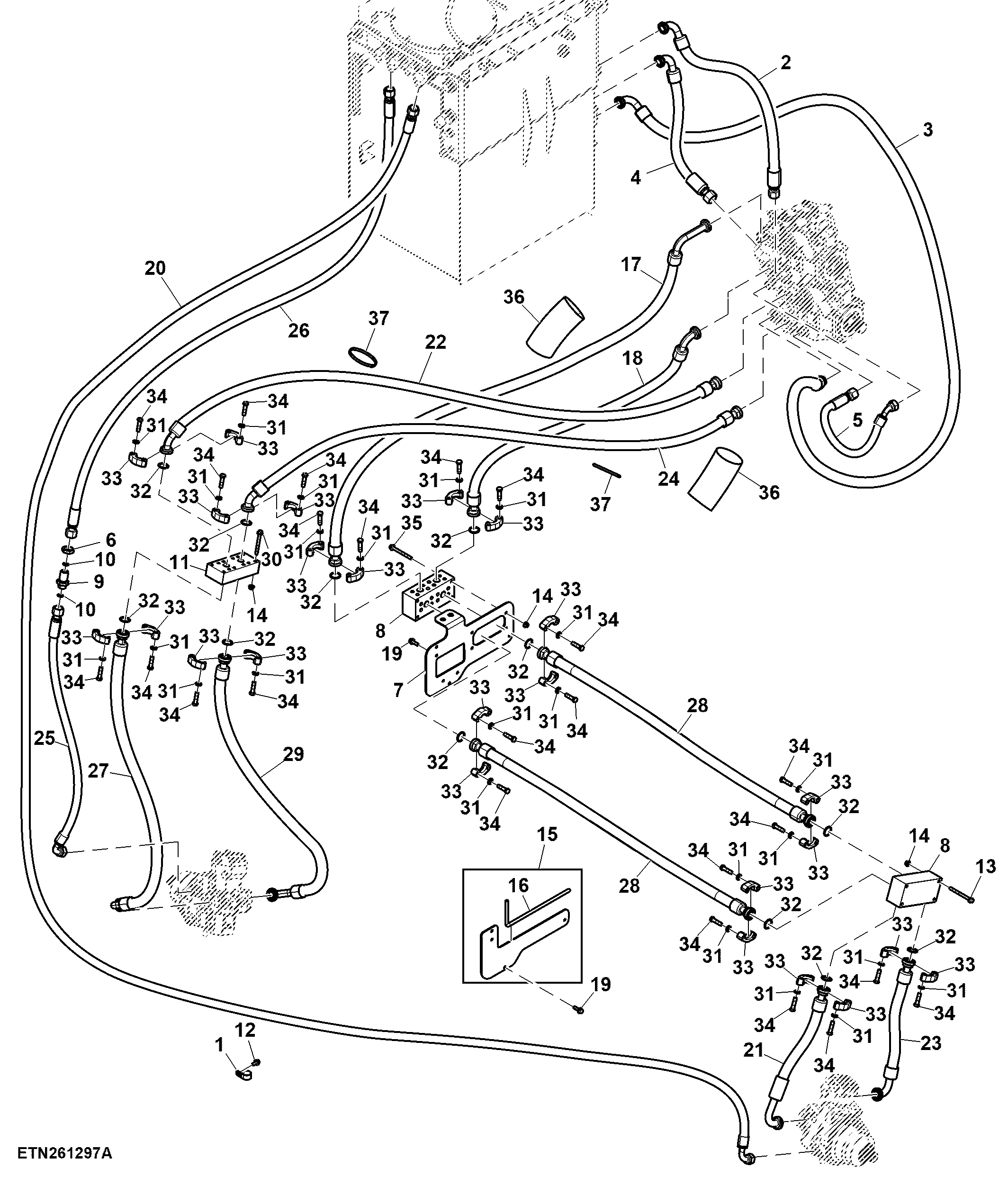

Ground Drive Lines (Louisiana Only)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R109479	1	Clamp	-
2	AXT21488	1	Hydraulic Hose	LGTH = 681 mm, Hydraulic Reservoir Outlet SUB FOR AXT17828
3	AXT21486	1	Hydraulic Hose	LGTH = 900 mm, Hydraulic Reservoir Outlet SUB FOR AXT17829
4	AXT21487	1	Hydraulic Hose	LGTH = 503 mm, Hydraulic Reservoir Outlet SUB FOR AXT17820
5	AXT17826	1	Hydraulic Hose	LGTH = 602 mm, Engine Outlet
6	38H5094	1	Nut	1-3/16"
7	CXT33969	1	Bracket	SUB FOR CXT30579
8	CXT30479	2	Hydraulic Component	-
9	38H5219	1	Union Fitting	-
10	T77858	2	O-Ring	-
11	CXT30604	1	Hydraulic Component	-
12	19M7784	1	Screw	M10 X 20
13	19M9852	4	Screw	M10 X 110
14	14M7296	12	Flange Nut	M10
15	AXT19022	1	Bracket Kit	-
16	CXT30559	1	Hose Support	-
17	AXT19136	1	Hydraulic Hose	LGTH = 1827 mm, Ground Drive Pump Line to Engine
18	AXT19125	1	Hydraulic Hose	LGTH = 1682 mm, Ground Drive Pump Line to Engine
19	19M7786	6	Screw	M10 X 30
20	AXT20667	1	Hydraulic Hose	LGTH = 5914 mm, Hydraulic Reservoir to Ground Drive Motor
21	AXT17967	1	Hydraulic Hose	LGTH = 592 mm, Ground Drive Motor to Ground Drive Pump Line
22	AXT20666	1	Hydraulic Hose	LGTH = 1660 mm, Ground Drive Pump Line to Engine
23	AXT21489	1	Hydraulic Hose	LGTH = 566 mm, Ground Drive Motor to Ground Drive Pump Line SUB FOR AXT17971
24	AXT20665	1	Hydraulic Hose	LGTH = 1541 mm, Ground Drive Pump Line to Engine
25	AXT17974	1	Hydraulic Hose	LGTH = 1061 mm, Ground Drive Motor to Hydraulic Reservoir Line
26	AXT20664	1	Hydraulic Hose	LGTH = 2153 mm, Hydraulic Reservoir to Ground Drive Pump Line
27	AXT17973	1	Hydraulic Hose	LGTH = 1067 mm, Ground Drive Motor to Ground Drive Pump Line
28	AXT19543	2	Hydraulic Hose	LGTH = 2149 mm, Ground Drive Motor Line to Ground Drive Pump Line
29	AXT17972	1	Hydraulic Hose	LGTH = 1063 mm, Ground Drive Motor to Ground Drive Pump Line
30	19M9877	4	Screw	M10 X 90
31	24M7623	48	Washer	13 X 24 X 2.500 mm
32	T78313	12	O-Ring	-
33	T107068	24	Flange Fitting	-
34	19M7496	48	Cap Screw	M12 X 45
35	19M9988	4	Screw	M10 X 100
36	CXT32152	2	Hose	-
37	N189220	6	Tie Band	-
