Открытый узел

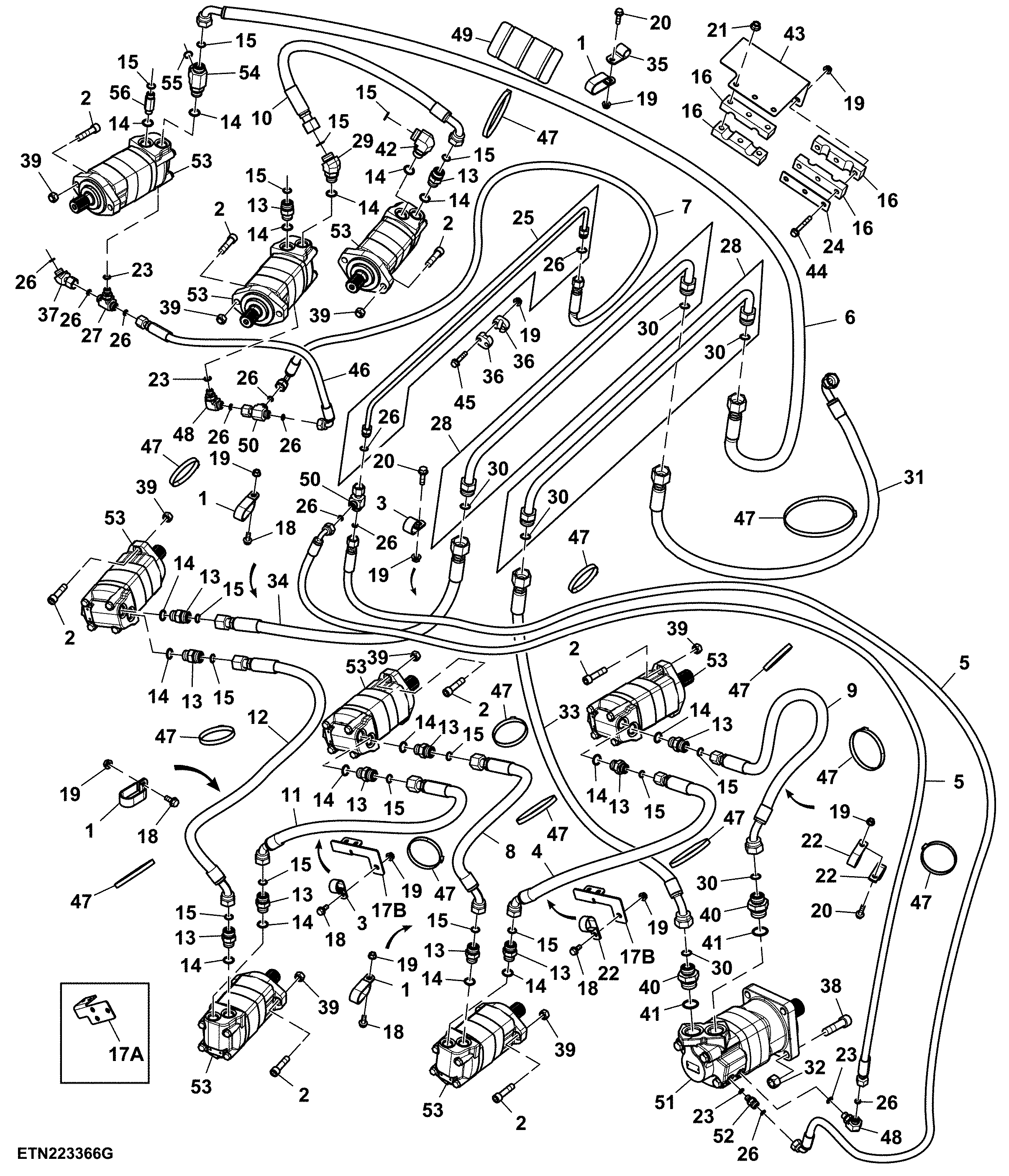

Front Feed Roller Motors and Lines, LH

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH226096	4	Clamp	-
2	19M8824	16	Screw	M12 X 50
3	T27550	2	Clip	-
4	AXT20388	1	Hydraulic Hose	LGTH = 1252mm, 307 CC Front Feed Roller Motor Line
5	AXT17918	2	Hydraulic Hose	LGTH = 991 mm, 307 CC Front Feed Roller Motor to 312 CC Front Feed Roller Motor
6	AXT17917	1	Hydraulic Hose	LGTH = 1382 mm, 307 CC Front Feed Roller Motor Line
7	AXT17907	1	Hydraulic Hose	LGTH = 1086 mm, 307 CC Front Feed Roller Motor Line
8	AXT17919	1	Hydraulic Hose	LGTH = 1171 mm, 307 CC Front Feed Roller Motor Line
9	AXT20389	1	Hydraulic Hose	LGTH = 1120 mm, 307 CC Front Feed Roller Motor Line
10	AXT17924	1	Hydraulic Hose	LGTH = 824 mm, 307 CC Front Feed Roller Motor Line
11	AXT17921	1	Hydraulic Hose	LGTH = 1194 mm, 307 CC Front Feed Roller Motor Line
12	AXT19168	1	Hydraulic Hose	LGTH = 1390 mm, 307 CC Front Feed Roller Motor Line
13	38H3162	12	Adapter Fitting	-
14	R26906	16	O-Ring	-
15	T77932	16	O-Ring	-
16	T309843	6	Clamp	-
18	19M7866	5	Screw	M8 X 20
19	14M7298	13	Flange Nut	M8
20	19M7868	3	Screw	M8 X 30
21	14M7296	6	Flange Nut	M10
22	T26955	3	Clamp	-
23	R26448	4	O-Ring	-
24	CXT28395	2	Bracket	-
25	AXT17362	1	Oil Tube	LGTH = 890 mm, 307 CC Front Feed Roller Motor to 312 CC Front Feed Roller Motor
26	T77613	12	O-Ring	-
27	38H3016	1	Tee Fitting	-
28	AXT17361	2	Oil Tube	LGTH = 900 mm, 307 CC Front Feed Roller Motor to 312 CC Front Feed Roller Motor
29	38H3047	1	Elbow Fitting	-
30	T77858	6	O-Ring	-
31	AXT17915	1	Hydraulic Hose	LGTH = 2373 mm, 307 CC Front Feed Roller Motor Line
32	14M7698	4	Lock Nut	M16
33	AXT17926	1	Hydraulic Hose	LGTH = 614 mm, 307 CC Front Feed Roller Motor Line
34	AXT19169	1	Hydraulic Hose	LGTH = 1869 mm, 307 CC Front Feed Roller Motor Line
35	R213627	1	Hose Clamp	-
36	H116717	6	Clamp	-
37	38H5437	1	Adapter Fitting	-
38	19M8656	4	Screw	M16 X 60
39	A31867	16	Lock Nut	-
40	38H3194	2	Adapter Fitting	-
41	R29936	2	O-Ring	-
42	38H3006	1	Adapter Fitting	-
43	CXT32166	1	Plate	-
44	19M7801	3	Screw	M8 X 60
45	19M9840	6	Screw	M8 X 40
46	AXT19509	1	Hydraulic Hose	LGTH = 726 mm, 307 CC Front Feed Roller Motor Line
47	N189220	15	Tie Band	-
48	38H3004	2	Adapter Fitting	-
49	AT252685	1	Hose Guard	-
50	38H5105	2	Tee Fitting	-
51	CXT34501	1	Seal Kit	Extreme Duty Seal Guard Conversion
51	0330031605	1	Seal Kit	Rear
51	CXT34500	1	Seal Kit	Front
51	AXT20390	1	Hydraulic Motor	-
52	38H3160	1	Adapter Fitting	-
53	AXT13783	8	Hydraulic Motor	307 cc
53	CXT20511	1	Seal Kit	-
54	38H3466	1	Tee Fitting	-
55	T77857	1	O-Ring	-
56	CXT35149	1	Adapter Fitting	-
17A	CXT26581	2	Bracket	Retention
17B	CXT35147	2	Bracket	SUB FOR CXT26581

Front Feed Roller Motors and Lines, LH

Нет текстового описания
