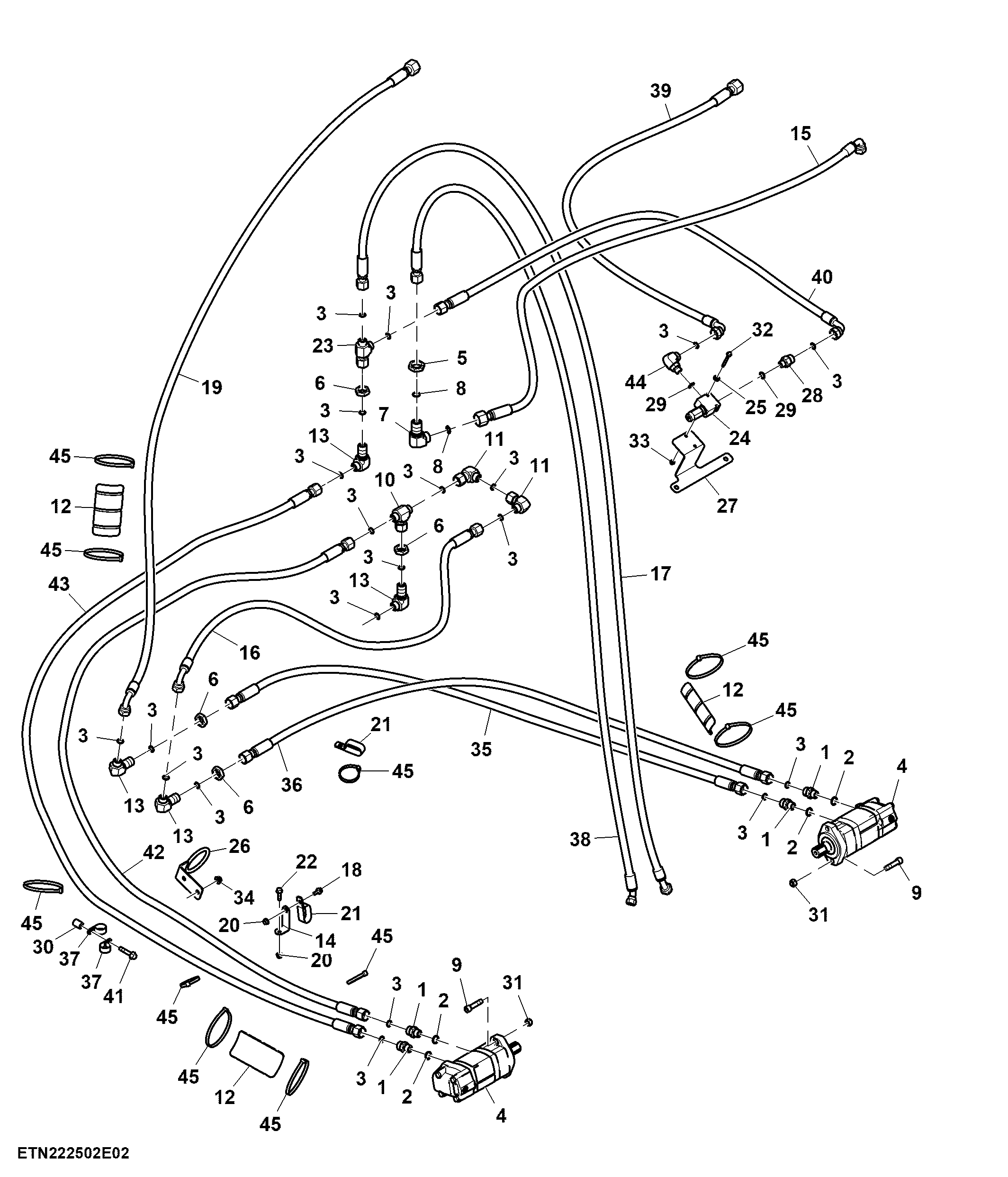

Front Feed Roller Motors and Lines (2 of 2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H3162	4	Adapter Fitting	-
2	R26906	4	O-Ring	-
3	T77932	20	O-Ring	-
4	CB11480559	2	Hydraulic Motor	-
4	CB11483723	1	Seal Kit	-
5	38H5094	1	Nut	1-3/16"
6	38H5093	4	Nut	1"
7	38H5199	1	Elbow Fitting	-
8	T77858	2	O-Ring	-
9	19M8824	4	Screw	M12 X 50
10	38H5216	1	Tee Fitting	-
11	38H5385	2	Adapter Fitting	-
12	AT252685	3	Hose Guard	-
13	38H5221	4	Adapter Fitting	-
14	CXT13652	1	Bracket	-
15	AXT18289	1	Hydraulic Hose	LGTH = 1677 mm
16	AXT18287	1	Hydraulic Hose	LGTH = 1046 mm
17	AXT17754	1	Hydraulic Hose	LGTH = 2440 mm
18	19M7866	1	Screw	M8 X 20
19	AXT18290	1	Hydraulic Hose	LGTH = 1757 mm
20	14M7298	2	Flange Nut	M8
21	CQ38890	2	Clamp	-
22	19M7868	1	Screw	M8 X 30
23	38H5175	1	Tee Fitting	-
24	AXT14974	1	Pressure Relief Valve	-
25	24H1136	2	Washer	11/32" X 11/16" X 0.065"
26	AXT18617	1	Bracket Kit	-
27	CXT29985	1	Plate	-
28	38H3317	1	Elbow Fitting	-
29	R26375	2	O-Ring	-
30	R154844	1	Bushing	-
31	A31867	4	Lock Nut	-
32	19M10092	2	Screw	M6 X 60
33	14M7303	2	Flange Nut	M6
34	14M7296	2	Flange Nut	M10
35	AXT17657	1	Hydraulic Hose	LGTH = 2596 mm
36	AXT17663	1	Hydraulic Hose	LGTH = 2586 mm
37	57M9858	2	Clamp	-
38	AXT20183	1	Hydraulic Hose	LGTH = 2535 mm
39	AXT20071	1	Hydraulic Hose	LGTH = 856 mm
40	AXT20072	1	Hydraulic Hose	LGTH = 948 mm
41	19M10011	1	Screw	M10 X 50
42	AXT20433	1	Hydraulic Hose	LGTH = 2611 mm
43	AXT20434	1	Hydraulic Hose	LGTH = 2545 mm
44	38H3405	1	Elbow Fitting	-
45	H223454	12	Tie Band	-

Front Feed Roller Motors and Lines (2 of 2)
