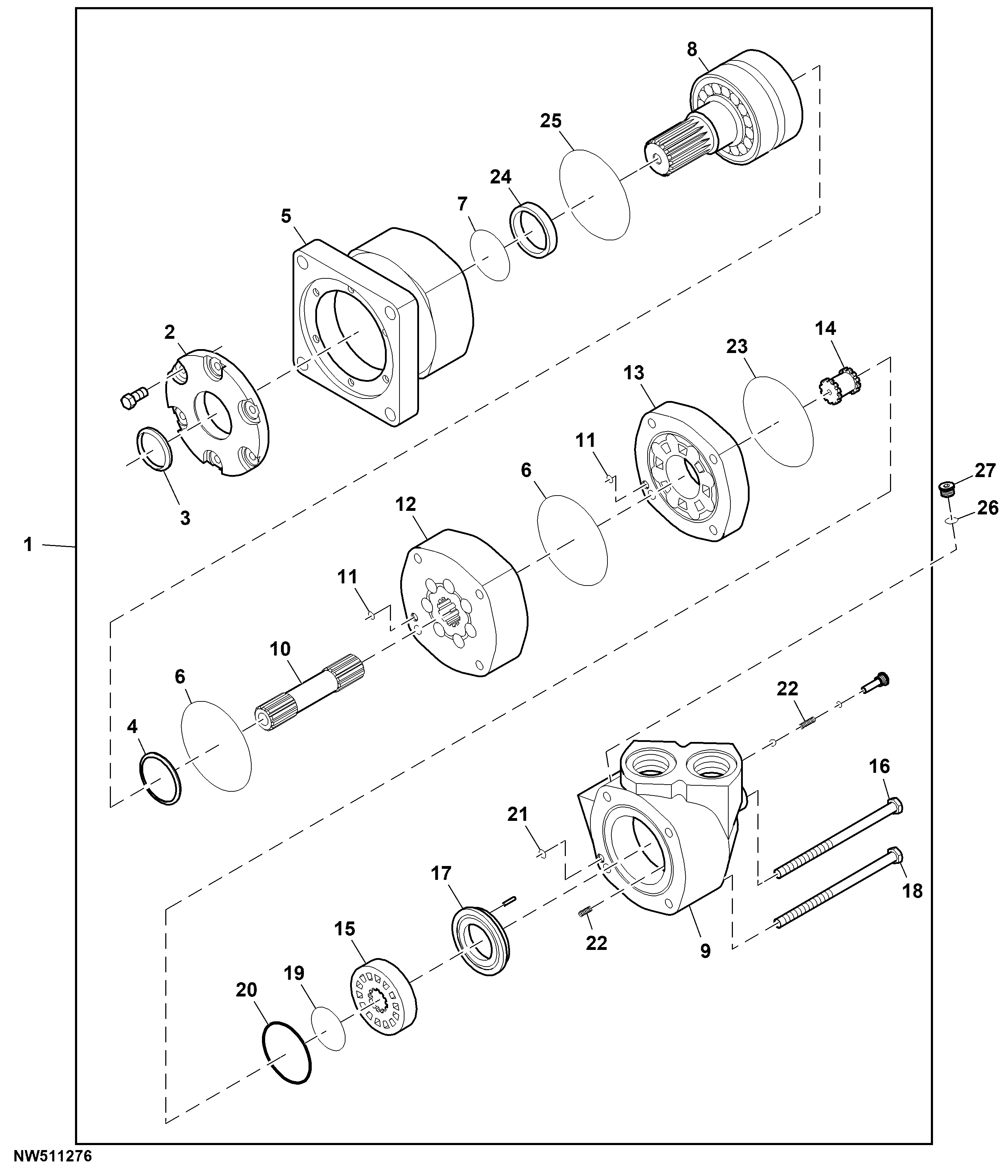

Front Feed Roller Motor Components, 312 cc

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0330031605	1	Seal Kit	Rear
1	CXT34500	1	Seal Kit	Front
1	CXT34501	1	Seal Kit	Extreme Duty Seal Guard Conversion
1	AXT20390	1	Hydraulic Motor	312 cc
2	CXT34497	1	Retainer	-
3	CXT34499	1	Seal Kit	Front Seal Kit
4	0330032104	1	Seal	Front Seal Kit
5	CXT11356	1	Bearing Housing W/O Bearing	-
6	0330032106	2	Seal	Rear Seal Kit
7	0331348794	1	Back-Up Ring	Front Seal Kit
8	0331348096	1	Shaft	-
9	CXT11369	1	Housing	-
10	0331361015	1	Drive Shaft	-
11	0331348097	2	Seal	Rear Seal Kit
12	0330032322	1	Gear	-
13	0330032111	1	Plate	-
14	0330032110	1	Drive Shaft	-
15	0330032112	1	Port Plate	-
16	0050037921	2	Bolt	-
17	F432255	1	Ring	-
18	0050037922	2	Bolt	-
19	0330032114	1	Seal	Rear Seal Kit
20	0330032113	1	V-Ring Seal	Rear Seal Kit
21	CXT34516	1	Seal Kit	-
22	841070800	3	Spring	-
23	H89192	1	O-Ring	-
24	CXT34498	1	Seal Kit	Front Seal Kit
25	0170032724	1	O-Ring	Front Seal Kit / Rear Seal Kit
26	R10093	1	O-Ring	Rear Seal Kit SUB FOR R26448
27	AN122518	1	Fitting Plug	SUB FOR 64H1017

Front Feed Roller Motor Components, 312 cc
