Cane Loss Sensor Node Jumper Wiring Harness

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7178	3	Washer	10.500 X 30 X 2.500 mm
2	N380408	1	Clamp	-
3	T11234	3	Lock Nut	-
4	03H2334	3	Bolt	3/8" X 2-1/2"
5	03M7186	2	Bolt	M8 X 30
6	T74416	1	Clamp	-
7	AA71532	1	Control	-
8	14M7298	1	Flange Nut	M8
9	N10215	3	Lock Nut	-
10	H224073	1	Tie Band	-
11	14M7397	2	Lock Nut	M6
12	CXT19881	1	Pressure Sensor	-
13	19M7867	1	Screw	M8 X 25
14	RE258807	1	Tie Band	-
15	AXT16391	1	Wiring Harness	-
16	57M10346	1	Elec. Connector Housing	-
16	57M9224	2	Elec. Connector Terminal	Cavity 2, 3
16	57M7771	2	Elec. Connector Terminal	Cavity 1, 4
16	57M8429	2	Elec. Connector Terminal	Cavity 5, 6
16	57M10265	1	Elec.Connect Locking Device	X017M Cane Loss Detector Interconnector
17	57M8338	1	Elec. Connector Housing	C4302 Cane Loss Sensor
17	57M8332	4	Elec. Connector Terminal	Cavity 3, 4, 11, 12
17	AT256820	20	Elec. Connector Cavity Plug	Cavity 1, 2, 5, 6, 7, 8, 9, 10, 13, 14 ,15, 16, 17, 18, 19, 20, 21, 22, 23, ,24
17	57M8335	1	Electrical Connector Assy	-
17	57M8336	1	Electrical Connector Assy	-
17	57M8709	1	Elec. Connector Accessory	-
17	57M8333	1	Elec. Connector Terminal	-
18	R340744	1	Adapter Fitting	-
19	T77613	1	O-Ring	-
20	AXT18616	1	Hydraulic Hose	LGTH = 461 mm
21	38H5069	1	Tee Fitting	-
22	T77857	2	O-Ring	-
23	CXT28505	1	Bracket	-

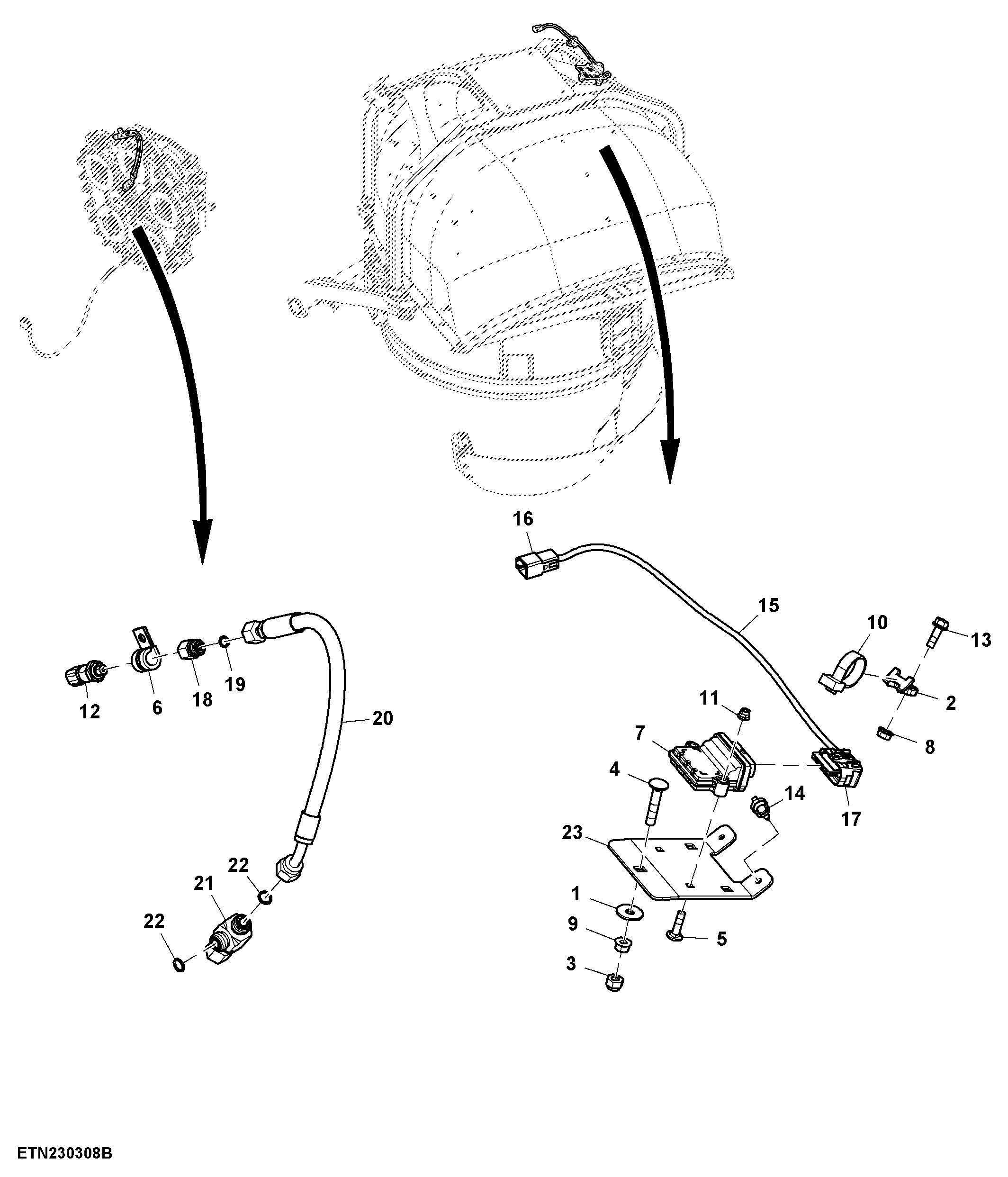

Cane Loss Sensor Node Jumper Wiring Harness
