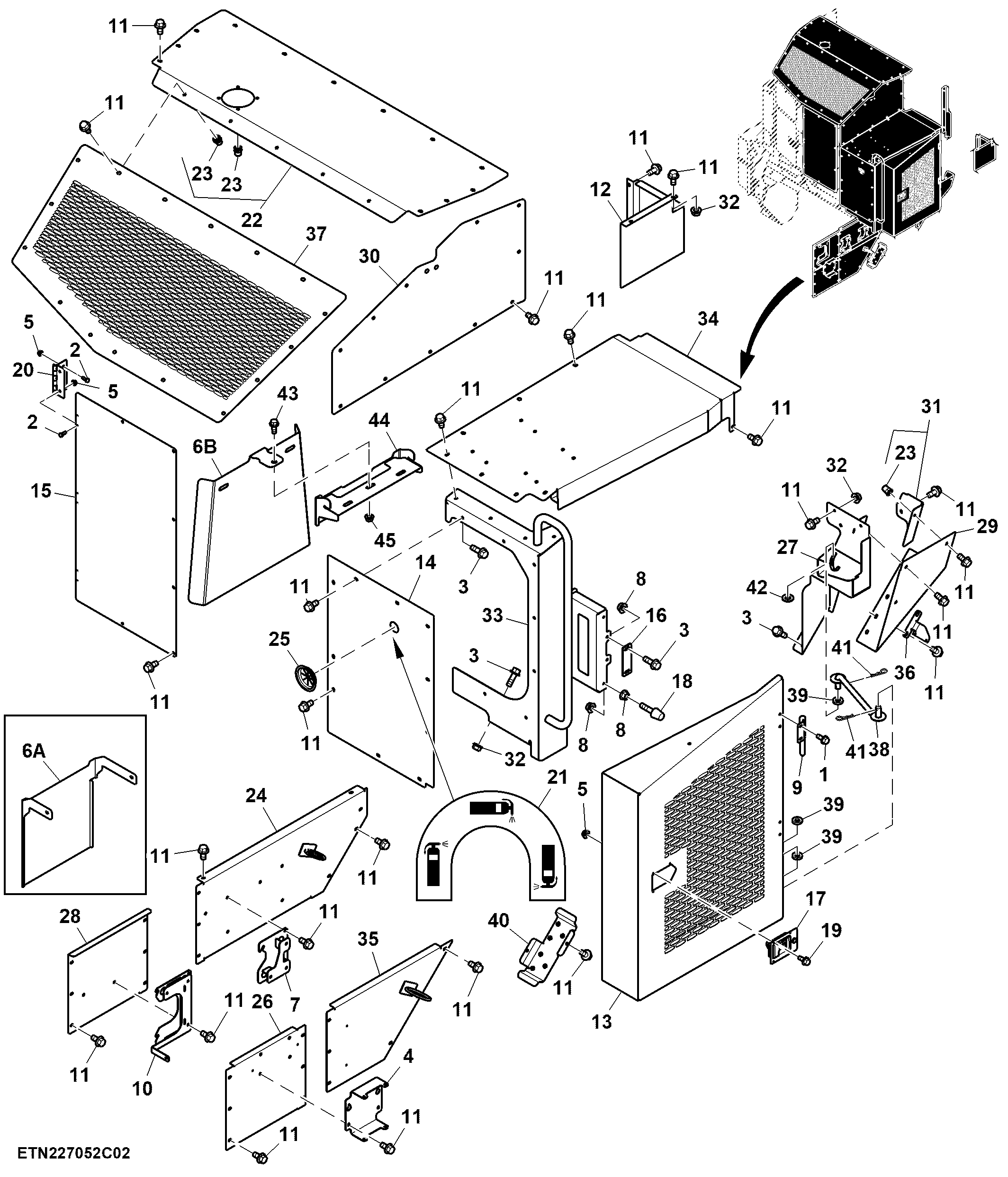

Shields, Supports and Side Panels, FT4 (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7866	6	Screw	M8 X 20
2	19M7640	12	Cap Screw	M5 X 12
3	19M7786	19	Screw	M10 X 30
4	CXT24800	1	Plate	-
5	14M7375	16	Flange Nut	M5
7	AXT15863	2	Mounting Parts	-
8	14M7296	4	Flange Nut	M10
9	AXE47100	2	Hinge	-
10	AXT17337	1	Bracket	-
11	19M7784	102	Screw	M10 X 20
12	CXT36958	1	Plate	SUB FOR CXT28471
13	AXT17548	1	Door	-
14	CXT28946	1	Plate	-
15	CXT29198	1	Plate	-
16	CXT24345	1	Plate	-
17	AT225885	1	Latch	-
18	AT183015	2	Bumper	-
19	19M9902	4	Screw	M5 X 12
20	LVU11682	3	Hinge	SUB FOR CXT12218
21	F290924	1	Label	Fire Extinguisher
22	AXT18737	1	Shield	Engine Package Exhaust
23	H154072	13	Nut	-
24	AXT18679	1	Shield	Left Upper Rear
25	N373020	1	Plug	-
26	AXT18678	1	Shield	Left Lower Front
27	AXT18659	1	Cover	-
28	AXT18677	1	Shield	-
29	CXT31025	1	Plate	-
30	CXT30968	1	Plate	-
31	AXT18795	1	Shield	Below Hydraulic Tank
32	14M7723	8	Lock Nut	M10
33	AXT18681	1	Support	-
34	AXT18793	1	Cover	-
35	AXT18877	1	Panel	-
36	CXT31853	1	Plate	-
37	CXT31954	1	Plate	-
38	AT410788	1	Pin	-
39	T27260	3	Washer	-
40	AXT19264	1	Support	-
41	J16931	2	Pin	-
42	24M7047	1	Washer	13 X 24 X 2.500 mm
43	19M7789	1	Screw	M12 X 30
44	AXT20196	1	Shield	Oil Spray Shield Mount
45	14M7299	1	Flange Nut	M12
6A	CXT28468	1	Plate	-
6B	CXT33506	1	Shield	Spray Shield Plate SUB FOR CXT28468

Shields, Supports and Side Panels, FT4 (2/2)
