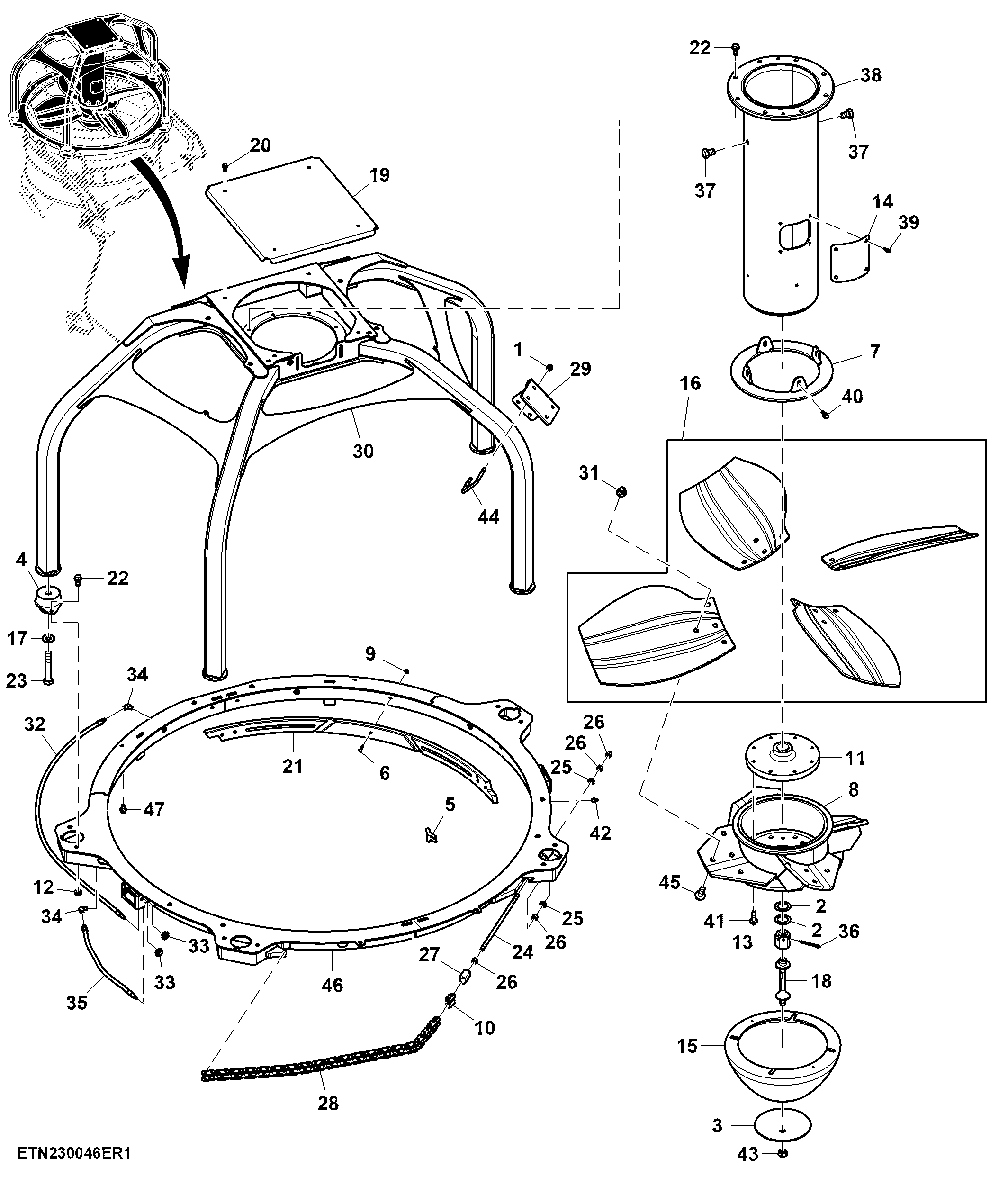

Primary Extractor Fan and Blade Mount ( - 210200)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7723	4	Lock Nut	M10
2	24H1536	2	Washer	1-17/32" X 2-1/4" X 0.060"
3	CXT22425	1	Wear Plate	-
4	CB01421974	4	Isolator	-
5	AXT13080	1	Indicating Gage	-
6	19M9818	12	Cap Screw	M6 X 25
7	AXT16612	1	Bracket	ORDER AXT19336
7	AXT20877	1	Deflector	SUB FOR AXT19336
8	CXT18530	1	Hub	SUB FOR AXT15253
9	14M7303	12	Flange Nut	M6
10	SW80COUS	1	Chain Link	-
11	CXT27080	1	Hub	-
12	14M7299	8	Flange Nut	M12
13	CXT16363	1	Locking Collar	-
14	CXT12225	1	Cover	-
15	CXT22974	1	Polymer Resin	-
16	AXT16378	1	Blade	-
17	24M7242	4	Washer	21.400 X 42 X 5 mm
18	CXT22405	1	Rod	-
19	CXT35157	1	Cover	SUB FOR CXT25469
20	19M7866	4	Screw	M8 X 20
21	CXT30123	4	Wear Plate	-
22	19M7789	16	Screw	M12 X 30
23	19M9137	4	Cap Screw	M20 X 120
24	CXT30892	1	Rod	-
25	24M7047	2	Washer	13 X 24 X 2.500 mm
26	14M7275	4	Nut	M12
27	CXT30890	1	Plate	-
28	CXT30897	1	Chain Link	Z = 19, Hood Rotate Chain
29	CXT26136	1	Bracket	-
30	AXT20785	1	Support	SUB FOR AXT19229
31	14M7679	16	Lock Nut	M16
32	CXT32150	2	Hydraulic Hose	LGTH = 1165 mm, Raw Weldment to Elbow Fitting
33	E12379	4	Nut	-
34	T56112	4	Elbow Fitting	-
35	CXT32149	2	Hydraulic Hose	LGTH = 440 mm, Raw Weldment to Elbow Fitting
36	0700014289	1	Cotter Pin	-
37	19H2369	2	Cap Screw	3/4" X 1"
38	AXT12531	1	Mounting Parts	-
39	H77932	4	Screw	-
40	N10214	4	Self-Locking Screw	-
41	19M7791	8	Bolt	M12 X 40
42	JD7759	2	Lubrication Fitting	-
43	K40016	1	Lock Nut	-
44	N309534	2	U-Bolt	-
45	19M7794	16	Screw	M16 X 50
46	AXT20347	1	Raw Weldment	SUB FOR AXT18478
47	19M7787	2	Screw	M12 X 20
