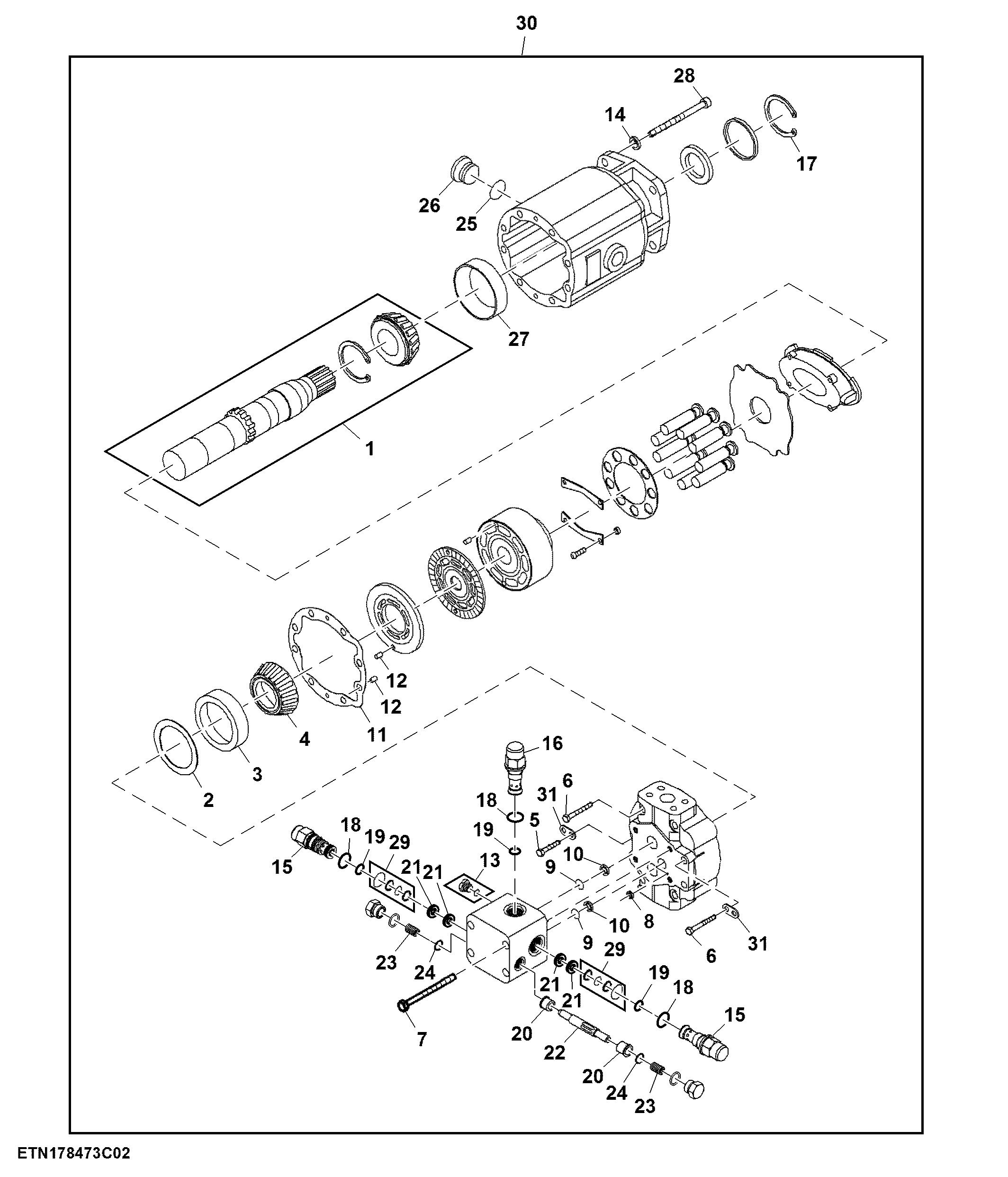

Base Cutter Motor Components, High Efficiency (171213 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CXT26825	1	Seal Kit	INCLUDES T187712
1	AZ56818	1	Drive Shaft	-
2	AH112678	1	Shim	USE WITH CB11508060
2	CXT22298	1	Shim Kit	USE WITH AXT16198
3	CXT22299	1	Bearing Cup	USE WITH AXT16198
3	JD8267	1	Bearing Cup	USE WITH CB11508060
4	CXT22300	1	Bearing Cone	USE WITH AXT16198
4	JD8979	1	Bearing Cone	USE WITH CB11508060
5	19H2698	2	Cap Screw	7/16" X 2"
6	19H3465	6	Cap Screw	7/16" X 3"
7	19H3404	4	Cap Screw	3/8" X 4"
8	CB01412606	1	Seal	-
9	CB01412607	2	O-Ring	-
10	CB01412608	2	Back-Up Ring	-
11	CXT22297	1	Gasket	-
12	T162215	3	Dowel Pin	-
13	AZ42084	3	Screw	USE WITH AXT16198
13	X4P5ON-S	2	Fitting Plug	USE WITH CB11508060
14	AT180935	2	Seal Kit	-
15	AZ46628	2	Valve	INCLUDES U17409, H63289 AND (4) H63288
16	CXT26823	1	Pressure Relief Valve	USE WITH AXT16198
16	CB11497324	1	Pressure Relief Valve	INCLUDES U17409 AND H63289; USE WITH CB11508060
17	T187712	1	Snap Ring	-
18	U17409	3	O-Ring	-
19	H63289	3	O-Ring	-
20	N126654	2	Valve	-
21	H63288	4	Ring	-
22	CB01509794	1	Valve Spool	-
23	CXT26824	2	Spring	USE WITH AXT16198
23	E97766	2	Spring	USE WITH CB11508060
24	R26906	2	O-Ring	-
25	U12547	1	O-Ring	-
26	R27175	1	Drain Plug	-
27	JD7297	1	Bearing Cup	-
28	19H3192	2	Screw	5/16" X 3"
29	AZ42092	2	O-Ring Kit	-
30	AXT16198	1	Hydraulic Motor	SUB FOR CB11508060
30	AXT12450	1	Seal Kit	USE WITH AXT16198; INCLUDES CB01412608 AND CXT22297
30	AZ51536	1	Hydraulic Cylinder Kit	USE WITH CB11508060
30	AE70192	1	Seal Kit	USE WITH CB11508060
31	T187743	2	Adjusting Strap	-

Base Cutter Motor Components, High Efficiency (171213 - )
