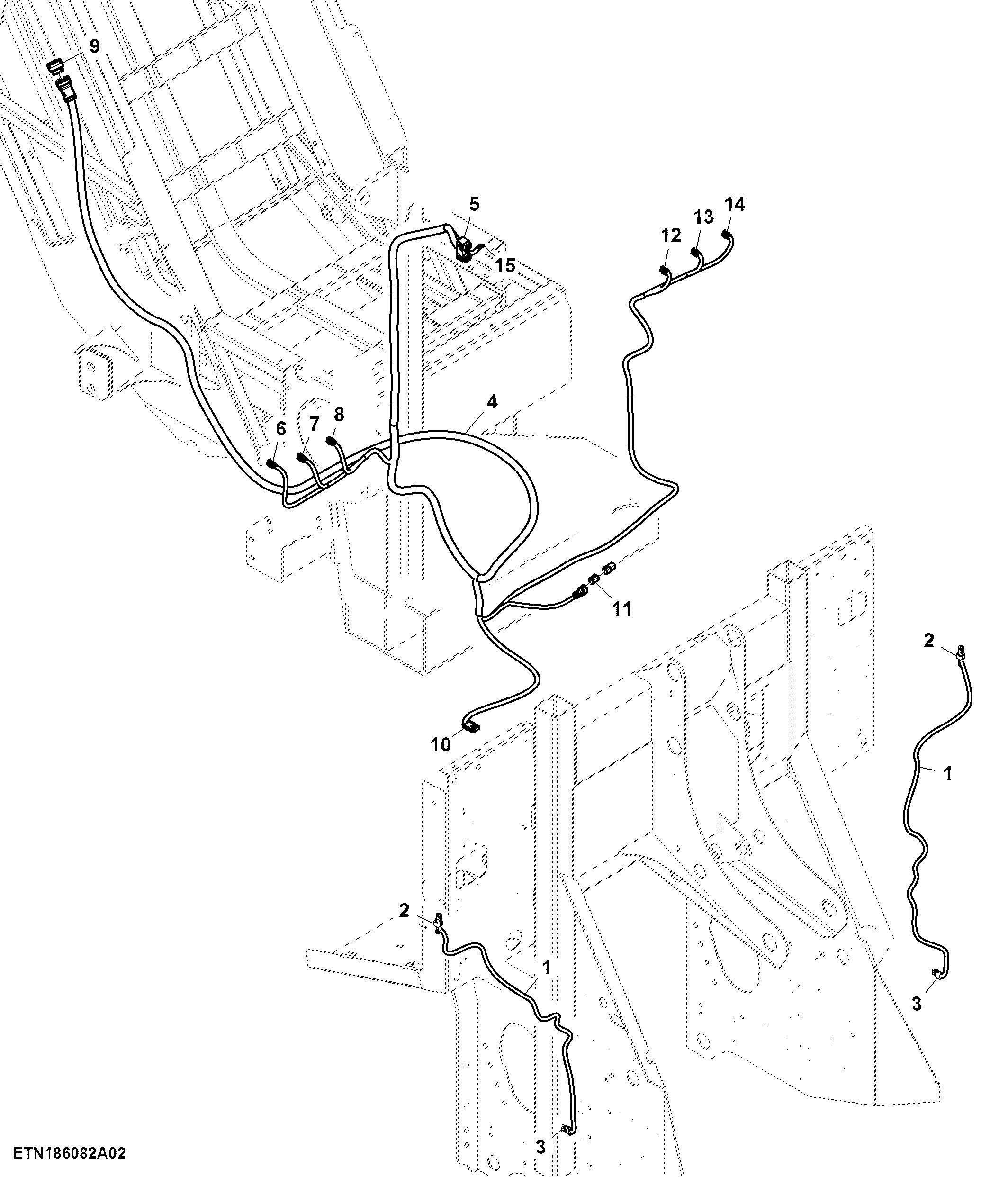

Wiring Harness, Main Frame Extension (181119 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXT10830	2	Wiring Harness	Base Cutter Height Sensor
2	57M8018	1	Electrical Connector Assy	X1 Auxilary Power Connector
2	N282070	3	Elec. Connector Terminal	Cavity A, B, C
2	57M8019	1	Elec. Connector Terminal	-
3	RE12364	1	Electrical Connector Assy	X2 Base Cutter Height Sensor
3	R78061	3	Elec. Connector Terminal	Cavity A, B, C
3	57M9216	3	Elec. Connector Seal	Cavity A, B, C
4	AXT15202	1	Wiring Harness	Main Frame Extension
5	57M7671	1	Electrical Connector Assy	X500-1 Main Frame Harness
5	57M9526	24	Elec. Connector Terminal	Cavity 1, 8, 9, 10, 11, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 40
5	57M7546	8	Elec. Connector Terminal	Cavity 4, 5, 6, 7, 16, 17, 38, 39
5	R78069	8	Elec. Connector Cavity Plug	Cavity 2, 3, 12, 13, 14, 15, 21, 22
6	57M8571	2	Elec. Connector Terminal	Cavity 1, 3
6	57M7743	1	Elec. Connector Cable Seal	Cavity 2
6	57M9911	2	Elec. Connector Cable Seal	Cavity 1, 3
6	57M8542	1	Elec. Connector Housing	XE37 Rear Turn Lamp, RH
7	57M8542	1	Elec. Connector Housing	XE39 Stop Tail Light, RH
7	57M8571	3	Elec. Connector Terminal	Cavity 1, 2, 3
7	57M9911	3	Elec. Connector Cable Seal	Cavity 1, 2, 3
8	57M8542	1	Elec. Connector Housing	XE41 Reverse Lamp, RH
8	57M8571	2	Elec. Connector Terminal	Cavity 1, 3
8	57M9911	2	Elec. Connector Cable Seal	Cavity 1, 3
8	57M7743	1	Elec. Connector Cable Seal	Cavity 2
9	57M8792	1	Elec. Connector Housing	X600-2 Elevator Harness
9	R78069	2	Elec. Connector Cavity Plug	Cavity 8, 18
9	57M8569	2	Elec. Connector Terminal	Cavity 6, 7
9	57M7614	1	Elec. Connector Terminal	Cavity 1
9	57M9526	13	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 9, 10, 11, 12, 13, 14, 15, 16, 17
10	R78055	1	Electrical Connector Assy	XB47 Motor Speed Sensor, RH
10	R78061	4	Elec. Connector Terminal	Cavity A, B, C, D
10	57M9216	4	Elec. Connector Seal	Cavity A, B, C, D
11	57M7630	1	Electrical Connector Assy	X610-1 Elevator Position Sensor
11	57M9526	5	Elec. Connector Terminal	Cavity 1, 2, 4, 5, 6
11	R78069	1	Elec. Connector Cavity Plug	Cavity 3
12	57M9911	2	Elec. Connector Cable Seal	Cavity 1, 3
12	57M7743	1	Elec. Connector Cable Seal	Cavity 2
12	57M8571	2	Elec. Connector Terminal	Cavity 1, 3
12	57M8542	1	Elec. Connector Housing	XE42 Reverse Lamp, LH
13	57M8542	1	Elec. Connector Housing	XE40 Stop Tail Light, LH
13	57M8571	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	57M9911	3	Elec. Connector Cable Seal	Cavity 1, 2, 3
14	57M8542	1	Elec. Connector Housing	XE38 Rear Turn Lamp, LH
14	57M8571	2	Elec. Connector Terminal	Cavity 1, 3
14	57M9911	2	Elec. Connector Cable Seal	Cavity 1, 3
14	57M7743	1	Elec. Connector Cable Seal	Cavity 2
15	57M8897	1	Elec. Connector Terminal	XGND3-3 Rear Frame Ground Cavity 1
