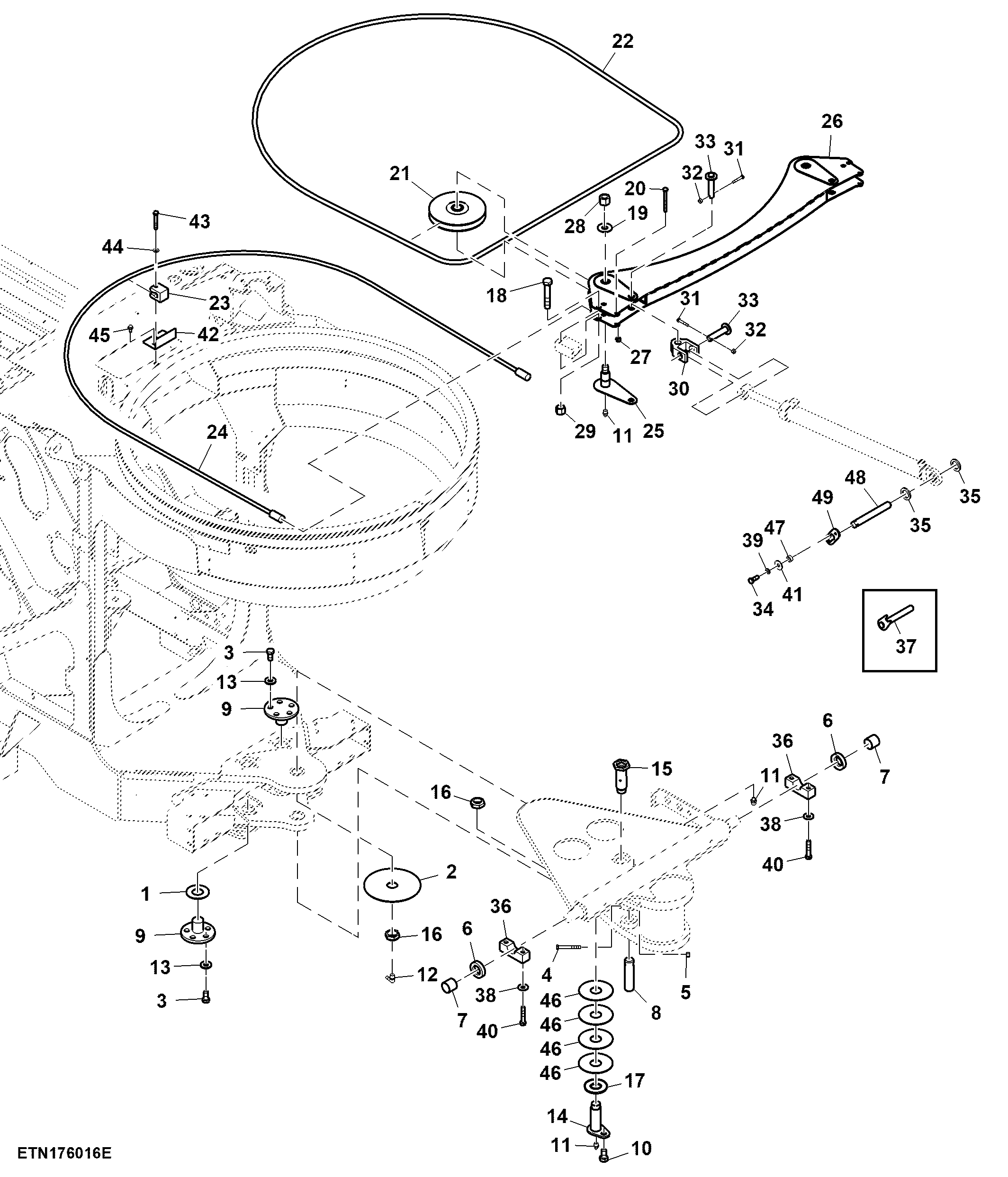

Elevator Attaching Cable and Sheaves (171263 - 200019)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0110005999	2	Washer	-
2	CXT17212	1	Washer	-
3	19H2716	20	Cap Screw	3/4" X 1-1/2"
4	19M7949	2	Cap Screw	M12 X 100
5	14M7313	2	Lock Nut	M12
6	CB01432051	2	Spacer	-
7	CB01432234	2	Bushing	-
8	CXT19612	2	Pin	-
9	CXT28858	4	Pin	SUB FOR CXT20971
10	CB11451849	1	Bolt	-
11	JD7759	4	Lubrication Fitting	-
12	JD7781	1	Lubrication Fitting	-
13	T151797	20	Washer	-
14	AXT10691	1	Pin	-
15	AXT10692	1	Pin	-
16	BT573A	2	Nut	-
17	CXT12242	1	Sealing Washer	-
18	19H2969	4	Cap Screw	5/8" X 3-1/2"
19	24H1197	2	Washer	1-1/16" X 2-1/2" X 0.164"
20	AT250986	2	Cap Screw	-
21	CB01437522	2	Center Sheave	-
22	CB01467761	1	Cable	-
23	CB01471119	1	Guide	-
24	CXT32793	1	Cable	SUB FOR CB01471989
25	CB01487625	2	Pin	-
26	CB11473161	1	Sheave Assembly	-
27	T16464	2	Lock Nut	-
28	K40018	2	Lock Nut	-
29	U44915	4	Lock Nut	-
30	CB01509556	2	Knuckle	ORDER CXT26361
30	CXT26361	2	Knuckle	-
31	19H2721	4	Cap Screw	1/4" X 1-1/2"
32	M40333	4	Lock Nut	-
33	L220860	4	Pin Fastener	SUB FOR AXT11485
34	19H2676	2	Cap Screw	3/8" X 1"
35	24M7294	4	Washer	26 X 39 X 4 mm
36	CB01424545	2	Bearing Cap	-
37	CB01487621	2	Pin	ORDER CXT29940 AND CXT29941
38	24H1106	4	Washer	11/16" X 1-3/4" X 0.134"
39	12H304	2	Lock Washer	3/8"
40	19H2641	4	Cap Screw	5/8" X 3-1/4"
41	24M7178	2	Washer	10.500 X 30 X 2.500 mm
42	CB01464045	1	Sheet	-
43	19H3520	1	Cap Screw	1/2" X 3-1/4"
44	0050047771	1	Washer	-
45	N14822	2	Screw	-
46	CXT19061	4	Shim	TK = 1.9 mm
47	CXT15644	2	Washer	-
48	CXT33089	2	Pin	SUB FOR CXT29940
49	CXT29941	2	Plate	-

Elevator Attaching Cable and Sheaves (171263 - 200019)
