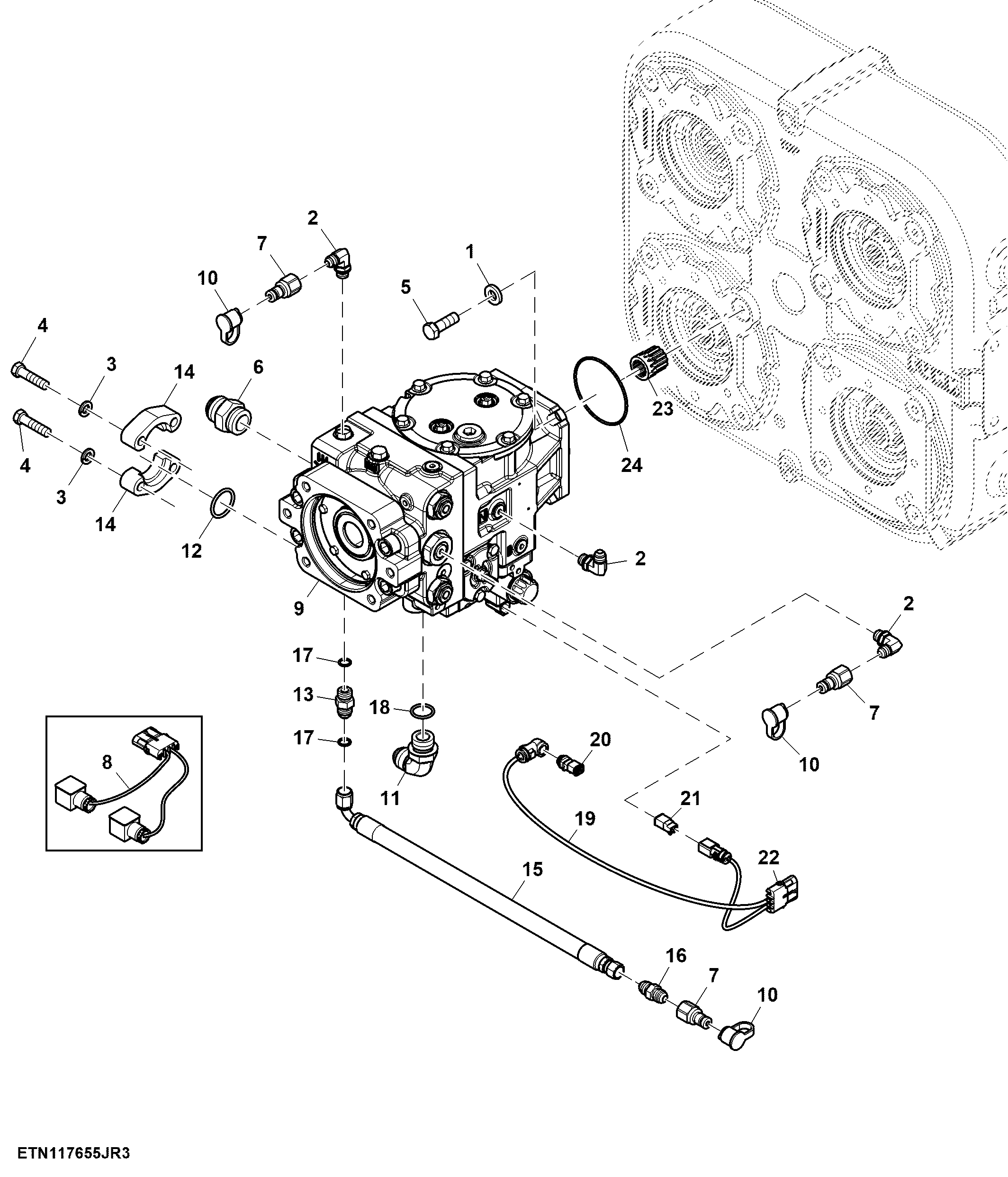

Base Cutter Pump, High Efficiency Hydraulics, 75 CC

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0050021074	4	Washer	-
2	X6C5OX-S	3	Elbow Fitting	-
3	12H293	8	Lock Washer	7/16"
4	19H2563	8	Cap Screw	7/16" X 1-3/4"
5	19H2993	4	Cap Screw	1/2" X 1-1/2"
6	X16F5OX-S	1	Adapter Fitting	-
7	XPD36BTX	3	Diagnostic Coupling	-
8	CB11470575	1	Wiring Harness	ORDER AXT15179
9	CB11487658	1	Hydraulic Pump	ORDER AXT15187
9	AXT15187	1	Hydraulic Pump	Left Ground Drive Pump
10	AT205083	3	Cap	-
11	AT32331	1	Elbow Fitting	-
12	T78313	2	O-Ring	-
13	R27212	1	Fitting	-
14	T107068	4	Flange Fitting	-
15	0881382856	1	Hydraulic Hose	LGTH = 462 mm
16	X6HTX-S	1	Union Fitting	-
17	R26448	2	O-Ring	-
18	U12547	1	O-Ring	-
19	AXT15179	1	Wiring Harness	Pump Jumper
20	57M14181	1	Elec. Connector Housing	Pump Reverse
20	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
20	57M8022	1	Elec.Connect Locking Device	-
20	57M14180	1	Elec. Connector Accessory	-
21	57M10517	1	Elec. Connector Housing	Pump Forward
21	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
21	57M8022	1	Elec.Connect Locking Device	-
21	57M10337	1	Elec. Connector Accessory	-
22	R78055	1	Electrical Connector Assy	Engine Harness
22	R78061	4	Elec. Connector Terminal	Cavity A, B, C, D
22	57M9218	4	Elec. Connector Seal	Cavity A,B,C,D
23	4028056	1	Splined Coupling	-
24	N203952	1	O-Ring	-

Base Cutter Pump, High Efficiency Hydraulics, 75 CC
