Открытый узел

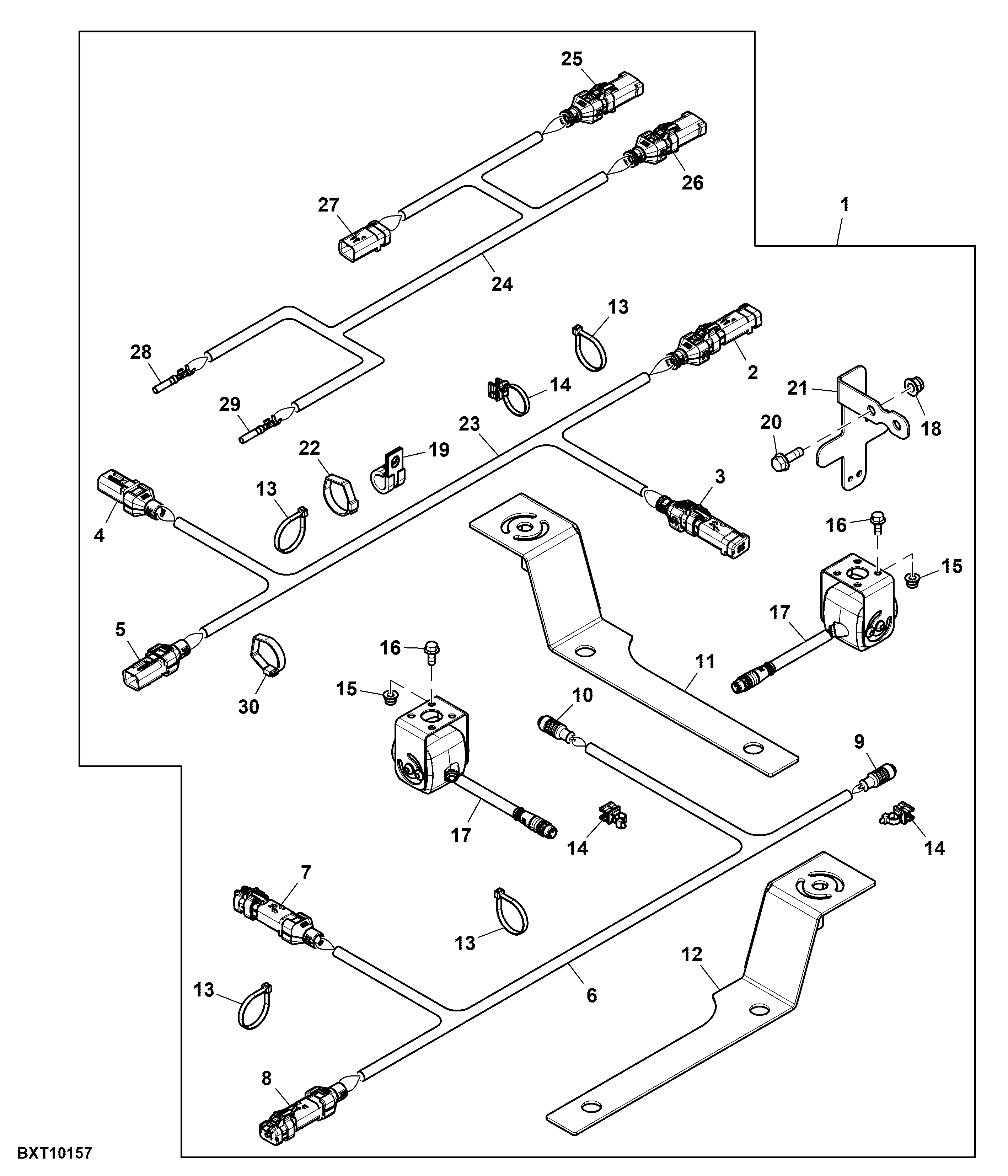

Wiring Harness, Elevator Television Camera, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXT10157	1	Attachment/Bundle Catalog	-
2	57M9817	1	Elec. Connector Housing	ECVF1-3 Video Feed 2
2	R78065	2	Elec. Connector Terminal	Cavity 1, 2
2	57M8263	2	Elec. Connector Terminal	Cavity 3, 4
2	57M9840	1	Elec. Connector Accessory	-
2	57M9821	1	Elec. Connector Housing	-
2	57M9814	3	Elec. Connector Cavity Plug	-
2	57M11335	1	Elec. Connector Accessory	-
3	57M9817	1	Elec. Connector Housing	ECVF2-3 Video Feed 3
3	57M11335	1	Elec. Connector Accessory	-
3	57M9814	3	Elec. Connector Cavity Plug	-
3	57M9821	1	Elec. Connector Housing	-
3	57M9840	1	Elec. Connector Accessory	-
3	57M8263	2	Elec. Connector Terminal	Cavity 3, 4
3	R78065	2	Elec. Connector Terminal	Cavity 1, 2
4	57M9813	2	Elec. Connector Terminal	Cavity 1, 2
4	57M9840	1	Elec. Connector Accessory	-
4	57M9812	2	Elec. Connector Terminal	Cavity 3, 4
4	57M9821	1	Elec. Connector Housing	ECVF2-4 Cab Video Feed 3
5	57M9821	1	Elec. Connector Housing	ECVF1-4 Cab Video Feed 2
5	57M9813	2	Elec. Connector Terminal	Cavity 1, 2
5	57M9812	2	Elec. Connector Terminal	Cavity 3, 4
5	57M9840	1	Elec. Connector Accessory	-
6	AXT18280	1	Wiring Harness	Elevator Camera Harness
7	57M9821	1	Elec. Connector Housing	ECVF2-2 Video Feed 3
7	57M9812	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
7	57M9840	1	Elec. Connector Accessory	-
7	57M9940	1	Elec. Connector Accessory	-
7	57M9817	1	Elec. Connector Housing	-
7	57M10336	3	Elec. Connector Cavity Plug	-
8	57M9812	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
8	57M10336	3	Elec. Connector Cavity Plug	-
8	57M9817	1	Elec. Connector Housing	-
8	57M9840	1	Elec. Connector Accessory	-
8	57M9821	1	Elec. Connector Housing	ECVF1-2 Video Feed 2
8	57M9940	1	Elec. Connector Accessory	-
9	57M12078	1	Elec. Connector Housing	ECVF2-1 Camera 2
10	57M12078	1	Elec. Connector Housing	ECVF1-1 Camera 1
11	CXT29450	1	Bracket	-
12	CXT29303	1	Bracket	-
13	H77698	67	Tie Band	-
14	AH225363	4	Clip	-
15	14M7397	4	Lock Nut	M6
16	19M7775	4	Screw	M6 X 16
17	AXE41697	2	Television Camera	-
18	14M7396	2	Lock Nut	M8
19	T74416	1	Clamp	-
20	19M9837	2	Screw	M8 X 25
21	CXT33569	1	Bracket	-
22	N189220	3	Tie Band	-
23	AXT18283	1	Wiring Harness	Elevator Cab Jumper
24	AXT18933	1	Wiring Harness	-
25	57M9817	1	Elec. Connector Housing	Corner Post Video Feed
25	57M10321	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
25	57M9839	1	Elec. Connector Accessory	-
26	57M9817	1	Elec. Connector Housing	Armrest Video Feed 3
26	57M10321	4	Elec. Connector Terminal	-
26	57M9839	1	Elec. Connector Accessory	-
27	57M9821	1	Elec. Connector Housing	Camera Frontframe Interconnect
27	57M10322	4	Elec. Connector Terminal	-
28	57M7546	1	Elec. Connector Terminal	567F Pin
29	57M7546	1	Elec. Connector Terminal	567F -12 Pin
30	H223454	1	Tie Band	-

Wiring Harness, Elevator Television Camera, Attachment

Нет текстового описания
