Открытый узел

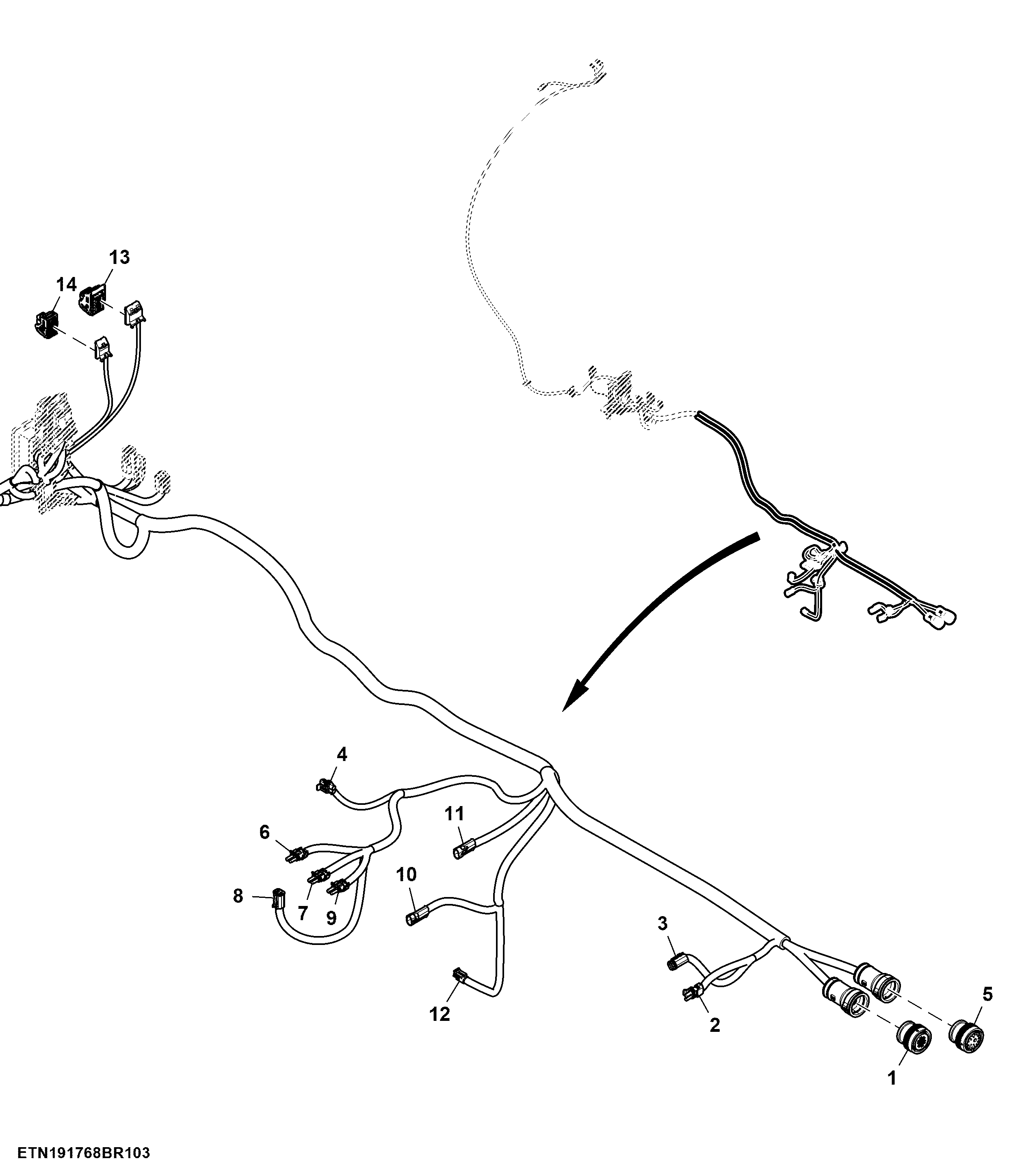

Main Frame Harness (2 of 2) (190003 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7546	11	Elec. Connector Terminal	Cavity 1, 6, 15, 16, 17, 18, 19, 20, 21, 22, 23
1	57M9526	11	Elec. Connector Terminal	Cavity 4, 5, 7, 8, 9, 10, 11, 12, 13, 14, 27
1	R78069	9	Elec. Connector Cavity Plug	Cavity 2, 3, 24, 25, 26, 28, 29, 30, 31
1	57M10485	1	Elec. Connector Accessory	-
1	57M9514	1	Elec. Connector Housing	X300-1 Front Frame Harness
2	RE12363	1	Electrical Connector Assy	E27 Engine Work Light 2
2	R78060	2	Elec. Connector Terminal	Cavity A, B
2	57M9218	1	Elec. Connector Seal	Cavity A
2	57M9216	1	Elec. Connector Seal	Cavity B
3	57M7618	1	Electrical Connector Assy	-
3	R78069	4	Elec. Connector Cavity Plug	-
3	57M7628	1	Electrical Connector Assy	-
3	R78069	1	Elec. Connector Cavity Plug	Cavity 3
3	57M7546	3	Elec. Connector Terminal	Cavity 1, 2, 4
3	57M9033	1	Elec. Connector Housing	B77 Extractor Residue Flowmeter
4	57M7309	1	Elec. Connector Housing	B14 Hydraulic Oil Filter Restriction Switch
4	57M7297	2	Elec. Connector Terminal	Cavity A, B
4	57M9218	1	Elec. Connector Seal	Cavity A
4	57M9219	1	Elec. Connector Seal	Cavity B
4	57M7306	1	Elec.Connect Locking Device	-
5	57M8792	1	Elec. Connector Housing	X301-1 Front Frame Harness
5	57M10485	1	Elec. Connector Accessory	-
5	R78069	3	Elec. Connector Cavity Plug	Cavity 8, 17, 18
5	57M8593	1	Elec. Connector Terminal	Cavity 6
5	57M8569	1	Elec. Connector Terminal	Cavity 7
5	57M8537	4	Elec. Connector Terminal	Cavity 10, 11, 12, 13
5	57M7546	4	Elec. Connector Terminal	Cavity 3, 5, 9, 14
5	57M9526	4	Elec. Connector Terminal	Cavity 2, 4, 15, 16
5	57M7614	1	Elec. Connector Terminal	Cavity 1
6	RE12363	1	Electrical Connector Assy	Y12 Park Brake Solenoid Valve
6	R78060	2	Elec. Connector Terminal	Cavity A, B
6	57M9218	2	Elec. Connector Seal	Cavity A, B
7	RE12363	1	Electrical Connector Assy	Y10 Positive Traction Solenoid Valve
7	R78060	2	Elec. Connector Terminal	Cavity A, B
7	57M9218	2	Elec. Connector Seal	Cavity A, B
7	R78053	1	Electrical Connector Assy	-
7	R78064	2	Elec. Connector Cavity Plug	-
8	57M9033	1	Elec. Connector Housing	B49 Park Brake Pressure Sensor
8	57M10475	1	Elec. Connector Accessory	-
8	57M7618	1	Electrical Connector Assy	-
8	57M7546	3	Elec. Connector Terminal	Cavity 1, 2, 4
8	R78069	1	Elec. Connector Cavity Plug	Cavity 3
9	RE12363	1	Electrical Connector Assy	Y9 High-Low Solenoid Valve
9	R78060	2	Elec. Connector Terminal	Cavity A, B
9	57M9218	2	Elec. Connector Seal	Cavity A, B
9	R78053	1	Electrical Connector Assy	-
9	R78064	2	Elec. Connector Cavity Plug	-
10	57M7256	1	Elec. Connector Housing	B13 Secondary Hydraulic Oil Level Switch
10	57M7252	2	Elec. Connector Terminal	Cavity A, B
10	57M7258	2	Elec. Connector Seal	Cavity A, B
10	57M7289	1	Elec.Connect Locking Device	-
11	57M7256	1	Elec. Connector Housing	B12 Primary Hydraulic Oil Level Switch
11	57M7252	2	Elec. Connector Terminal	Cavity A, B
11	57M7258	1	Elec. Connector Seal	Cavity A
11	57M9215	1	Elec. Connector Seal	Cavity B
11	57M7289	1	Elec.Connect Locking Device	-
12	57M7829	2	Elec. Connector Terminal	Cavity A, B
12	57M7850	1	Elec. Connector Housing	B18 Hydraulic Oil Temperature Sensor
13	57M10124	1	Elec. Connector Housing	A59 Rear Control Unit (RCU) J2
13	57M10401	1	Elec. Connector Accessory	-
13	57M10334	4	Elec. Connector Cavity Plug	Cavity 17, 29, 41, 53
13	57M10333	33	Elec. Connector Cavity Plug	Cavity 7, 9, 10, 11, 12, 14, 15, 16, 21, 22, 23, 24, 25, 26, 27, 31, 32, 33, 34. 35, 36, 37, 38, 39, 43, 44, 45, 46, 47, 48, 49, 50, 51
13	57M11973	5	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5
13	57M10330	7	Elec. Connector Terminal	Cavity 8, 13, 19, 20, 28, 40, 52
13	57M10617	4	Elec. Connector Housing	Cavity 6, 18, 30, 42
13	57M10217	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5
14	57M10614	1	Elec. Connector Housing	A59 Rear Control Unit (RCU) J1
14	57M10514	2	Elec. Connector Terminal	Cavity A1, B1
14	57M10330	13	Elec. Connector Terminal	Cavity A3, C1, C2, D3, E2, F2, F3, H2, H3, H4, J1, J3, K4
14	57M10617	2	Elec. Connector Housing	Cavity L1, M1
14	57M10331	1	Elec. Connector Terminal	Cavity L2
14	57M10333	25	Elec. Connector Cavity Plug	Cavity A2, A4, B2, B3, B4, C3, C4, D1, D2, D4, E1, E3, E4, F1, F4, G1, G2, G3, G4, H1, J2, J4, K1, K2, K3
14	57M10334	5	Elec. Connector Cavity Plug	Cavity L3, L4, M2, M3, M4
14	57M10613	1	Elec. Connector Housing	-

Main Frame Harness (2 of 2) (190003 - )

Нет текстового описания
