Открытый узел

Main Armrest Console Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7272	1	Nut	M6
2	14M7275	1	Nut	M12
3	19M7744	1	Cap Screw	M12 X 35
4	19M7768	1	Screw	M6 X 16
5	24M7047	2	Washer	13 X 24 X 2.500 mm
6	24M7054	2	Washer	6.400 X 12 X 1.600 mm
7	L206645	2	Tie Band	-
8	AXE43956	1	Wiring Harness	Armrest Single CAN Bus with Ethernet
9	AL211750	1	Wiring Harness	Ethernet Armrest
10	57M7260	1	Elec. Connector Housing	CAN Bus Active Terminator X580F
10	57M7493	2	Elec. Connector Seal	Cavity A, C
10	57M9214	4	Elec. Connector Seal	Cavity B, D, E, F; SUB FOR 57M7377
10	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
11	57M10333	12	Elec. Connector Cavity Plug	Cavity C1, D1, E1, F4, G1, G2, G3, G4, H3, H4, J3, K3
11	57M10334	1	Elec. Connector Cavity Plug	Cavity L3
11	57M10331	7	Elec. Connector Terminal	Cavity L1, L2, L4, M1, M2, M3, M4
11	57M10590	19	Elec. Connector Housing	Cavity A2, A3, A4, B1, B2, C2, C3, C4, D2, D3, D4, E2, E3, E4, F2, F3, H1, J4, K4
11	57M10420	1	Elec. Connector Housing	Cab Control Unit X554
11	57M10488	9	Elec. Connector Terminal	Cavity A1, B3, B4, F1, H2, J1, J2, K1, K2
12	57M8738	1	Elec. Connector Accessory	Armrest Harness X668F
12	57M10557	28	Elec. Connector Terminal	Cavity 1–8, 10–13, 24, 25, 27, 29–32, 39–45, 47–48
12	57M9161	20	Elec. Connector Terminal	Cavity 9, 22, 23, 26, 28, 33–38, 46, 49–56
12	57M8584	1	Elec. Connector Terminal	Cavity 59
12	57M8585	5	Elec. Connector Terminal	Cavity 57, 58, 60, 61, 62
12	57M7402	26	Elec. Connector Cable Seal	Cavity 1–13, 24, 26–32, 36, 37, 39, 47, 48
12	57M7403	18	Elec. Connector Cavity Plug	Cavity 14–21, 33, 34, 35, 38, 42–45, 49, 50
12	57M8241	12	Elec. Connector Terminal	Cavity 22, 23, 25, 40, 41, 46, 51–56
12	57M7399	5	Elec. Connector Seal	Cavity 57, 58, 60, 61, 62
12	57M7400	1	Elec. Connector Seal	Cavity 59
13	57M10609	1	Elec. Connector Housing	Cab Control Unit X553
13	57M10590	14	Elec. Connector Housing	Cavity A1, A3, A4, B1, B2, B3, C1, C3, D1, D2, D3, E1, E2, E3
13	57M10331	7	Elec. Connector Terminal	Cavity G1, G2, G4, H1, H2, H3, H4
13	57M10333	10	Elec. Connector Cavity Plug	Cavity A2, B4, C2, C4, D4, E4, F1, F2, F3, F4
14	57M7437	2	Elec. Connector Terminal	Cavity 5, 14
14	57M7550	3	Elec. Connector Terminal	Cavity 6, 7, 8
14	57M11552	2	Elec. Connector Terminal	Cavity 1, 2; SUB FOR 57M7549
14	57M10558	6	Elec. Connector Terminal	Cavity 3, 4, 9, 10, 11, 12
14	57M7710	1	Electrical Connector Assy	Armrest to SDU X896IF
15	57M7472	1	Electrical Connector Assy	Armrest / Propulsion Control Extension X632F
15	57M11552	5	Elec. Connector Terminal	Cavity 1–5; SUB FOR 57M7549
16	57M7713	2	Electrical Connector Assy	Header Engage Switch X657M
16	57M7548	4	Elec. Connector Terminal	Cavity 1–4
16	57M7718	2	Electrical Connector Assy	-
17	57M7713	2	Electrical Connector Assy	Separator Engage Switch X656M
17	57M7548	4	Elec. Connector Terminal	Cavity 1, 2, 4
17	57M7718	2	Electrical Connector Assy	-
18	57M8906	1	Elec. Connector Housing	Handle Position Sensor X677F
18	57M10925	1	Elec. Connector Terminal	Cavity D
18	57M7496	5	Elec. Connector Terminal	Cavity A, B, C, E, F
19	57M10613	1	Elec. Connector Housing	Cab Control Unit
20	57M7715	1	Electrical Connector Assy	Multifunction Control Handle X667M
20	57M10450	5	Elec. Connector Terminal	Cavity 1–5
20	57M7719	1	Electrical Connector Assy	-
21	L207347	1	Bracket	-
22	T43361	2	Clip	-
23	R44302	3	Tie Band	-
24	57M7291	1	Electrical Connector Assy	-
25	57M10607	1	Elec. Connector Housing	Cab Control Unit X555
25	57M10590	17	Elec. Connector Housing	Cavity A1, A2, A3, A4, B1, B4, C1, C3, C4, D1, D4, E1, E3, F1, F2, F3, F4
25	57M10331	6	Elec. Connector Terminal	Cavity G1, G2, G3, G4, H3, H4
25	57M10333	5	Elec. Connector Cavity Plug	Cavity B3, C2, D2, D3, 4
25	57M10488	1	Elec. Connector Terminal	Cavity B2
25	57M10493	2	Elec. Connector Terminal	Cavity H1, H2
26	57M10449	20	Elec. Connector Terminal	Cavity 1–19, 26
26	57M10447	1	Elec. Connector Housing	-
26	57M10484	1	Elec. Connector Housing	Armrest Switch Matrix X672F
27	57M10445	1	Elec. Connector Housing	Armrest Switch Matrix X669F
27	57M10449	20	Elec. Connector Terminal	Cavity 1–7, 12–15, 17–20, 22–26
27	57M10447	1	Elec. Connector Housing	-
28	57M8802	1	Elec. Connector Housing	Switch Module
28	57M11552	5	Elec. Connector Terminal	Cavity 1, 2, 5, 6, 7; SUB FOR 57M7549
28	57M10558	1	Elec. Connector Terminal	Cavity 3
29	57M10604	2	Elec. Connector Housing	Cab Control Unit
30	L171035	1	Tie Band	-

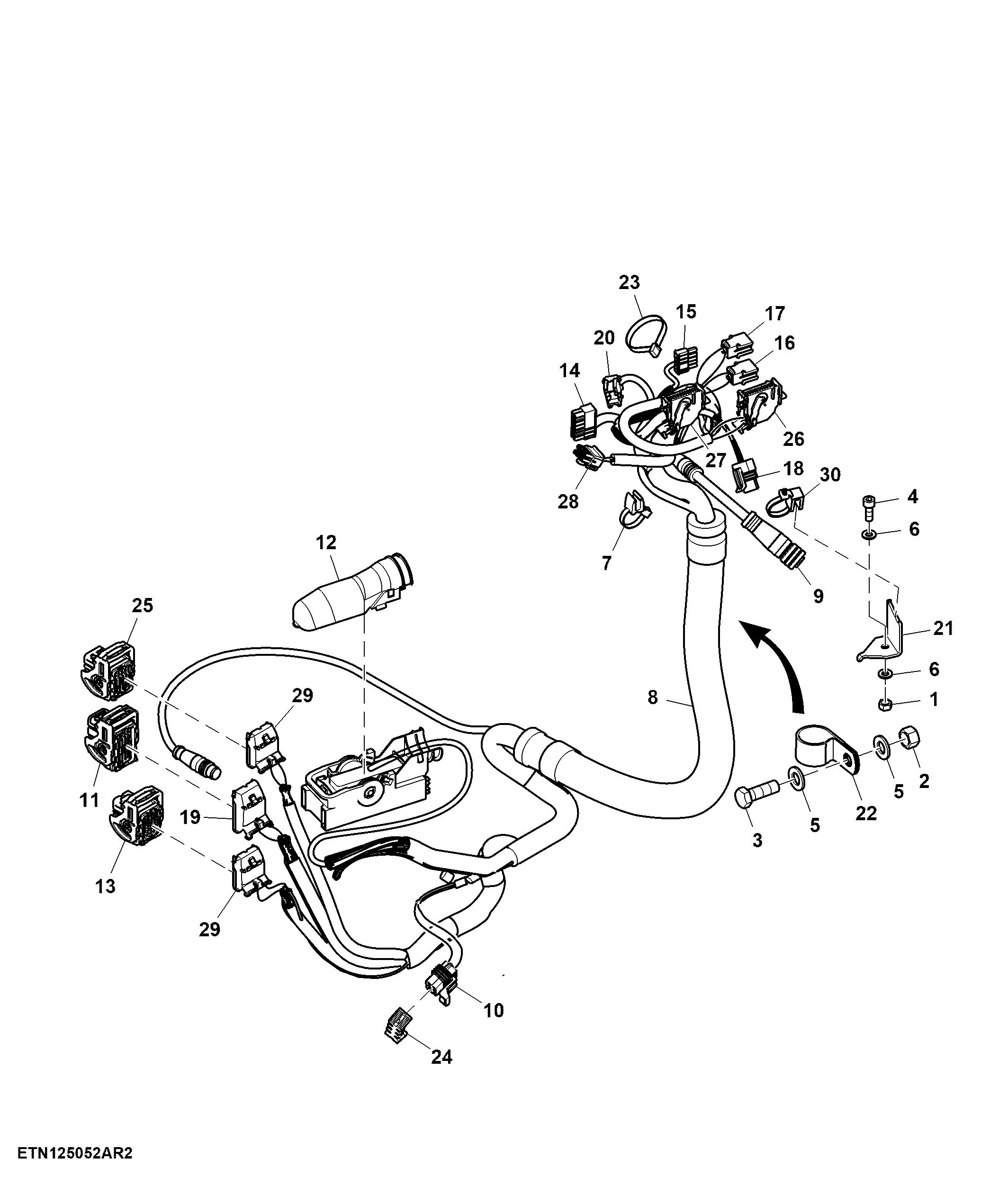

Main Armrest Console Harness
