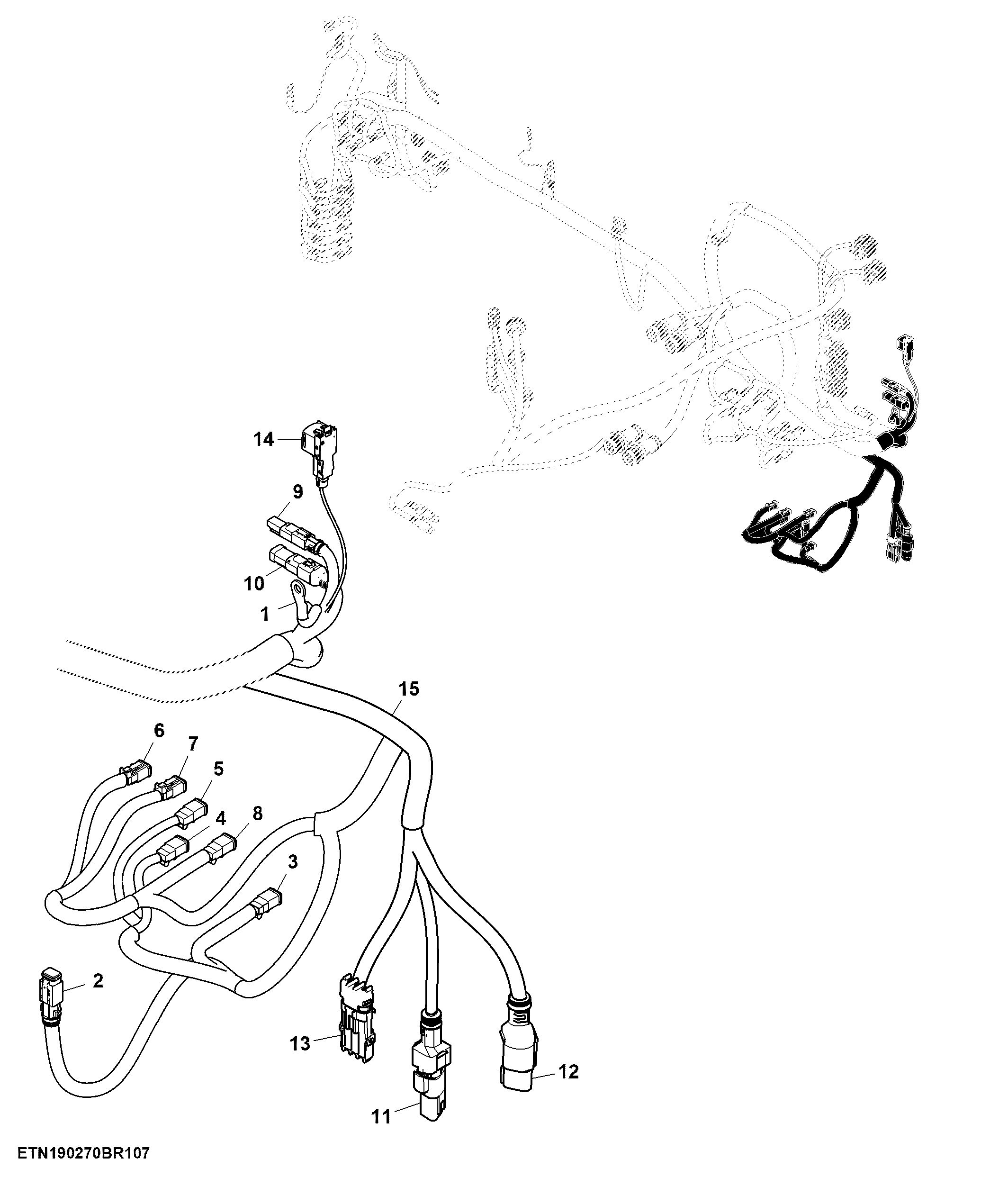

Front Frame Harness (6 of 6) (190003 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8897	1	Elec. Connector Terminal	Frame Ground
2	57M10517	1	Elec. Connector Housing	Y5 PCP Unloading Solenoid
2	57M9526	1	Elec. Connector Terminal	Cavity 1
2	57M7546	1	Elec. Connector Terminal	Cavity 2
2	57M10337	1	Elec. Connector Accessory	-
2	57M8022	1	Elec.Connect Locking Device	-
3	57M10517	1	Elec. Connector Housing	Y79 Topper Lower Solenoid
3	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
3	57M8022	1	Elec.Connect Locking Device	-
4	57M10517	1	Elec. Connector Housing	Y41 Primary Hood Rotate Counterclockwise Solenoid
4	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
4	57M8022	1	Elec.Connect Locking Device	-
5	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
5	57M8022	1	Elec.Connect Locking Device	-
5	57M10517	1	Elec. Connector Housing	Y18 Elevator Swing Solenoid, LH
6	57M10517	1	Elec. Connector Housing	Y19 Elevator Swing Solenoid, RH
6	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
6	57M8022	1	Elec.Connect Locking Device	-
7	57M10517	1	Elec. Connector Housing	Y40 Primary Hood Rotate Clockwise Solenoid
7	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
7	57M8022	1	Elec.Connect Locking Device	-
8	57M10517	1	Elec. Connector Housing	Y78 Topper Raise Solenoid
8	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
8	57M8022	1	Elec.Connect Locking Device	-
9	57M8022	1	Elec.Connect Locking Device	-
9	57M7533	1	Elec. Connector Housing	-
9	R78069	2	Elec. Connector Cavity Plug	-
9	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
9	57M10517	1	Elec. Connector Housing	Front Auxiliary CAN Power
9	57M10337	1	Elec. Connector Accessory	-
10	57M9033	1	Elec. Connector Housing	Front Auxiliary CAN
10	57M8263	2	Elec. Connector Terminal	Cavity 2, 4
10	R78069	2	Elec. Connector Cavity Plug	Cavity 1, 3
10	57M7618	1	Electrical Connector Assy	-
10	57M7628	1	Electrical Connector Assy	-
10	R78069	4	Elec. Connector Cavity Plug	-
10	57M10475	1	Elec. Connector Accessory	-
11	R78069	3	Elec. Connector Cavity Plug	-
11	57M8019	1	Elec. Connector Terminal	-
11	57M10622	1	Elec. Connector Accessory	-
11	57M7626	1	Elec. Connector Terminal	-
11	57M7546	3	Elec. Connector Terminal	Cavity A, B, C
11	57M8018	1	Electrical Connector Assy	Crop Divider Harness
12	57M7626	1	Elec. Connector Terminal	Height Sensor Harness
12	N282069	3	Elec. Connector Terminal	Cavity A, B, C
12	57M12806	1	Elec. Connector Accessory	-
12	57M7676	1	Elec. Connector Terminal	-
12	R78069	3	Elec. Connector Cavity Plug	-
12	57M8018	3	Electrical Connector Assy	-
13	RE12364	1	Electrical Connector Assy	Front Harness Connector to Light Extension Harness
13	R78060	3	Elec. Connector Terminal	Cavity A, B, C
13	57M9216	3	Elec. Connector Seal	Cavity A, B, C
13	R78054	1	Electrical Connector Assy	-
13	R78064	3	Elec. Connector Cavity Plug	-
14	AA74210	1	Wiring Harness	A5-4 Front Control Unit 4
15	AXT18930	1	Wiring Harness	Front Frame Harness SUB FOR AXT15461

Front Frame Harness (6 of 6) (190003 - )
