Открытый узел

Engine Cooling Harness ( - 171299)

Engine Cooling Harness ( - 171299)

Engine Cooling Harness ( - 171299)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

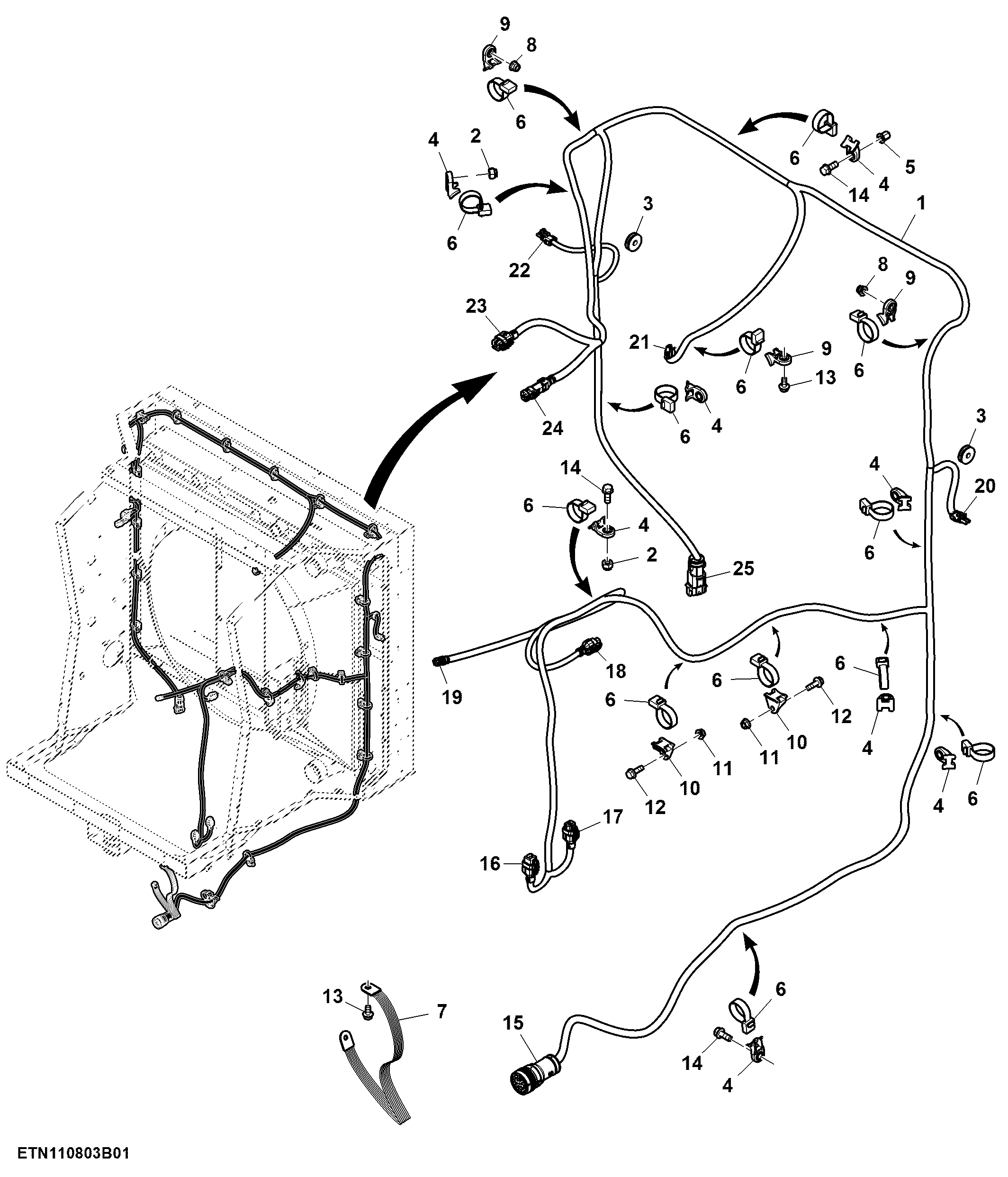

Engine Cooling Harness ( - 171299)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXT10668	1	Wiring Harness	-
2	T11234	4	Lock Nut	-
3	R41440	2	Grommet	-
4	N380408	18	Clamp	-
5	T164467	5	Nut	-
6	H224073	23	Tie Band	-
7	AT180705	1	Ground Cable	-
8	14M7396	2	Lock Nut	M8
9	H224072	3	Clamp	-
10	H226339	2	Clamp	-
11	14M7298	2	Flange Nut	M8
12	19M7867	2	Screw	M8 X 25
13	19M7865	3	Screw	M8 X 16
14	N10214	6	Self-Locking Screw	-
15	57M7546	6	Elec. Connector Terminal	-
15	57M10485	1	Elec. Connector Accessory	-
15	R78069	5	Elec. Connector Cavity Plug	-
15	57M9526	4	Elec. Connector Terminal	-
15	57M8569	4	Elec. Connector Terminal	-
15	57M8537	3	Elec. Connector Terminal	-
15	57M10735	1	Elec. Connector Housing	Engine Harness
16	57M9751	1	Elec. Connector Housing	Aftertreatment Inlet NOx Sensor
16	57M10321	3	Elec. Connector Terminal	-
16	57M9808	2	Elec. Connector Terminal	-
16	57M9814	1	Elec. Connector Cavity Plug	-
16	57M9841	1	Elec. Connector Accessory	-
17	57M9817	1	Elec. Connector Housing	Particulate Filter Temperature Sensor Assembly
17	57M10321	4	Elec. Connector Terminal	-
17	57M9840	1	Elec. Connector Accessory	-
18	57M9780	1	Elec. Connector Housing	DPF Differential Pressure Sensor
18	57M9838	1	Elec. Connector Accessory	-
18	57M9807	3	Elec. Connector Terminal	-
19	57M10315	1	Elec. Connector Housing	SCR Dosing Control Valve
19	57M9832	2	Elec. Connector Terminal	-
19	57M9149	2	Elec. Connector Seal	-
20	RE12363	1	Electrical Connector Assy	Left Side Field Light
20	R78060	2	Elec. Connector Terminal	-
20	57M9218	2	Elec. Connector Seal	-
21	57M10770	2	Elec. Connector Terminal	-
21	57M7289	1	Elec.Connect Locking Device	-
21	57M9215	2	Elec. Connector Seal	-
21	57M7254	1	Elec. Connector Housing	Coolant Level Switch
22	RE12363	1	Electrical Connector Assy	Right Side Field Light
22	R78060	2	Elec. Connector Terminal	-
22	57M9218	2	Elec. Connector Seal	-
23	57M9751	1	Elec. Connector Housing	Aftertreatment Outlet NOx Sensor
23	57M9841	1	Elec. Connector Accessory	-
23	57M9814	2	Elec. Connector Cavity Plug	-
23	57M9808	2	Elec. Connector Terminal	-
23	57M10321	2	Elec. Connector Terminal	-
24	57M9776	1	Elec. Connector Housing	AT CAN Terminator
24	57M9813	2	Elec. Connector Terminal	-
24	57M9837	1	Elec. Connector Accessory	-
24	57M11134	1	Elec. Connector Housing	-
25	57M7631	1	Elec. Connector Housing	Main Frame Harness
25	57M9525	6	Elec. Connector Terminal	-
25	R78069	2	Elec. Connector Cavity Plug	-
25	57M7680	1	Elec. Connector Terminal	-
25	57M10903	1	Elec. Connector Accessory	-
