Elevator Drive Motors and Lines, Variable Speed

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	X12-16F5OX-S	2	Adapter Fitting	-
2	X16R6X-S	1	Tee Fitting	-
3	R26906	4	O-Ring	-
4	12H303	4	Lock Washer	5/16"
5	12H304	4	Lock Washer	3/8"
6	19H1648	4	Cap Screw	3/8" X 3/4"
7	N10216	4	Self-Locking Screw	6.350 X 19.050 mm (1/4" X 3/4")
8	19H2473	8	Cap Screw	1/2" X 1-3/4"
9	19H2664	4	Cap Screw	5/16" X 3/4"
10	24H1652	4	Washer	13/32" X 11/16" X 7/64"
11	U12547	1	O-Ring	-
12	X12R6X-S	1	Tee Fitting	-
13	AXT12818	1	Cover	-
14	AXT19166	2	Hydraulic Motor	SUB FOR AXT17301
14	AXT13787	2	Hydraulic Motor	SUB FOR CB11480557
15	X12-10F5OX-S	4	Adapter Fitting	-
16	X39T3-12-12	2	Elbow Fitting	-
17	BP12214	8	Lock Nut	-
18	0881343063	1	Hydraulic Hose	LGTH = 1168.4 mm, Elevator Drive Motors to Valve
19	CB11438789	1	Hydraulic Hose	LGTH = 1409.7 mm, Elevator Drive Motors to Valve
20	R27175	1	Drain Plug	-
21	PMH2360	1	Adapter Fitting	-
22	0883001430	1	Hydraulic Hose	LGTH = 1523 mm, Hydraulic Actuated Control Valve Line
23	0883004018	1	Hydraulic Hose	LGTH = 1844 mm, Hydraulic Actuated Control Valve to Elevator Drive Motor
24	0881347265	1	Hydraulic Hose	LGTH = 840 mm, Hydraulic Actuated Control Valve Line
25	0881342465	1	Hydraulic Hose	LGTH = 650 mm, Hydraulic Actuated Control Valve to Elevator Drive Motor
26	CB11467754	1	Hyd Actuated Control Valve	-
27	AT48506	1	Elbow Fitting	-
28	11M7092	2	Cotter Pin	3.200 X 40 mm

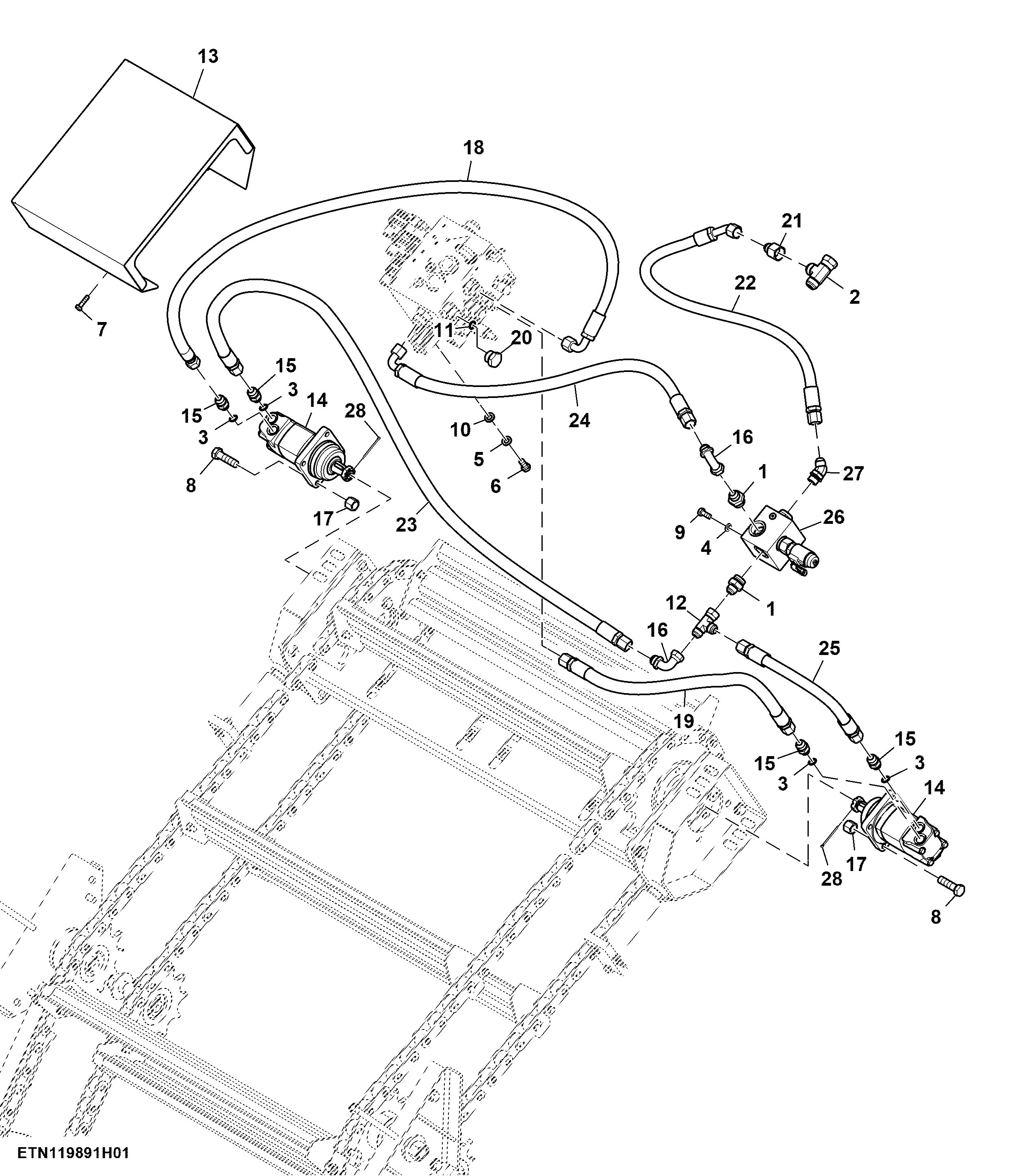

Elevator Drive Motors and Lines, Variable Speed

Нет текстового описания
